Descripción
Specifications / Additional Information
VFD-3P-380-40HP-60A-DCM-N3R-MOD1 Variable Frequency Device | Features/Ratings |
Unit Type: 3 Phase Delta, 3 Wire Variable Frequency Device | Automatic Voltage Regulation |
Dimensions: 36.00" x 24.00" x 12.00" | LED Display |
Weight: 76.13 lb | 3 Phase Delta, 3-Wire Configuration |
Input/Output Voltage: 380V (350-415V) AC 3PH | NEMA 3R Rated Steel Panel Enclosure |
Output Current: 60 Amps | |
Operating Frequency: 0 to 3000 Hz | |
Kilowatts: 30kw | |
HP: 40 | |
Starting Torque: 1 Hz/150% | |
Carrier Frequency: 1.0-16kHz, auto adjusted according to temperature and load | |
Frequency Accuracy: Digital setting: 0.01Hz, Analog Setting: Max frequency X 0.05% | |
Torque boost: Automatic torque boost; manual torque boost: 0.1%~30.0% | |
V/f curve: Linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) | |
Inputs: 7 on-off programmable digital, 1 high-speed pulse, 2 programmable analog (AI1: 0~10V or 0/4~20mA A12: 0~10V or 0/4~20mA) | |
Outputs: 1 programmable open collector, 1 analog (open collector or high-speed pulse), 2 relay, 2 analog (0/4~20mA or 0~10V) | |
Analog Input/Output: 2 Input (0~10V or 0/4~20mA), 2 Output (0/4~20mA or 0~10V) | |
Communication Terminal: RS485 communication interface, support MODBUS-RTU communication protocol | |
Overload: 150% @ 60s, 180% @ 10s, 200% @ 3s | |
Operating Temp: –10°C to +40°C | |
Max Operating Humidity: 90% (non condensing) | |
Materials: - | |
Mounting: Surface | |
Color: Gray | |

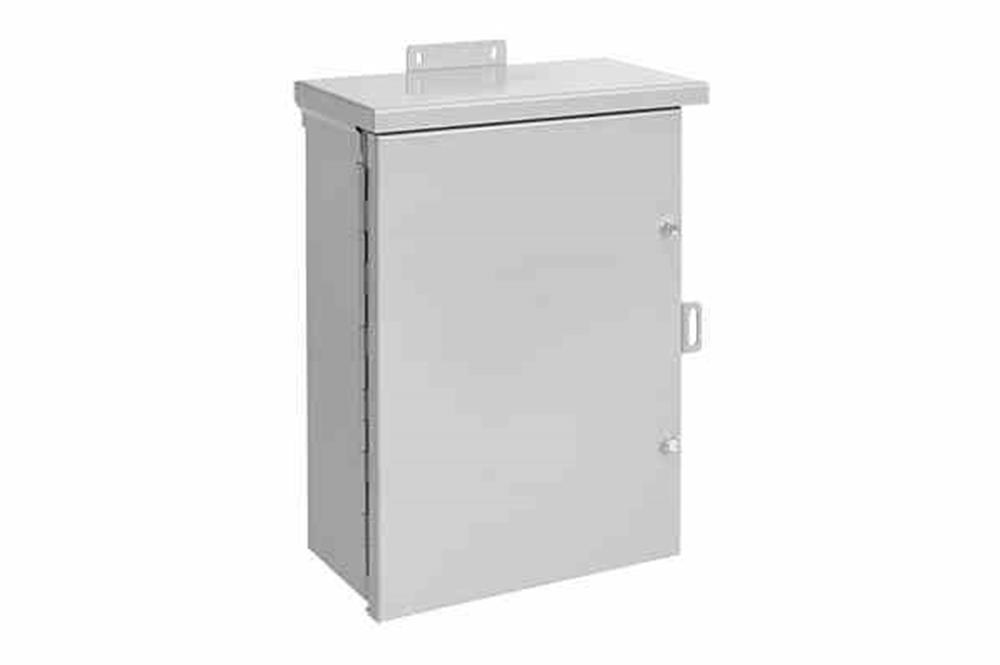

The VFD-3P-380-40HP-60A-DCM-N3R-MOD1 from Larson Electronics is a 3 Phase, 3-Wire Configuration Variable Frequency Drive that is suitable for improving AC motor performance in industrial operations. This fan-cooled unit features a three-phase 380V AC input/output voltage comparability. Designed for steady speed error, fast torque rise and protection from resonance vibrations, the device provides an output current of 60 amps and an operating frequency range of 0 to 3000 Hz with 40 horsepower. The VFD-3P-380-40HP-60A-DCM-N3R-MOD1 variable frequency drive (including VFD controls) is contained within a steel panel that is rated NEMA 3R. A cooling fan is also installed inside the panel to maintain correct airflow and circulation to the unit. The VFD-3P-380-40HP-60A-DCM-N3R-MOD1 offers accurate AC motor control in industrial facilities. This 30kw unit is compatible with three-phase nominal 380V (within the rang of 350-415V) AC input/output voltage, provides an output current of 60 amps and an operating frequency range of 0 to 3000 Hz. This device supports seven on-off programmable digital inputs, one high-speed pulse input and two programmable analog inputs, as well as one programmable open collector output, one analog output (open collector or high-speed pulse), two relay outputs and two analog outputs. The device also features a total of four operating modes: Keypad control, Terminal control, Serial communication control, and Frequency Setting Mode for digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. The VFD-3P-380-40HP-60A-DCM-N3R-MOD1 is designed for indoor applications and operating temperatures ranging between –10°C to +40°C. Operators may mount the variable frequency drive on compatible surfaces. This device measures 36.00" x 24.00" x 12.00" and weighs approximately 76.13 lb. Mounting: The entire VFD-3P-380-40HP-60A-DCM-N3R-MOD1 variable frequency drive is completely contained within a NEMA 3R rated steel panel. This 16 gauge steel panel enclosure features a drip on top and seam-free sides to protect against rain, snow, sleet, and other precipitation. The NEMA 3R panel also includes a hasp and staple for padlocking. The VFD-3P-380-40HP-60A-DCM-N3R-MOD1 also includes a cooling fan mounted inside the panel to maintain correct airflow to the unit. Applications: Speed control of AC motors, industrial machines, large compressors, energy savings and more.  |
