2014 Ford F-150 No-Drill Antenna Mounting Bracket - (4) 3/4" Holes - 3rd Brake Light Mount

LARSON ELECTRONICSSKU: PL3-VMP-AM-V3-F150-2014
filler

Precio:
Precio de venta$674.00

Descripción

Specifications / Additional Information

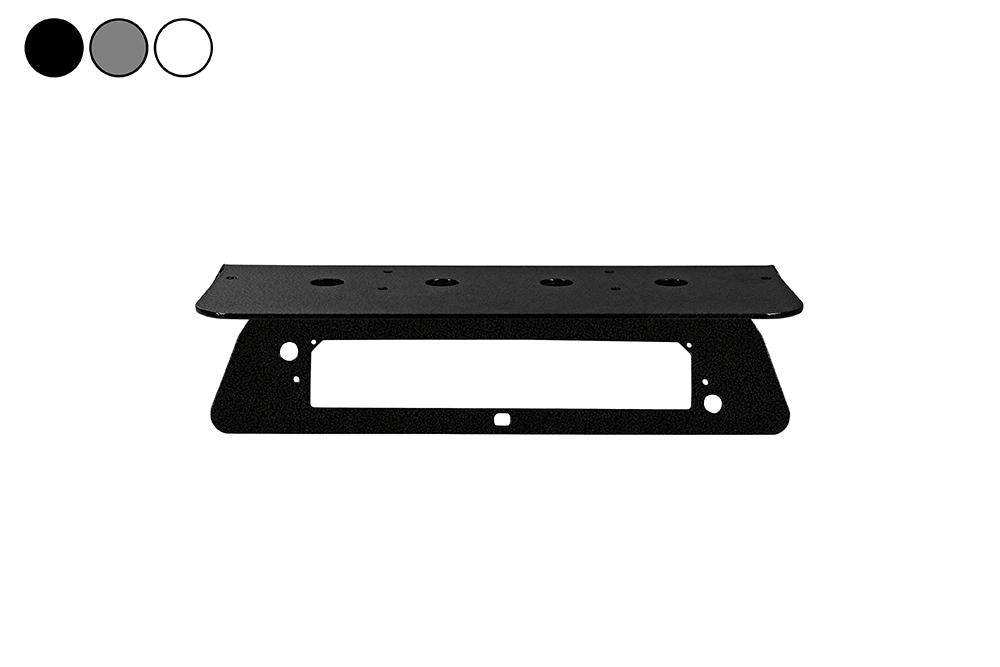

VMP-AM-V3-F150-2014-1500 Permanent Mounting Plate for Antennas Ratings/Features:
Type: Permanent Antenna Mounting Plate Made in the USA
Compatible Truck Models: 2014 Ford F-150 Standard body trucks with Incandescent 3rd brake light CNC Machined for Precision Fitment
Compatible 3rd Brake Light: Incandescent Aluminum Bracket w/ Pre-Drilled Thru-Holes
Unit Weight: 5 lbs No Modifications Required - OEM Fitment
Unit Dimensions: 14.53"W x 5.19"D x 3.74"H Works with Any 3/4" Mount Antenna
Bracket Height Above Cab: 1.5" Durable Construction
Bracket Hole Size: 3/4" Aerodynamic Engineered for Highway Speeds
Bracket Hole Qty: 4 No Rattle or Whistle While Driving
Weight Capacity: 15 lbs Car-wash Safe - Includes Weatherproof Seal
Wind-load: Highway speeds 3/4" NMO Mount Compatible
Frame Material: Aluminum
Bracket Material: Aluminum
Finish: Powder Coated
Color: White, Grey, or Black
Compatible Equipment: 3/4" Thru-Hole Mount Equipment of up to 15 lbs
Installation: Via 3rd Brake Light (Rear Cab Light) - hardware included
Weatherproof Seal: Foam Gasket Between Vehicle & Bracket
Shipping Weight: 10 lbs
Shipping Dimensions: 20"L x 10"W x 10"H
*PLEASE NOTE: BEFORE CALLING TO ORDER, YOU WILL NEED TO KNOW YOUR VEHICLE'S YEAR, MAKE, MODEL, TRIM PACKAGE, AND IF YOUR VEHICLE HAS AN INCANDESCENT OR LED THIRD BRAKE LIGHT. THERE IS NOTHING WE CAN LOOK UP TO HELP YOU DETERMINE THIS. YOU NEED TO LOOK AT THE LIGHT AND SEE IF THERE ARE LITTLE ROUND BULBS (INCANDESCENT) OR LITTLE SQUARE LED CHIPS. WE CANNOT FINISH YOUR ORDER WITHOUT THIS INFORMATION. VERIFY LAMP TYPE BEFORE CALLING.* Images and graphics displayed in the body of this description are for example purposes only and may not directly reflect the equipment found on your truck. As each vehicle has slightly different equipment, these images were designed for illustration purposes only to display the functionality of the product. They do not represent all models of plates, hole designs, and form factors for the vehicle mounting plates offered by Larson Electronics. Please review the product high res images, instruction manual, and dimensional drawing for accurate description of what you are buying. ALWAYS confirm the Year, Make, Model, Trim, lamp type, and if you have a bed camera prior to ordering.
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); } function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); } function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); } function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in Texas Increase your vehicle functionality and reduce rooftop damage to your truck by easily installing our VMP-AM-F150-2014 lightweight third brake light antenna mounting plate. The rooftop antenna mounting plate requires absolutely no drilling to install while supporting antenna arrays of up to 15 lbs. This mounting bracket attaches to the third brake light OEM location making it the perfect choice for the 2014 Ford F-150 Standard body trucks with Incandescent 3rd brake light. This VMP-AM-F150-2014 features an aluminum bracket with  (4) pre-drilled 3/4" for installing antennas. The lightweight aluminum mounting plate is compatible with the 2014 Ford F-150 Standard body trucks with Incandescent 3rd brake light, offering operators and fleet vehicles a convenient mounting location for CB, HAM, VHF, UHF, NMO mount, and land-mobile antenna equipment. *PLEASE NOTE: BEFORE CALLING TO ORDER, YOU WILL NEED TO KNOW YOUR VEHICLE'S YEAR, MAKE, MODEL, TRIM PACKAGE, AND IF YOUR VEHICLE HAS AN INCANDESCENT OR LED THIRD BRAKE LIGHT. THERE IS NOTHING WE CAN LOOK UP TO HELP YOU DETERMINE THIS. YOU NEED TO LOOK AT THE LIGHT AND SEE IF THERE ARE LITTLE ROUND BULBS (INCANDESCENT) OR LITTLE SQUARE LED CHIPS. WE CANNOT FINISH YOUR ORDER WITHOUT THIS INFORMATION. VERIFY LAMP TYPE BEFORE CALLING.* The VMP-AM-F150-2014 is constructed and engineered in Texas (Made USA) from CNC precision cut aluminum. This mounting plate is especially designed for the 2014 Ford F-150 Standard body trucks with Incandescent 3rd brake light. The lightweight aluminum plate offers operators a sturdy and reliable platform to deploy thru-hole mounted antennas, up to 15 lbs., on the top of their truck for optimal performance. The VMP-AM-F150-2014 is installed via the rear cab lights, has a weatherproof seal on the back side for a secure and dry installation that helps protect against scratches to the body of the truck. The mounting plate requires absolutely no drilling for installation, and the CNC manufacturing process provides perfect fitments like OEM products. The aerodynamic design of the VMP-AM-F150-2014 is engineered to support wind-loads seen at highway speeds. This rooftop mount is powder coated for added durability, car-wash safe, and offered in a black, white, or grey finish. This antenna mounting plate is designed for 3/4" thru-holes and is compatible with 3/4" NMO mounts. Please note: the plate is 1/8" thick and a "thick" NMO mount may be required depending on the thickness accepted by the antenna mounting stud. The VMP-AM-F150-2014 is equipped with (4) pre-drilled 3/4" hole(s). Please verify your equipment AND vehicle before ordering.
Click image to Enlarge Click image to Enlarge
The VMP-AM series of vehicle antenna mounting plates from Larson Electronics features an aluminum inverted "L bracket" style mount. The aluminum bracket is mounted to the truck using the 3rd brake light to secure it to the vehicle. Due to both aesthetics and aerodynamics, newer trucks have a rounded design and contours or "grooves" on the roof. This can reduce the surface area for magnetically securing equipment to the top of the vehicle. Magnetic mounts are not perfect and can still lose magnetic grip and fall off, even when properly installed. The use of the VMP-AM-F150-2014 mounting bracket resolves all of these issues.
Features: Absolutely NO drilling to install, functional for fleet vehicles, attaches to third brake light OEM location, weatherproof gasket, car-wash safe, lightweight aluminum structure pre-drilled holes for permanent installed antennas, powder coated, comes in different colors, supports up to a 15 lb. equipment, and safe for highway speeds. The VMP-AM-F150-2014 eliminates damage to your truck caused by rust, scratches, exposed wires, leaks, drilling holes and doesn't lower the resell value of your vehicle. The NO drill feature is great for leased trucks, eliminating rooftop damage with penalties associated with making modifications to the vehicle. This rooftop antenna plate does not require any drilling to install.
Color Options
White Grey Black
*PLEASE NOTE: BEFORE CALLING TO ORDER, YOU WILL NEED TO KNOW YOUR VEHICLE'S YEAR, MAKE, MODEL, TRIM PACKAGE, AND IF YOUR VEHICLE HAS AN INCANDESCENT OR LED THIRD BRAKE LIGHT. THERE IS NOTHING WE CAN LOOK UP TO HELP YOU DETERMINE THIS. YOU NEED TO LOOK AT THE LIGHT AND SEE IF THERE ARE LITTLE ROUND BULBS (INCANDESCENT) OR LITTLE SQUARE LED CHIPS. WE CANNOT FINISH YOUR ORDER WITHOUT THIS INFORMATION. VERIFY LAMP TYPE BEFORE CALLING.*
Installation: The VMP-AM-F150-2014 is easy to install and requires absolutely NO drilling. This mounting plate installs through the 3rd brake light on 2014 Ford F-150 Standard body trucks with Incandescent 3rd brake light lights, between the body of the truck cab and the light. Operators simply remove their 3rd brake light, position the pre-cut mounting bracket and reinstall the light through the bracket with new mounting hardware included with purchase. Wiring can be ran into the cab of the truck by cutting a slit on the bottom side of the gasket and inserting cable into the cab. The installation kit includes two toggle bolts and longer mounting bolts for the 3rd brake light. The toggle bolts are required to secure the mount to the vehicle body. The longer bolts are intended to replace the factory installed mounting bolts to account for the addition of the mounting bracket and gasket that is being installed between the cab and the light. When installed properly, there is no vibration or rattling of the mount when the vehicle is in use. The toggle bolts support the extra weight and secure the mount to the vehicle. The aerodynamic design of the front of the mount prevents any associated whistling or added road noise that may be seen with other mounting brackets.
3rd Brake Light Camera Option: Having a bed camera in the third 3rd brake light (NOT in the tailgate or bumper) will change the mounting bracket design. This bed camera is commonly referred to as "high mount camera" or "cargo camera." The view of this camera shows the contents of the truck bed. This IS NOT the reverse camera that is located in the tailgate that shows behind the vehicle. Those with a high mount bed camera with 3rd brake light must choose the "camera" option in order to get the correct design. Please choose the appropriate option below. The images to the right show the physical difference between models not equipped with camera (top right) and models equipped with camera (bottom right). The image below displays the viewing area that this camera will display on the in-dash screen.
Without Camera
With Camera
*Please note that VMP-AM-F150-2014 is designed for trucks with Incandescent 3rd brake lights ONLY. Operators with %OLamp% 3rd brake lights will require the %OLAMP% model. Incandescent mounting plates and LED mounting plates are NOT interchangeable.*
Incandescent lights have a reflector and replaceable bulb behind the lens. LED Lights have "squares" behind the lens and no replaceable bulb.
Applications: This vehicle antenna mounting plate is used permanently mount thru-hole antennas to the highest point of the truck (truck cab) without drilling holes into the truck. Compatible antennas include but are not limited to: NMO Mount antennas, mobile antennas, VHF antennas, UHF antennas, 3G antennas, 4G antennas, LTE antennas, GPS antennas, HAM radio antennas, CB radio antennas, mobile radio antennas, dipole antennas, GMRS antennas, scanner radio antennas, and wide band antennas. Common applications include police, military, emergency services (EMS), fire fighters, security, search and rescue, farming operations, utility companies, lease vehicles, and any other applications for which roof mounted antenna(s) is needed for the 2014 Ford F-150 truck owners.
*PLEASE NOTE: BEFORE CALLING TO ORDER, YOU WILL NEED TO KNOW YOUR VEHICLE'S YEAR, MAKE, MODEL, TRIM PACKAGE, AND IF YOUR VEHICLE HAS AN INCANDESCENT OR LED THIRD BRAKE LIGHT. THERE IS NOTHING WE CAN LOOK UP TO HELP YOU DETERMINE THIS. YOU NEED TO LOOK AT THE LIGHT AND SEE IF THERE ARE LITTLE ROUND BULBS (INCANDESCENT) OR LITTLE SQUARE LED CHIPS. WE CANNOT FINISH YOUR ORDER WITHOUT THIS INFORMATION. VERIFY LAMP TYPE BEFORE CALLING.* Additional Models: The VMP-AM-F150-2014 is designed for permanent mounting of (4) additional antenna with a 4 thru-hole mount. We do offer additional sizes and form factors. For a full line of compatible mounting plates compatible with your vehicle, please visit the link below. Choose Year, Make, Model, and Trim to see all the designs from Larson Electronics that is compatible with the 2014 Ford F-150 truck. Images and graphics displayed in the body of this description are for example purposes only and may not directly reflect the equipment found on your truck. As each vehicle has slightly different equipment, these images were designed for illustration purposes only to display the functionality of the product. They do not represent all models of plates, hole designs, and form factors for the vehicle mounting plates offered by Larson Electronics. Please review the product high res images, instruction manual, and dimensional drawing for accurate description of what you are buying. ALWAYS confirm the Year, Make, Model, Trim, lamp type, and if you have a bed camera prior to ordering.
