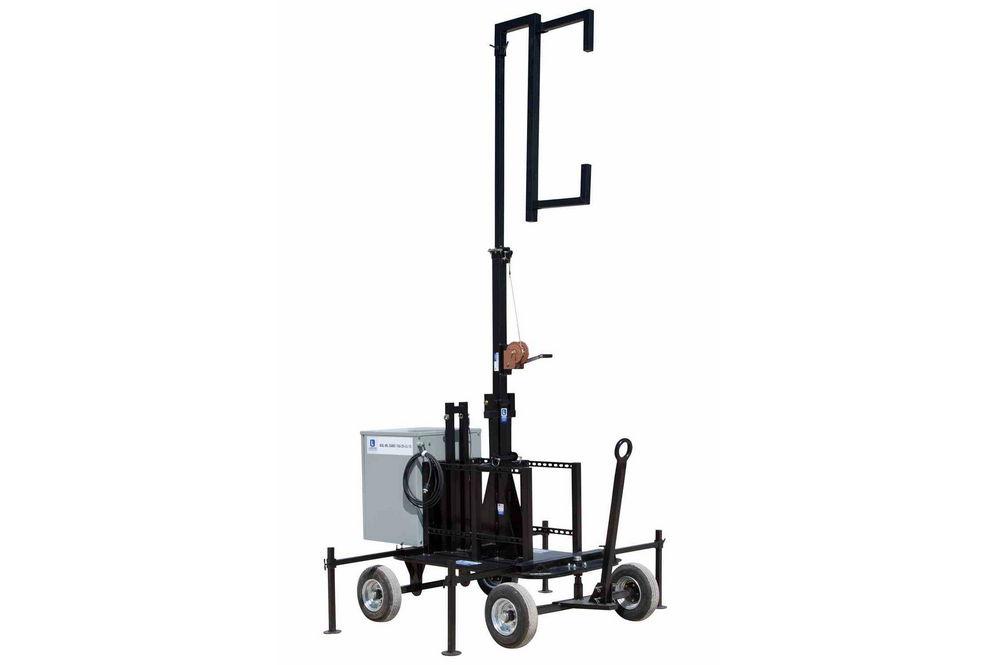

Crank Up Mini Antenna Tower - Wheeled Cart Base - 7'-13' Mast - Mount Antennas - 25' 16/3 SOOW

Crank Up Mini Antenna Tower - Wheeled Cart Base - 7'-13' Mast - Mount Antennas - 25' 16/3 SOOW

Sold by: LARSON ELECTRONICS

$19,872.00 CAD
$19,872.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
WAL-ML-SAWC-15U-25-L5.15 Rolling Antenna Cart Quick Summary
Dimensions: 75.58"L x 50.26"W Easy to Transport
Mounting: Adjustable 7 to 13 Foot Wheeled Tower w/ Picking Eyes Vertical Antenna Adjustability
Materials: Steel Tower Assembly
Enclosure: 15U NEMA 3R Enclosure
Wiring: 25` 16/3 SOOW Cord w/ L5-15P Cord Cap
Antenna Mounts: (2) Adjustable Mounts for Wideband Antennas
Amp Mounts: (2) H-Brackets Allowing Up to (4) Amps to Be Mounted
Cable Storage: (2) Cable Mounts
Hitch: Pintle Hitch
Finish: Powder Coated - Black
' Product Overview '
Made in the USA The WAL-ML-SAWC-15U-25-L5.15 from Larson Electronics is an ideal solution for the mounting and convenient transportation of telecommunications equipment to provide cell phone coverage at large venues and arenas. This portable cell on wheels can hold up to two antennas on the masthead and four amplifiers on the cart frame. The wheeled base features 4-corner pick eyes, as well as, a removable light mast for easy storage and transportation. The WAL-ML-SAWC-15U-25-L5.15 is adjustable between 7 and 13 feet in height and the front axle has a nearly 360° pivot point allowing it to make tight turns with ease. This unit is easy to maneuver over rocks and gravel and can easily roll over electrical cable while the pintle hitch makes it able to be towed by golf carts or ATVs. The WAL-ML-SAWC-15U-25-L5.15 is also equipped with a 15U NEMA 3R enclosure for storing and holding equipment while protecting it from the elements as well as 25` of 16/3 SOOW cable terminated in a L5-15P cprd cap. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The WAL-ML-SAWC-15U-25-L5.15 is a portable and versatile mini antenna tower perfect for providing improved cell coverage within stadiums, arenas, and other large venues. It is equipped with a strong and durable adjustable masthead with the ability to be removed and stored for easy transportation and use within tight spaces. This light mast provides operators with a portable and easily deployed system to provide large scale coverage. This mini antenna tower is equipped with 25` of 16/3 SOOW cable that is terminated in a L5-15P cord cap. This 2-pole, 3-wire industrial grade locking cord cap is rated for 125 volts and 15 amps.
15U NEMA 3R enclosure
The WAL-ML-SAWC-15U-25-L5.15 features a mast head that is adjustable from 7 feet to 13 feet. It is small enough to fit through standard venue doorways at the lowest height and is tall enough to provide ample coverage at the maximum height. The rolling antenna tower can hold up to two user-provided antennas on the masthead and four user-provided amplifiers on the cart base. The cart base is also designed to store rolled up cable and other equipment during transportation. In addition, the WAL-ML-SAWC-15U-25-L5.15 features a 15U NEMA 3R enclosure that can be used to storing and holding electrical equipment and other gear. The enclosure is lockable for security and offers a degree of protection from access to hazardous parts, the ingress of foreign objects such as dirt and a degree of protection from the elements such as rain or sleet. Four retractable outriggers provide the unit with great stability. This rolling antenna cart is designed to be extremely easy to move, transport, and maneuver both by small vehicles such as a golf cart as well as by hand and crane. The unit is equipped with a pintle hitch and the large tires allow it to easily conquer terrain including rocky ground and gravel as well as easily roll over electrical cables in the field. The front axle as a pivot point that is nearly 360° which makes tight turns easy to make. The WAL-ML-SAWC-15U-25-L5.15 has a low center of gravity even when fully loaded to make it simple for anyone to reposition or move by hand. The cart also features 4-corner pick eyes for easy transportation between job sites. The tower is constructed of heavy gauge steel for durability, and a tough powder coat black finish provides protection against rust and corrosion. Antenna heads mounted to the unit are able to pivot vertically. This Larson Electronics rolling antenna cart allows operators to position the masthead in any of four directions adding to the versatility of the unit. Customers provide their own antenna heads, amplifiers, and wiring (aside from the included 25` 16/3 SOOW cord and L5-15P cord cap) to be used with the WAL-ML-SAWC-15U-25-L5.15. Suggested Applications: Increased cellular network coverage at large venues and arenas including concerts, sporting events such as baseball, hockey, basketball, or football games and any other event expecting large crowds.
