1000W Metal Halide Winchpod Light Tower - 7'-14' Adjustable Height - 110,000 Lumens - Wet Area Use

LARSON ELECTRONICSSKU: PL3-WAL-QP-1X1000W-MHFL
filler

Precio:
Precio de venta$5,748.00

Descripción

Specifications / Additional Information
WAL-QP-1X1000W-MHFL Metal Halide Light Tower Ratings
Lamp Type: Metal Halide UL Rated for Wet Area Use
Lamp Dimensions: 10 1/4" x  29" x  23 3/4" UL Rated for Ground Mounting Within 4` of Ground
Quadpod Tower Height: 7` to 14` Adjustable
Voltage: 120-277V AC or 480V
Watts: 1,000
Lumens: 110,000
Lumens Per Watt: 102
Lighting Configuration: Flood Pattern
Materials: Die Cast Aluminum
Mounting: Steel Square Tube Quadpod w/ (2) Wheels
Wiring
1. Connect black fixture lead to the (+) LINE supply lead.
2. Connect white fixture lead to the (-) COMMON supply lead.
3. Connect ground wire from fixture to supply ground.
' Product Overview '

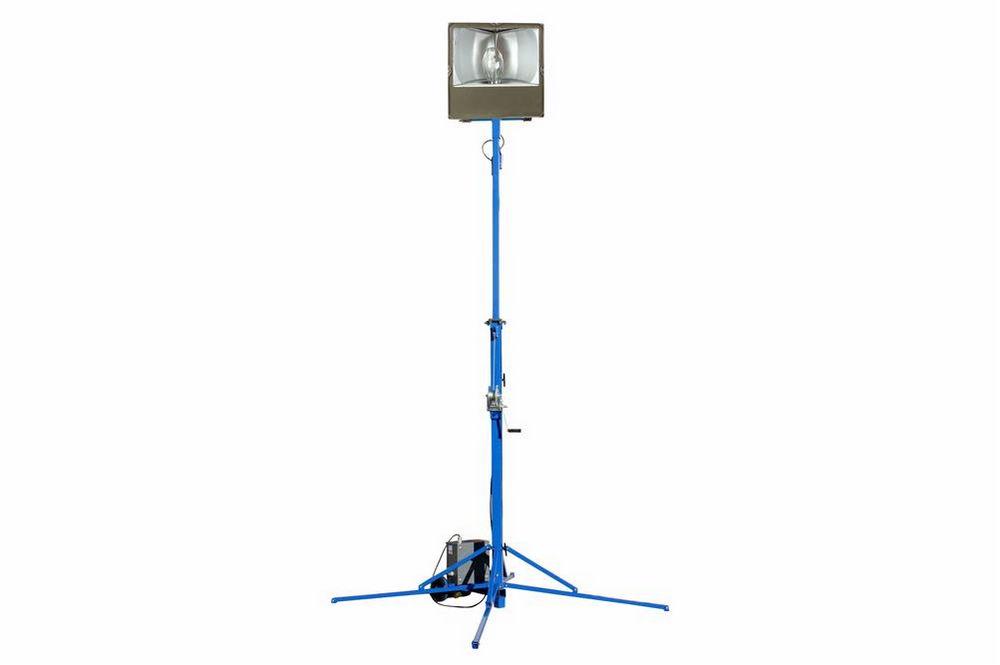

The Larson Electronics WAL-QP-1X1000W-MHFL Metal Halide Winchpod Light Tower offers intense and portable illumination for industrial projects. Mounted on an adjustable winchpod, the 1,000-watt metal halide light head can be raised to 14 feet and lowered to 7 feet during use. This unit is constructed of die cast aluminum and is suitable for wet areas. The WAL-QP-1X1000W-MHFL is a portable winchpod lighting solution for temporary work sites. This 1,000-watt light tower offers 110,000 lumens of output with a flood-beam configuration for wide-area illumination. For elevated positioning, the winchpod can be extended up to 14 feet and retracted to 7 feet. Suitable for wet areas, two solid wheels at the base of the tower ensures seamless transportation around the facility.

The ballast contained within this fixture is multi-tap and allows operation with current of 120, 208, 240, and 277 volts with 480V and 220V options also available. A thermal, tempered, shock resistant, 5/32" thick glass door and heavy duty silicone gasket protects the metal halide lamp from outdoor elements. The door is held captive to the fixture for convenience and safety and the door frame is constructed of die cast aluminum. The lamp housing is constructed of die cast aluminum and features an anodized aluminum reflector, captive held lamp door, separate ballast compartment, stainless steel hardware and an attractive polyester powder coat finish. This lamp is ideal for use in locations where operators need expansive and powerful illumination yet want fixtures that will help to retain a degree of attractive appearance.
Winchpod Tower: This portable metal halide light tower is comprised of a removable light assembly fitted with one metal halide lamp mounted atop a four leg tripod fabricated from heavy duty steel. This adjustable and collapsible quadpod pod can be extended to fourteen feet and collapsed to seven feet and is locked into position with t-handle locking pins. The unit is extended and lowered using an included hand crank cable winch equipped with a brake for fast and safe deployment. Included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamps can be easily adjusted up, down or from side to side independently of each other and locked into position for maximum coverage of the work area. Note: Use only lamps specified on nameplate. Bulb not included with fixture. Observe lamp manufacturer€™s recommendations and restrictions on lamp operation, particularly ballast type, burning position, etc. Applications: Remote work locations, wide-area illumination, construction sites, military bases, camping sites, outdoor events, security applications, emergency services, outdoor lighting, portable lighting and more.
