PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

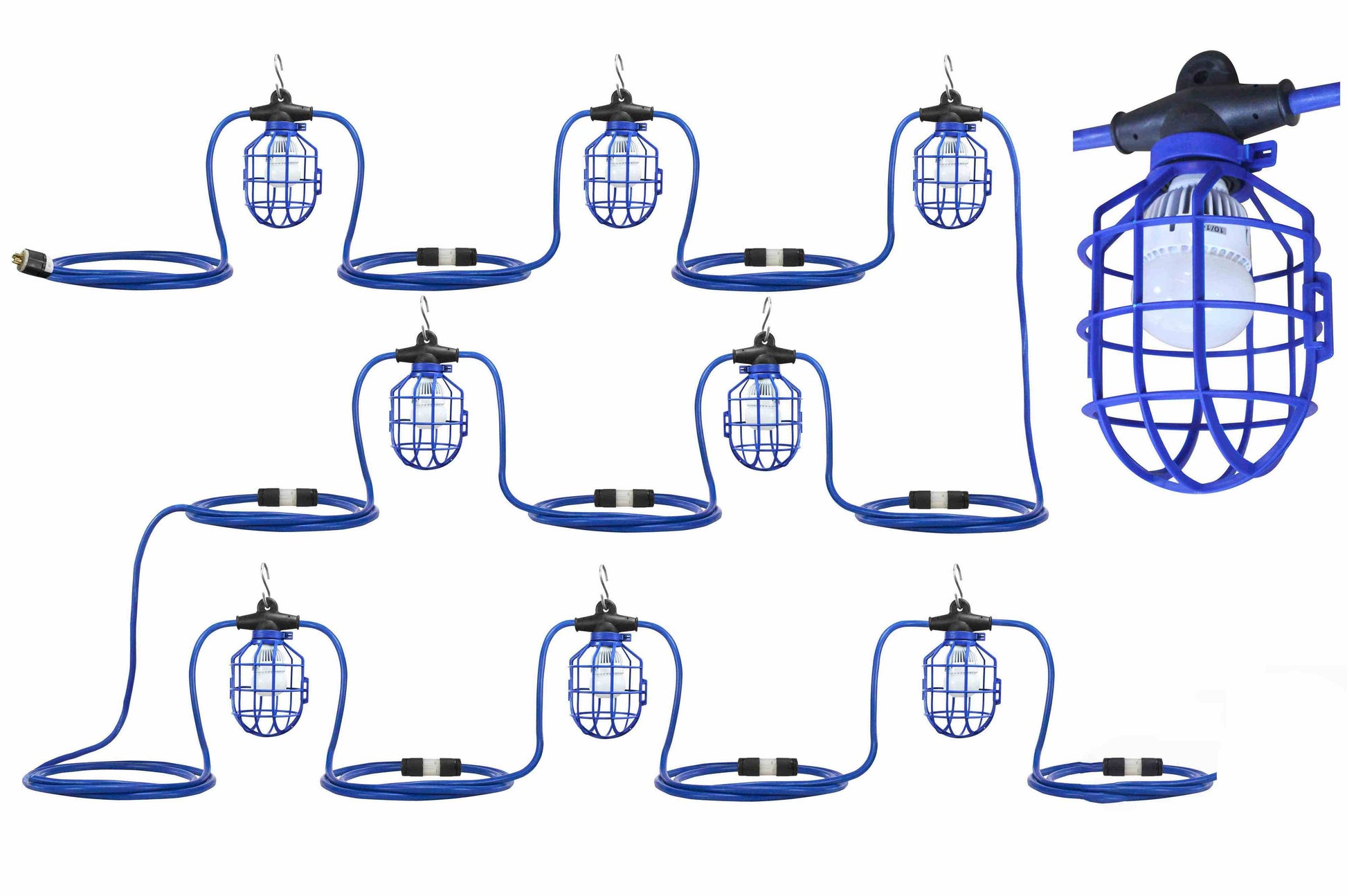

The Larson Electronics WAL-SL-10-LED-12.3-QDC-TLP Work Area Lighting LED String Light is designed for high output illumination and daisy chain connections across the job site. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power.
This work area string light consists of ten industrial grade LED lamps with 10 feet of 12/3 SJTW cable between each unit. The WAL-SL-10-LED-12.3-QDC-TLP string light unit is also equipped with twist lock connectors between each lamp which offers operators a high degree of versatility. This temporary LED string light is connected to power via an integrated 3 foot cable terminated with a NEMA L5-15 or L6-15 configuration twist lock plug and outlet. Each globe light is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard. This string light is listed for use in the United States and Canada and approved for indoor or outdoor use including wet or damp environments.
Ten high output A19 style LED lamps producing 1050 lumens per lamp provide a total of 10,500 lumens of bright white illumination. Each lamp housing is constructed from light weight aluminum, and fitted with an impact and shatter resistant polycarbonate diffuser. These LED light bulbs provide additional safety measures and time savings, given the low heat production and that it does not require replacing for 50,000 hours. Since the LED bulb uses solid state technology, the vibration (dropping, etc.) that degrades conventional incandescent bulbs is not an issue with these LED bulbs.
Versatility:
The WAL-SL-10-LED-12.3-QDC-TLP is an incredibly versatile lighting solution for work areas and job sites with different illumination requirements. Featuring twist lock connectors between each lamp on the string, the WAL-SL-10-LED-12.3-QDC-TLP allows operators to adjust this LED string light to the perfect length for changing lighting needs. Operators can remove lamps to shorten the overall length and even add additional units for situations that call for a longer string light solution. Having the ability to customize the length for varying needs makes the WAL-SL-10-LED-12.3-QDC-TLP work area LED string light unit an extremely versatile and adaptable LED lighting solution.
100 Watt Incandescent Bulb
10 Watt LED Bulb
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as incandescent and halogen light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. Each LED bulb is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment.
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
Each light has a plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook that allows operators to hang these tasks lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light. Multiple light stringers can be connected end to end to extend work area illumination. On a 120V power source, a maximum of fifteen sets of stringers can be daisy chained together. On 240V, a maximum of thirty sets of stringers can be daisy chained together. On 24V, one 10-lamp stringer and one 5-lamp stringer can be chained together.
Stringer Energy Consumption Comparison
Incandescent
CFL
LED
Wattage
1000 watts
260 watts
100 watts
Amp Draw @ 120V AC
8.34 amps
2.17 amps
0.84 amps
Amp Draw @ 220V AC
4.55 amps
1.19 amps
0.46 amps
Amp Draw @ 240V AC
4.17 amps
1.09 amps
0.42 amps
Amp Draw @ 24V DC
41.67 amps
10.84 amps
4.17 amps
Lamp Life Expectancy
1,500 hours
8,000 hours
50,000 hours
Color Temperature
2800K
4300K
6000K
Operation cost per day
$1.44
$0.38
$0.15
Operation cost per month
$43.20
$11.23
$4.32
Operation cost per year
$525.60
$136.66
$52.56
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
Wiring and Plug:
This temporary string lighting system is constructed of 12/3 STJW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard NEMA L5-15 15 amp twist lock plug or NEMA L5-20 20 amp twist lock plug for 125V twist lock outlets, and NEMA L6-15 15 amp twist lock plug or NEMA L6-20 20 amp twist lock plug for 220V-240V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
These lights are configured to operate with 120V-277VAC current and are available in an optional 24VDC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
sales@larsonelectronics.com
for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Type: LED
Weight: 25 Lbs
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC
Total Watts: 100 watts
Total Lumens: 10,500
Luminous Efficacy: 105 Lumens per Watt
Color Rendering Index: >80
Beam Angle: 180°
LED Lamp Life Expectancy: 50,000+ Hours
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range: -30°C to +85°C
Total Length: 96`
Wiring: 10` 12/3 SJTW Cable Between Each Lamp, 3 Foot Whips
Cord Caps: NEMA L5-15, L5-20, L6-15, or L6-20 Plug and Outlet
Mounting: Eyelet for hook mounting
