PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

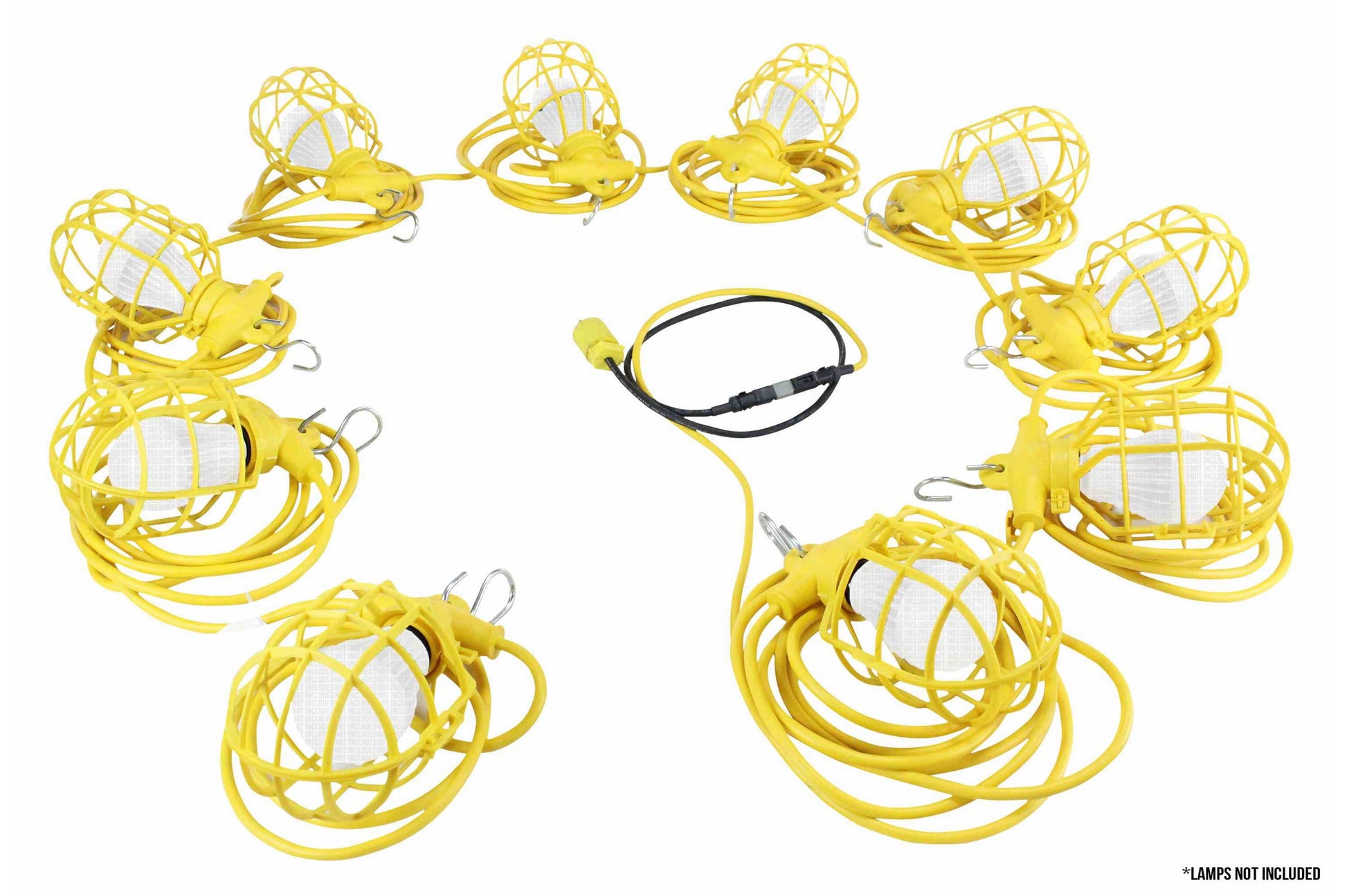

The Larson Electronics WAL-SL-10-NL-NZ Work Area Lighting String Light is designed for tempoary illuminationand daisy chain connections across the job site. This work site light set accepts ten lamps up to 100 watts per lamps to provide high quality lighting where standard lighting is not available.
LED lamps are not included with this fixture, they are sold seperately.
This work area string light consists of ten molded lamp sockets and plastic guards with 10 feet of 14/2 SJTW cable between each unit, stretching a total of 106` in length. This temporary string light is connected to power via an integrated 3 foot cable terminated with a standard 5-10 straight blade plug. Each globe can be equipped with a LED, compact fluorescent, or incandescent lamps up to 100 watts. Each lamp light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard. Lamps are sold seperately.
100 Watt Incandescent Bulb
10 Watt LED Bulb
Each light includes a yellow plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook eyelet with a s-hook that allows operators to hang these tasks lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. This trouble light has an effective range that approximately covers a 5-8` radius with 10-15 foot candles of light when LED lamps are used. Unlike fragile incandescent and compact fluorescent lamps that are made from glass, these LED bulbs are extremely durable and can live up to the abuse of harsh working conditions. With a lamp life of 50,000 hours, operators are not constantly having to replace burnt out or broken lamps, reducing down time and lowering the amount of spare lamps required at the job site.
Multiple light stringers can be connected end to end to extend work area illumination. On a 120V power source, a maximum of eight sets of stringers can be daisy chained together. On 24V, one 10-lamp stringer and one 5-lamp stringer can be chained together. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc
.
Larson Electroincs offers a wide variety of high output LED lamps and lighting solutions. Our A19 style LED lamps are a perfect fit for this LED string light set. The
LED-A19-10-E26
directional 10 watt LED lamp provides down lighting to effectively illuminate the area below where the string light is mounted, whereas our omni-directional
LED-A19-10-E26-SML
10 watt LED lamp provides the same light distribution as a standard 100 watt incandescent. Both LED lamps draw 1/10th the electricty as a standard 100 watt rough service lamp while providing 30% more light output, increased durability and reliability, and achieving a 50,000 hour lamp life.
Stringer Energy Consumption Comparison
Incandescent
CFL
LED
Wattage
1000 watts
260 watts
100 watts
Amp Draw @ 120V AC
8.34 amps
2.17 amps
0.84 amps
Amp Draw @ 24V DC
41.67 amps
10.84 amps
4.17 amps
Lamp Life Expectancy
1,500 hours
8,000 hours
50,000 hours
Color Temperature
2800K
4300K
6000K
Operation cost per year
$321.2
$83.52
$32.12
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
Lamp Features
1. 10 Lamp Sockets
Specifications
Lamp Type: Lamps Sold Seperately
Lamp Quantity: 10
Total Watts: 100 Watts
Voltage: 120V AC or 11-25V AC/DC
Total Length Per Unit: 106`
Wiring: 10` 14/2 SJTW Cable Per Unit, 3` Whips
Cord Caps: 5-10P and 5-10C
Mounting: Hook Eyelet w/ S Hooks
Shipping Dimensions: 17" x 18" x 13"
Shipping Weight: 22 lbs
Made in the USA
The Larson Electronics WAL-SL-10-NL-NZ Work Area Lighting String Light is designed for tempoary illuminationand daisy chain connections across the job site. This work site light set accepts ten lamps up to 100 watts per lamps to provide high quality lighting where standard lighting is not available.
LED lamps are not included with this fixture, they are sold seperately.
This work area string light consists of ten molded lamp sockets and plastic guards with 10 feet of 14/2 SJTW cable between each unit, stretching a total of 106` in length. This temporary string light is connected to power via an integrated 3 foot cable terminated with a standard 5-10 straight blade plug. Each globe can be equipped with a LED, compact fluorescent, or incandescent lamps up to 100 watts. Each lamp light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard. Lamps are sold seperately.
100 Watt Incandescent Bulb
10 Watt LED Bulb
Each light includes a yellow plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook eyelet with a s-hook that allows operators to hang these tasks lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. This trouble light has an effective range that approximately covers a 5-8` radius with 10-15 foot candles of light when LED lamps are used. Unlike fragile incandescent and compact fluorescent lamps that are made from glass, these LED bulbs are extremely durable and can live up to the abuse of harsh working conditions. With a lamp life of 50,000 hours, operators are not constantly having to replace burnt out or broken lamps, reducing down time and lowering the amount of spare lamps required at the job site.
Multiple light stringers can be connected end to end to extend work area illumination. On a 120V power source, a maximum of eight sets of stringers can be daisy chained together. On 24V, one 10-lamp stringer and one 5-lamp stringer can be chained together. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc
.
Larson Electroincs offers a wide variety of high output LED lamps and lighting solutions. Our A19 style LED lamps are a perfect fit for this LED string light set. The
LED-A19-10-E26
directional 10 watt LED lamp provides down lighting to effectively illuminate the area below where the string light is mounted, whereas our omni-directional
LED-A19-10-E26-SML
10 watt LED lamp provides the same light distribution as a standard 100 watt incandescent. Both LED lamps draw 1/10th the electricty as a standard 100 watt rough service lamp while providing 30% more light output, increased durability and reliability, and achieving a 50,000 hour lamp life.
Stringer Energy Consumption Comparison
Incandescent
CFL
LED
Wattage
1000 watts
260 watts
100 watts
Amp Draw @ 120V AC
8.34 amps
2.17 amps
0.84 amps
Amp Draw @ 24V DC
41.67 amps
10.84 amps
4.17 amps
Lamp Life Expectancy
1,500 hours
8,000 hours
50,000 hours
Color Temperature
2800K
4300K
6000K
Operation cost per year
$321.2
$83.52
$32.12
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
Lamp Features
1. 10 Lamp Sockets
Specifications
Lamp Type: Lamps Sold Seperately
Lamp Quantity: 10
Total Watts: 100 Watts
Voltage: 120V AC or 11-25V AC/DC
Total Length Per Unit: 106`
Wiring: 10` 14/2 SJTW Cable Per Unit, 3` Whips
Cord Caps: 5-10P and 5-10C
Mounting: Hook Eyelet w/ S Hooks
Shipping Dimensions: 17" x 18" x 13"
Shipping Weight: 22 lbs
