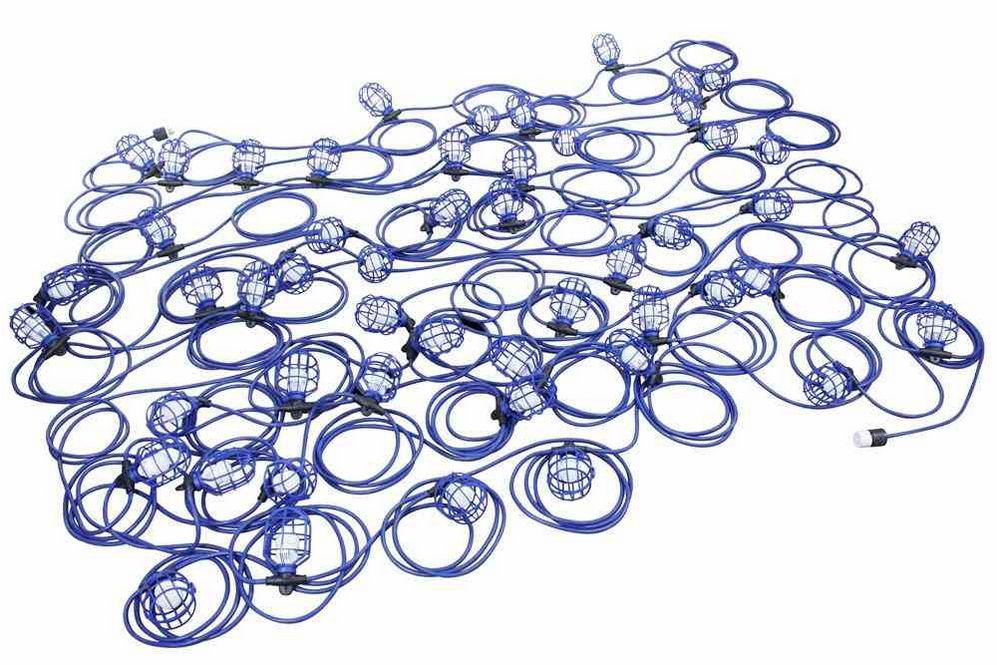

250' Temporary Tunnel String Light - 25 LED Work Lamps - 12/4 SJTW Cable - Flying Leads

250' Temporary Tunnel String Light - 25 LED Work Lamps - 12/4 SJTW Cable - Flying Leads

$5,254.00 CAD
$5,254.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
WAL-SL-25-LED-12.4-NC String Lights Features
Lamp Type: LED Lower Amp Draw
Lamp Quantity: 25 Wet Area Approved
Lamp Watts: 10 watts High Output 10 Watt LED Lamps
Total Watts: 250 Watts Daisy Chain Connection (End to End)
Lumens: 26,250 (1050 per lamp) Spans total length of 250`
Voltage: 120-277V AC Input - 90-285V AC Operating Range 26,250 Lumens of Total Illumination
Amp Draw (Single Unit): 2.08A @ 120V, 1.04A @ 240V, 0.90 @ 277V
Total Length Per Unit: 250`
Wiring: 10` 12/4* SJTW Cable Per Unit, 5` Whips, Flying LEADS
Cord Cap: ***USER PROVIDED***
Mounting: Eyelet for hook mounting w/ Provided S Hooks Toll Free: 1-800-369-6671
Shipping Dimensions: 24" x 24" x 36" Intl: 1-903-270-1187
Shipping Weight: 125 lbs E-mail:
*While the NEC code prohibits double lugging ground conductors, it does not prohibit double lugging phase conductors.
' Product Overview '
Made in the USA The Larson Electronics WAL-SL-25-LED-12.4-NC Temporary Tunnel LED Lighting String Light System is designed for high output illumination and daisy chain connections across a total length of 250` away from the power source. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This LED light stringer operate on a range from 120V through 277V AC and provides operators with a temporary work light solution for tunnels and underpasses up to half a mile in length. ***FREE SHIPPING OFFERS DO NOT APPLY TO THIS STRING LIGHT*** This temporary tunnel string light consists of 25 industrial grade LED lamps with 10` of 12/4 SJTW cable between each unit, stretching a total of 250` in length. This temporary LED string light is connected to a power source via an integrated 5` line-in cable terminated in user provided 4-wire cord caps. Each globe light is equipped with an omni-directional high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard. Twenty-five high output omni-directional A19 style LED lamps producing 1050 lumens per lamp provide a total of 26,250 lumens of bright white illumination. Each lamp housing is constructed from light weight aluminum, and fitted with an impact and shatter resistant polycarbonate diffuser. These LED light bulbs provide additional safety measures and time savings, given the low heat production and that it does not require replacing for 50,000 hours. Since the LED bulb uses solid state technology, the vibration (dropping, etc.) that degrades conventional incandescent bulbs is not an issue with these LED bulbs.
Each light has a plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook eyelet that allows operators to hang these tasks lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED trouble light has an effective range that approximately covers a 5-8` radius with 10-15 foot candles of light. Unlike fragile incandescent and compact fluorescent lamps that are made from glass, these LED bulbs are extremely durable and can live up to the abuse of harsh working conditions. With a lamp life of 50,000 hours, operators are not constantly having to replace burnt out or broken lamps, reducing down time and lowering the amount of spare lamps required at the job site. Multiple stringer sections can daisy chained together via 5` whips terminated in user provided connectors. Alternating hots along between each daisy chained unit allows these string lights to be connected together. The maximum of units capable of being daisy chained together depends on the voltage operated on. On With two alternating legs of 120V and terminated in 20A cord caps, up to four units can be daisy chained together, spanning 1000` in length. With two alternating legs of 277V and terminated in 20A cord caps, up to 10 units end to end spanning half a mile in length. Previously, it would have been unrealistic to have a complete assembly reaching 2500` in length from a single point of power.
Stringer Energy Consumption Comparison
  Incandescent CFL LED
Wattage (single unit) 100 watts 26 watts 10 watts
Wattage (total) 2,500 watts 650 watts 250 watts
Amp Draw @ 1207V AC 20.84 amps 5.42 amps 2.08 amps
Amp Draw @ 240V AC 10.42 amps 2.71 amps 1.04 amps
Amp Draw @ 277V AC 9.03 amps 2.35 amps 0.90 amps
Lamp Life Expectancy 1,500 hours 8,000 hours 50,000 hours
Color Temperature 2800K 4300K 6000K
Operation cost per day (12hs/day @ 12c/kWh) $3.60 $0.94 $0.36
Operation cost per month (12hs/day @ 12c/kWh) $108.00 $28.08 $10.80
Operation cost per year (12hs/day @ 12c/kWh) $1,314.00 $341.64 $131.40
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. The LED lamps from Larson Electronics` are designed for longevity and durability. Many manufacturers offer plastic heat sinks, which will cause the LEDs and drivers to fail prematurely. These LED lamps use high quality cast aluminum heat sinks that have been engineered to properly disperse heat buildup created by the LEDs. This design ensures the LED lamps will continue to operate well after the 50,000 rated lamp life.
Click Photo to Enlarge
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps. This tunnel string light is configured to operate with 120-277 volt AC supply voltage, and the LED lamps have a voltage range of 90-285V AC, meaning that the lamps will still operate and provide the same lumen output with a working voltage as low as 90V AC, unlike incandescent lamps which decrease in intensity the further away the lamp is from the power source. This stringer is equipped with flying leads to equip user provided male and female cord caps for connections. The LED lamps provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. With the low energy requirements of LED lamps, half mile long assembly units are now physically possible.
Lamp Features Superior LED Benefits
1. 10 Watt LED Lamps 2. 25 Lamps for a total of 250 watts spanning 250` in length. 3. 1,050 lumens per lamp for a total of 26,250 lumens. 4. High output LED lamps provide bright white illumination and better color rendering compared to the dingy yellow tint of traditional incandescent lamps. 5. Outdoor approved equipment. 6. No ballast, no flickering, instant on illumination 7. Cage plastic Guards for added protection 8. 120-277V AC Operation 9. Durable solid state LED construction resists damage from impacts and vibrations. 10. Hanging hook for hanging and hands free operation. 11. 10` of 12/4 SJTW cable between each light. 12. 250` span of temporary LED work lighting. 13. Daisy chain operations allows connecting multiple stringers together for maximum work site illumination, while aiding in servicing, storage, and transport of the tunnel light system. 14. Energy efficient alternative to incandescent and compact fluorescent temporary string lights. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
