3,900 Watt LED String Light - (26) 150 Watt LED Light Fixtures - 208-277V AC - I-Beam Mounts
3,900 Watt LED String Light - (26) 150 Watt LED Light Fixtures - 208-277V AC - I-Beam Mounts
| WAL-SL-26.X15-150LED-RT-IBC I-Beam Mount Stringer | Ratings/Approvals |
| Listing: United States & Canada | Certified to UL 1598 |
| Lamp Type: LED | Certified to CSA 22.2 No. 250 |
| Dimensions: 14"H x 16"W x 5"D (per lamp head) | LEL Approved |
| Total Watts: 3,900 | IP67 Rated Waterproof |
| Single Lamp Watt: 150 watts | Multiple Driver Banks |
| Total Lumens: 338,000 | 80% Lumen Retention after 50,000 Hours |
| Single Lamp Lumens: 13,000 | 338,000 Lumens Total Illumination |
| Color Temp: 5600K | Temporary I-Beam Mounting System |
| Color Rendering Index: >75 CRI | |
| Lighting Configuration: 60° Flood or 125° Wide Flood | |
| Lamp Life: 60,000+ Hours | |
| Voltage: 208-277 Volts AC, 50/60Hz | |
| Amps: 18.75 @ 208V, 16.25A @ 240V, 14.08A @ 277V | |
| Mounting: Temporary I-Beam Clamps - (1) Per Fixture | |
| Total Weight: ~925 lbs | |
| Single Lamp Weight: 35 lbs | |
| Temp Rating: T5 -40°C to +65°C | |
| Wiring: 10/3 SOOW Cable - 15` between lamps | |
| Total Length: 450` |
Made in the USA

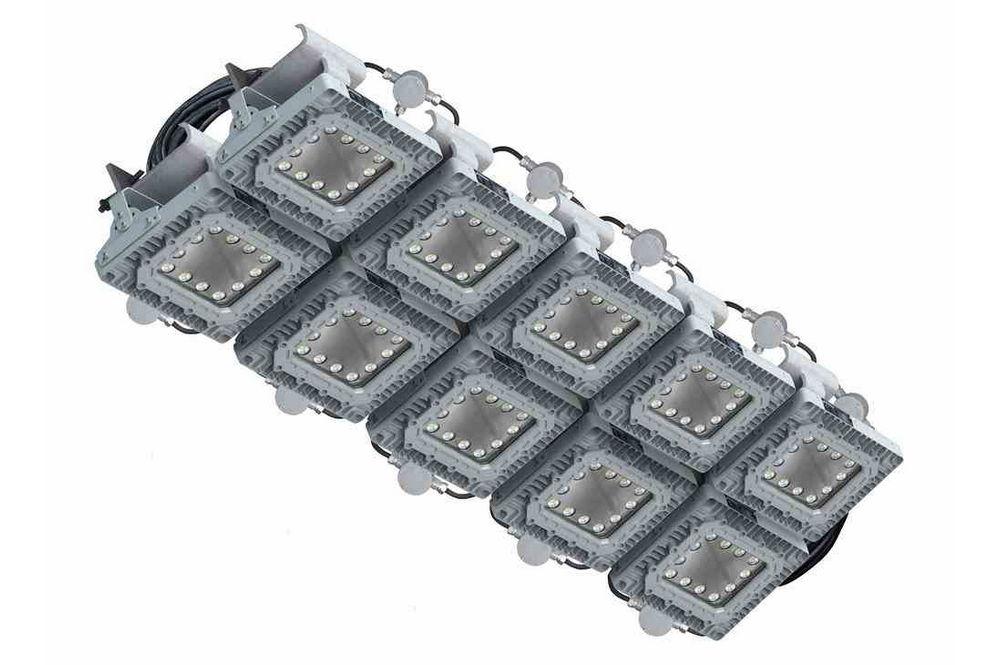

The Larson Electronics WAL-SL-26.X15-150LED-RT-IBC Outdoor Rated 3,900 watt LED String Light set is approved UL 1598 and is ideal for inspection activities and temporary illumination in wet or damp locations requiring waterproof protection. This daisy chain temporary lighting system provides 338,000 lumens and comes equipped with individual I-beam mounting brackets per light head, allowing for flexibility within the job site.
This work area string light set from Larson Electronics contains a total of twenty-six 150 watt work lights equipped with I-beam mount clamps and connected in series along 400` of 10/3 SOOW cable with a 50` 10/3 SOOW line-in cable. The 150 watt LED lights are evenly spaced along the 400` backbone and junctioned together with 15` of cable between each light. This unit is available in 208-277V AC. The 277V AC version comes equipped with L7-20 plugs/connectors while the 208-240V version have L6-20 plugs/connectors. The WAL-SL-26.X15-150LED-RT-IBC has a seperation point in the middle for increased versatility within the work area. Each part has 13 lights and twist-lock connectors allows them to be seperated.
Each waterproof light fixture provides 13,000 of high quality light while drawing only 150 watts for a combined 338,000 lumens and 3,900 watts. These lights are direct replacement for 400 watt metal halide temporary fixtures. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps these fixtures to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier traditional fixtures and requires less hardware to install.
|
|||||||||||||||||||||||||||||||||||||||||||||||||
This unit incorporates twenty-six industrial grade 150 watt LED lamps connected in series and is suitable for use in areas where wet or damp conditions are or may be present. The cast aluminum housings, tempered glass lens, and abrasion resistant cord make this a very durable unit that will resist damage from chemicals, abrasion, vibrations and impacts. This string lighting solution will provide the lighting you require in a flexible, easy to manage configuration for job site illumination. The lamps can be moved around and mounted to different points within the work area. The lights, however must remain within 15 feet of one other.
LED Drivers: Each LED light features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
|
|||||||||||||||||||||||||||||||||||||||||||||||||
