80ft Temporary Construction String Light - Four 14 Watt LED Work Lamps & Four Tool Taps - UK BS1363

80ft Temporary Construction String Light - Four 14 Watt LED Work Lamps & Four Tool Taps - UK BS1363

Sold by: LARSON ELECTRONICS

$13,238.00 CAD
$13,238.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
WAL-SL-4-FTL3-LED-4XO-E2E-BS1363 String Lights Features
Lamp Type: LED Listed for United States and Canada
Weight: 55 Lbs Low Amp Draw
Voltage: Universal 220-240V AC 50/60 Hz Wet Area Approved
Total Watts: 56 watts High Output 14 Watt LED Lamps
Total Lumens: 7,000 Daisy Chain Connection(End to End)
Luminous Efficacy: 125 Lm/W 50,000+ Hour LED Lamp Life
Lamp Life: 50,000+ Hours Approved for Confined Spares
Color Temp: 5600K Type G Tool Taps
Color Rendering Index: >80
Beam Angle: 150°
Amp Draw (Lights only): 0.26A @ 220V - 0.24A @ 230V - 0.23A @ 240V
Maximum Amperage Capacity: 13A
Power Efficiency: 90%
Power Factor: >0.95
Ambient Temperature Rating: -40°C to +60°C
Mounting: C Hooks / Hand Held
Configuration: Droplight, Tool Tap, Droplight, Tool Tap, Droplight, Tool Tap, Droplight, Tool Tap
Total Length: 120` 14/3 SOOW - 25` input, 10` between drops, 25` output
Wiring: 10` 14/3 SOOW Backbone, 16/3 SOOW Cable Drops Toll Free: 1-800-369-6671
Tool Taps: Type G Female BS1363 Receptacles w/ Waterproof Covers Intl: 1-903-270-1187
Cord Cap: Type G BS1363 Fused Male Plug E-mail:
' Product Overview '

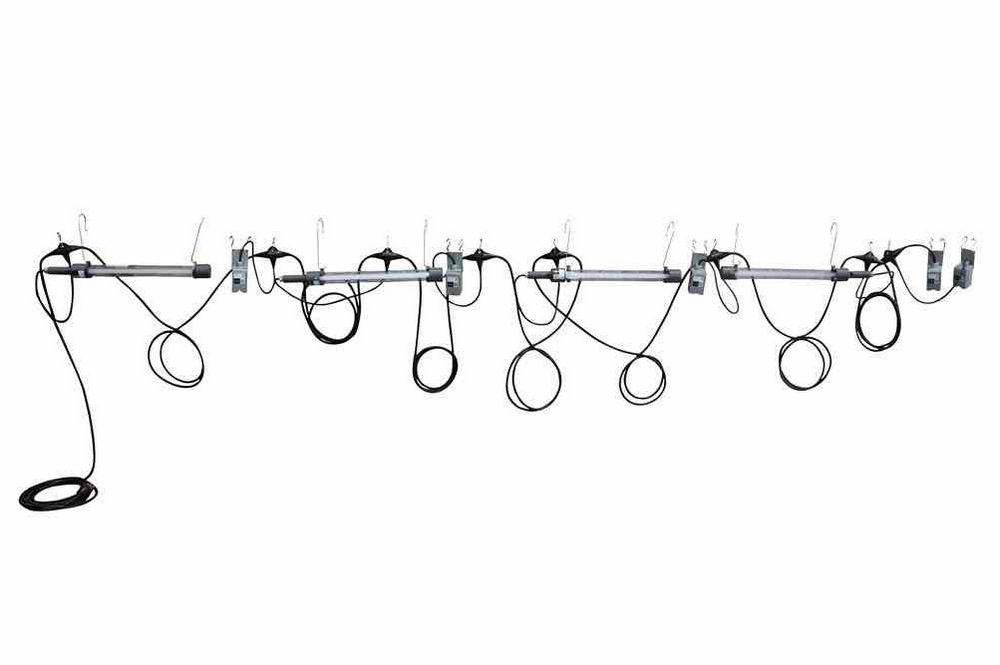

Made in the USA The Larson Electronics WAL-SL-4-FTL3-LED-4XO-E2E-BS1363 Work Area Lighting LED String Light is designed for high output illumination and daisy chain connections across the job site. The four 14 watt LED hand lamps on this this work site light set provide more and higher quality light than T8 or T12 fluorescent lights while creating less heat and using less power. This LED work area string light is equipped with four high output handlamps and four tool taps for additional equipment. This work area string light consists of four industrial grade LED work lights and four tool taps equipped with Type G BS1363 receptacles. The lights and tool taps are connected in series along 70` of 14/3 SOOW cable. A molded T junction is mounted every ten feet, with 2` of 16/3 SOOW cord connecting a single drop light and 3` of 16/3 SOOW cord connecting a single tool tap to the backbone. Alternating between handlamps and tool taps provides ample work space and even illumination within the job site. This temporary LED string light is connected to power via an integrated 25` cable terminated with a fused Type G BS1363 straight blade male plug on the input lead and 25` cable with a Type G BS1363 female receptacle on the output side, allowing for multiple units to be connected end-to-end.
Click Photo to Enlarge
Constructed to be completely weather and impact resistant, each LED drop light sacrifices no light output or quality to obtain these features. These work lights are shock resistant, making them durable enough to withstand drops, falls, and rough handling. Equipped with a 50,000 hour LED T8 lamp, each LED trouble light is designed to operate at cooler operating temperatures than conventional incandescent and fluorescent lights to reduce the chance of fire and burns. The built-in reflector provides a wide, glare free, and shadow-less light field of bright white light. Each drop light in the assembly is equipped with an 14 watt T8 style LED bulb from Larson Electronics, which produces 1,750 lumens and requires no ballast to operate. The lightly frosted lens diffuses the light and makes this bulb ideal for food safe environments as there is no glass. The nylon housing provides rigidity and strength for this LED bulb. These string lights are universal voltage and operate on 220-240V AC 50/60 Hz. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Tool Taps: Each tool tap is connected to the backbone via 3` of 16/3 SOOW cable. These tool taps are equipped with Type G BS1363 style receptacles. Theis combination string light and tool tap assembly is ideal for use with tools and electrical equipment in locations where connection to fixed receptacles is unavailable or impractical, and safely extends the operational range without creating the hazards associated with excessive cord lengths strewn about the workplace. Mounting: Each light comes standard with a set of drop hooks to allow users to conveniently hang the unit overhead anywhere illumination is needed. A machined handle at the base of the drop light allows them to be used as a handheld light fixture for spot illumination when needed. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as fluorescent lighting. Multiple light stringers can be connected end to end to extend work area illumination.
These lights are configured to operate with 120V-277VAC current and are available in an optional 24VDC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features Superior LED Benefits
1. 14 Watt LED Lamps 2. Outdoor Approved 3. No ballast, no flickering, instant on illumination 4. Polycarbonate Lens for Increases Durability 5. 220-240V AC 50/60 Hz Operation 6. Durable solid state LED construction resists damage from impacts and vibrations. 7. Hanging hook for hanging and hands free operation. 8. 10` of 14/3 SOOW cable between each molded junction. 9. End to end operations allows connecting multiple stringers together for maximum work site illumination. 10. Energy efficient alternative to incandescent and compact fluorescent temporary string lights 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
