50ft Temporary Construction String Light - 5 LED Work Lamps - 50 Watt LED Stringer - 12/3 STJW

LARSON ELECTRONICSSKU: PL3-WAL-SL-5-LED-12.3
filler

Precio:
Precio de venta$1,272.00

Descripción

Specifications / Additional Information
WAL-SL-5-LED-12.3 String Lights Features
Lamp Type: LED Listed for United States and Canada
Weight: 25 Lbs Low Amp Draw
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC Wet Area Approved
Total Watts: 50 watts High Output 10 Watt LED Lamps
Total Lumens: 5,250 Daisy Chain Connection(End to End)
Luminous Efficiency: 105 Lumens per Watt 50,000+ Hour LED Lamp Life
Color Rendering Index: >80 Approved for Confined Spares
Beam Angle: 180°
LED Lamp Life Expectancy: 50,000+ Hours
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-30° C to +85°C
Total Length: 46`
Wiring: 10` 12/3 SJTW Cable Between Each Lamp, 3 Foot Whips Toll Free: 1-800-369-6671
Cord Caps: NEMA 5-15, 5-20, 6-15, 6-20, or Shuko Plug and Outlet Intl: 1-903-270-1187
Mounting: Eyelet for hook mounting E-mail:
' Product Overview '

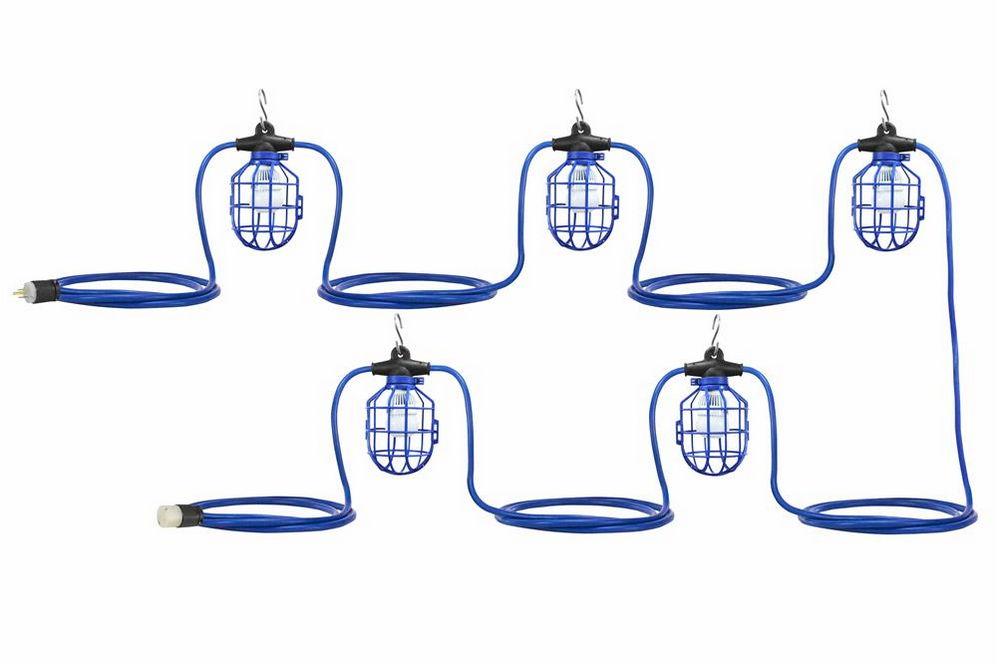

The Larson Electronics WAL-SL-5-LED-12.3 Work Area Lighting LED String Light is designed for high output illumination and daisy chain connections across the job site. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This work area string light consists of five industrial grade LED lamps with 10 feet of 12/3 SJTW cable between each unit. This temporary LED string light is connected to power via an integrated 3 foot cable terminated with an industrial grade plug and connector for daisy chain connection. Each globe light is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard. This string light is listed for use in the United States and Canada and approved for indoor or outdoor use including wet or damp environments. Five high output A19 style LED lamps producing 1050 lumens per lamp provide a total of 5,250 lumens of bright white illumination. Each lamp housing is constructed from light weight aluminum, and fitted with an impact and shatter resistant polycarbonate diffuser. These LED light bulbs provide additional safety measures and time savings, given the low heat production and that it does not require replacing for 50,000 hours. Since the LED bulb uses solid state technology, the vibration (dropping, etc.) that degrades conventional incandescent bulbs is not an issue with these LED bulbs.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as incandescent and halogen light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. Each LED bulb is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment.
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
Click Photo to Enlarge Click Photo to Enlarge
Each light has a plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook that allows operators to hang these tasks lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light. Multiple light stringers can be connected end to end to extend work area illumination. On a 120V power source, a maximum of twenty-five sets of 5-lamp stringers can be daisy chained together. On 240V, a maximum of fifty sets of stringers can be daisy chained together. On 24V, one three 5-lamp stringer can be chained together.
Stringer Energy Consumption Comparison
Incandescent CFL LED
Wattage (single lamp) 100 watts 26 watts 10 watts
Wattage (stringer total) 500 watts 130 watts 50 watts
Amp Draw @ 120V AC 4.17 amps 1.08 amps 0.42 amps
Amp Draw @ 220V AC 2.28 amps 0.59 amps 0.23 amps
Amp Draw @ 240V AC 2.08 amps 0.54 amps 0.21 amps
Amp Draw @ 24V DC 20.84 amps 5.42 amps 2.08 amps
Lamp Life Expectancy 1,500 hours 8,000 hours 50,000 hours
Color Temperature 2800K 4300K 6000K
Operation cost per day (12hs/day @ 12c/kWh) $0.72 $0.19 $0.08
Operation cost per month (12hs/day @ 12c/kWh) $21.60 $5.52 $2.16
Operation cost per year (12hs/day @ 12c/kWh) $262.80 $68.33 $26.28
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This temporary string lighting system is constructed of 12/3 STJW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard NEMA 5-15 15 amp straight blade plug and NEMA 5-20 20 amp straight blade plug for 125V outlets, NEMA 6-15 15 amp straight blade plug and NEMA 6-20 20 amp straight blade plug for 220V-240V outlets, and a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. These lights are configured to operate with 120V-277VAC current and are available in an optional 24VDC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features Superior LED Benefits
1. 10 Watt LED Lamps 2. Outdoor Approved 3. No ballast, no flickering, instant on illumination 4. Yellow Cage Plastic Guards for added protection 5. 120-277V AC or 12-28V DC Operation 6. Durable solid state LED construction resists damage from impacts and vibrations. 7. Hanging hook for hanging and hands free operation. 8. 10 feet of 12/3 SJTW cable between each light. 9. End to end operations allows connecting multiple stringers together for maximum work site illumination. 10. Energy efficient alternative to incandescent and compact fluorescent temporary string lights 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
