Incandescent String Light - (8) Lamps w/ 5-15P Socket, On/Off Switch - 95' SOOW Cable

LARSON ELECTRONICSSKU: PL3-WAL-SL-DL-8-12.3-120V
filler

Precio:
Precio de venta$1,866.00

Descripción

Specifications / Additional Information
WAL-SL-DL-8-12.3-120V String Light Ratings
Lamp Technology: Incandescent Rugged Plastic Handle for Secure Grip
Lamp Qty: (8) Steel Swivel Hook
Dimensions: L-15.5" x 4.75" Dia Head x 2" Dia Handle Wire Guard for Bulb Protection
Weight: - Mirror Reflector
Voltage: 120V AC 4,000 Hours of Operational Life
Watts: 100W, 75W or 60W Multiple Cord Cap Options
Lumens: 1000 (100W), 750 (75W), or 600 (60W) Integrated On/Off Switch
Luminous Efficacy: 10 lm/w
Lamp Life: 4,000 hours
Color Temp: -
CRI: >75 White
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Power Efficiency: >95%
Power Factor: 0.992
Switch: On/Off
Ambient Operating Temp Range: -50°C to +85°C
Material: Rugged Plastic Handle, Protective Wire Guard With Reflector
Mounting: Handheld/Hanging Hook
Wiring: 95' 12/3 SOOW Cable, 10' Between Lamps, 25' Input Whip, 3' 14/3 SOOW Cable Drops
Cord Cap Options: 5-15, 5-20, 5-30, L5-15, L5-20, L5-30 or Flying Leads
Max Wattage (Daisy Chain): 1800W for 15A Plugs or 2400W for 20A/30A Plugs
' Product Overview '

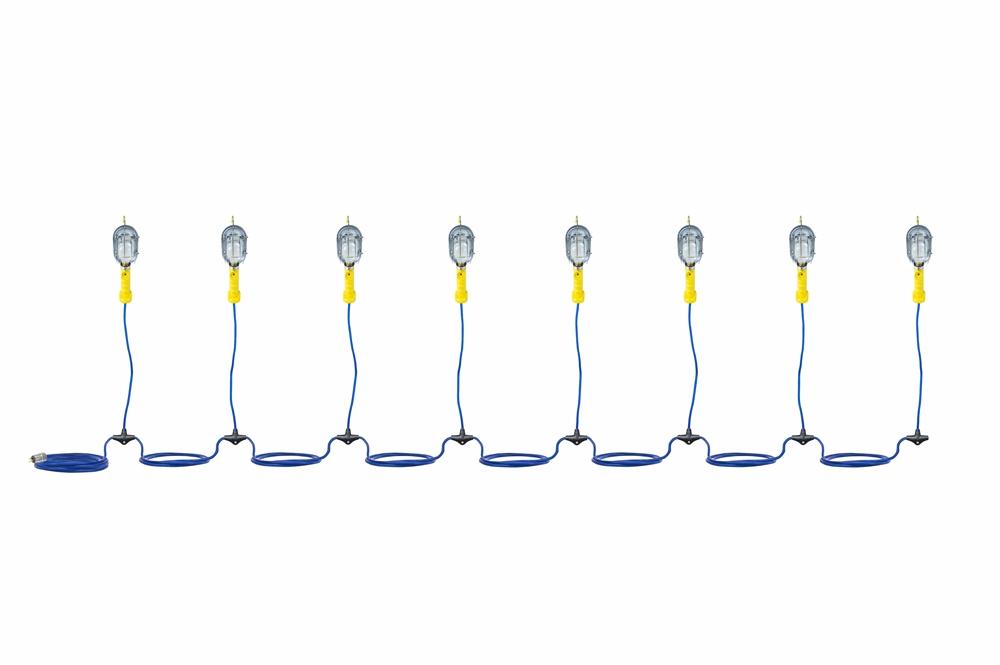

The Larson Electronics WAL-SL-DL-8-12.3-120V Incandescent Drop Light/Work light is ideal for close quarter work and general inspection activities in an industrial environment. Equipped with 8 lamps, this unit comes with several cord cap options. Options for lamp wattage includes: 60 watts, 75 watts or 100 watts. This drop light features a rugged insulated plastic handle with a built in integrated on/off switch, a steel wire guard enclosure to protect the incandescent bulb, 120V cord caps for connection to other electrical devices, such as extension cords or tools, and a swivel hook for easy mounting. The integrated on/off switch allows the operator to turn off the light without having to unplug the unit or turning off other devices. The swivel hook allows the operator to easily mount the light for a hands free operation. The steel wire guard has a metal reflector with a mirror finish to reflect light in a 180° pattern which prevents the operator of the light from being blinded by the light while using the light for inspection purposes. These incandescent drop lights improve on the desirable qualities of similar incandescent models and are ideal for a wide variety of close quarter work and inspection activities. The WAL-SL-DL-8-12.3-120V operates on 120V AC and can be customized with the correct cord cap that fits your application. The unit can be ordered with a 100 watt, 75 watt or 60 watt bulb. This string light can be daisy chained. The total quantity of units on the chain depends on the lamp wattage and quantity. Maximum system wattage cannot exceed 1,800 watts for 15-amp plugs or 2,400 watts for 20-amp/30-amp plugs.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated Flying Leads / Pigtail Wires
Wiring/Plug: This string light is equipped with 95 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. There is 10' of cable between the lamps with 3' 14/3 SOOW cable drops. The input whip extends 25'. Plug options include standard 5-15 15 amp straight blade plug, L5-15 15 amp twist lock plug, 5-20 20 amp straight blade plug, L5-20 20 amp twist lock plug, 5-30 30 amp straight blade plug and L5-30 30 amp twist lock plug for 125V outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
