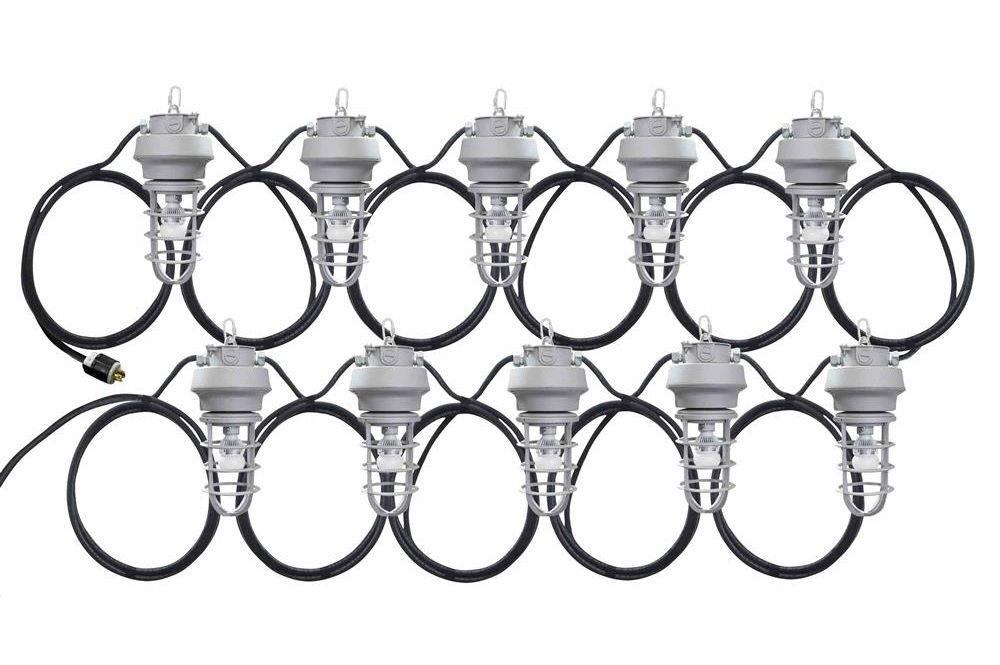

500' Temporary Tunnel String Light - 50 LED Work Lamps - 480V - 10/5 SOOW Cable - MSHA

LARSON ELECTRONICSSKU: PL3-WAL-SL-MJ-50-LED-10.5-MSHA-480V
filler

Precio:
Precio de venta$42,532.00

Descripción

Specifications / Additional Information
WAL-SL-MJ-50-LED-10.5-MSHA-480V String Lights Features
Lamp Type: LED Lower Amp Draw
Lamp Quantity: 50 Wet Area Approved
Lamp Watts: 10 watts High Output 10 Watt LED Lamps
Total Watts: 500 Watts Daisy Chain Connection (End to End)
Lumens: 66,300 (1,300 per lamp) 500` per String - Max Spanning 510`
Lamp Material: Aluminum 66,300 Lumens of Total Illumination
Voltage: 480V AC MSHA
Total  Length: 510`
Wiring: 10` 10/5 MSHA Rated SOOW Cable Per Unit, 5` Whips
Cord Caps: L22-20P and L22-20C Twist Lock
Mounting: Eyelet for hook mounting
Shipping Dimensions: 40" x 48" x 36"
Shipping Weight: 350 lbs  Fax: 1-903-498-3364
' Product Overview '
Made in the USA The Larson Electronics WAL-SL-MJ-50-LED-10.5-MSHA-480V Temporary Tunnel LED Lighting String Light System is designed for high output illumination and daisy chain connections across a total length of 500` away from the power source. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This LED light stringer operates on 480V AC and provides operators with a temporary work light solution for tunnels and underpasses up to a mile in length. This temporary tunnel string light consists of 50 industrial grade LED lamps with 10` of 10/5 MSHA rated SOOW cable between each unit, stretching a total of 500` in length. This temporary LED string light is connected to a 480V power source via an integrated 5` line-in cable. Each mason jar lamp is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into an E26 lamp socket and the bulb is enclosed in a bird cage style metal guard. Fifty high output A19 style LED lamps producing 1,300 lumens per lamp provide a total of 66,300 lumens of bright white illumination. Each lamp housing is constructed from light weight aluminum, and fitted with an impact and shatter resistant polycarbonate diffuser. These LED light bulbs provide additional safety measures and time savings, given the low heat production and that it does not require replacing for 50,000 hours. Since the LED bulb uses solid state technology, the vibration (dropping, etc.) that degrades conventional incandescent bulbs is not an issue with these LED bulbs.
Unlike the glass tube design of traditional fluorescent lamps, these LED lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as incandescent and halogen light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. Each LED bulb is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment.
Each light housing is constructed of light weight aluminum and is fitted with an aluminum mesh guard enclosure that provides protection for the enclosed bulb. A hook eyelet on the back of each lamp housing allows operators to hang these lights overhead. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED light has an effective range that approximately covers a 5-8` radius with 10-15 foot candles of light. Unlike fragile incandescent and compact fluorescent lamps that are made from glass, these LED bulbs are extremely durable and can live up to the abuse of harsh working conditions. With a lamp life of 50,000 hours, operators are not constantly having to replace burnt out or broken lamps, reducing down time and lowering the amount of spare lamps required at the job site. Multiple stringer sections can daisy chained together via 5` whips terminated in twist lock connectors, with a maximum of fifteen stringers daisy chained together. Alternating hots along between each daisy chained unit allows these string lights to be connected together, spanning over 7500` in length. Previously, it would have been unrealistic to have a complete assembly reaching 7500` in length from a single point of power.
Stringer Energy Consumption Comparison (Single Stringer)
  Incandescent CFL LED
Wattage (single unit) 100 watts 26 watts 10 watts
Wattage (total) 5,000 watts 1300 watts 500 watts
Amp Draw @ 480V AC 10.42 amps 2.71 amps 1.04 amps
Lamp Life Expectancy 1,500 hours 8,000 hours  50,000 hours
Color Temperature 2800K 4300K 6000K
Operation cost per day (12hs/day @ 12c/kWh) $7.20 $1.88 $0.72
Operation cost per month (12hs/day @ 12c/kWh) $216.00 $56.16 $21.60
Operation cost per year (12hs/day @ 12c/kWh) $2628.00 $683.28 $262.80
Stringer Energy Consumption Comparison (Fifteen Stringer)
  Incandescent Halogen LED
Wattage (Single Lamp) 100 watts 26 watts 10 watts
Wattage (6 Stringers Total) 50,000 watts 19,500 watts 7,500 watts
Amp Draw @ 480V AC 156.25 amps 40.63 amps 15.63 amps
Operation cost per day (12hs/day @ 12c/kWh) $108.00 $28.08 $10.80
Operation cost per month (12hs/day @ 12c/kWh) $3240.00 $842.40 $324.00
Operation cost per year (12hs/day @ 12c/kWh) $39,420.00 $10,249.20 $3942.00
Please note: This string light is not capable of supporting 100 watt lamps nor 26 watt lamps for due to cable restriction and overloading the cable, as well as the lack of 480V lamps for either technology. These comparison charts are for references only. To be able to achieve the same results with traditional light sources, higher amp capacity cable would be required or shorter runs per string light assembly. To be able to achieve the same distance, multiple power sources would be required for the total length of the area that requires being illuminated. Also note that for incandescent lamps, due to voltage loss over distance, the light from start to end of the single string light, with the lamps at the tail end of the stringer being nearly half the light output as the ones at the head end of the string light by the power source. For compact fluorescent lamps, this would require bulbs with internal ballasts that are universal voltage and capable of auto sensing voltage and adjusting accordingly. Otherwise the lamps will stop operating properly or fail prematurely after a certain distance due to voltage drop The LED string lights from Larson Electronics have been designed to overcome the above difficulties and faults with traditional lighting. This allows operators to run a single strand of string lights within the work area and span long distances from a single power source and work around voltage drop without sacrificing light output. This feat would not be possible with above traditional light sources without increasing cable size, weight of the unit, number of power sources required to span the same distance, while providing more light output within the work space.
Click Photo to Enlarge
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26-SML high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps. This tunnel string light is configured to operate with 480 volt electrical current. The LED lamps provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. With the low energy requirements of LED lamps, mile long assembly units are now physically possible.
Lamp Features Superior LED Benefits
1. 10 Watt LED Lamps 2. 50 Lamps for a total of 500 watts spanning 500` in length. 3. 1,300 lumens per lamp for a total of 66,300 lumens. 4. High output LED lamps provide bright white illumination and better color rendering compared to the dingy yellow tint of traditional incandescent lamps. 5. Outdoor approved equipment. 6. No ballast, no flickering, instant on illumination 7. Cage plastic Guards for added protection 8. 480V AC Operation 9. Durable solid state LED construction resists damage from impacts and vibrations. 10. Hanging hook for hanging and hands free operation. 11. 10` of 10/5 MSHA Rated SOOW cable between each light. 12. 500` span of temporary LED work lighting. 13. Daisy chain operations allows connecting multiple stringers together for maximum work site illumination, while aiding in servicing, storage, and transport of the tunnel light system. 14. Energy efficient alternative to incandescent and compact fluorescent temporary string lights. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
