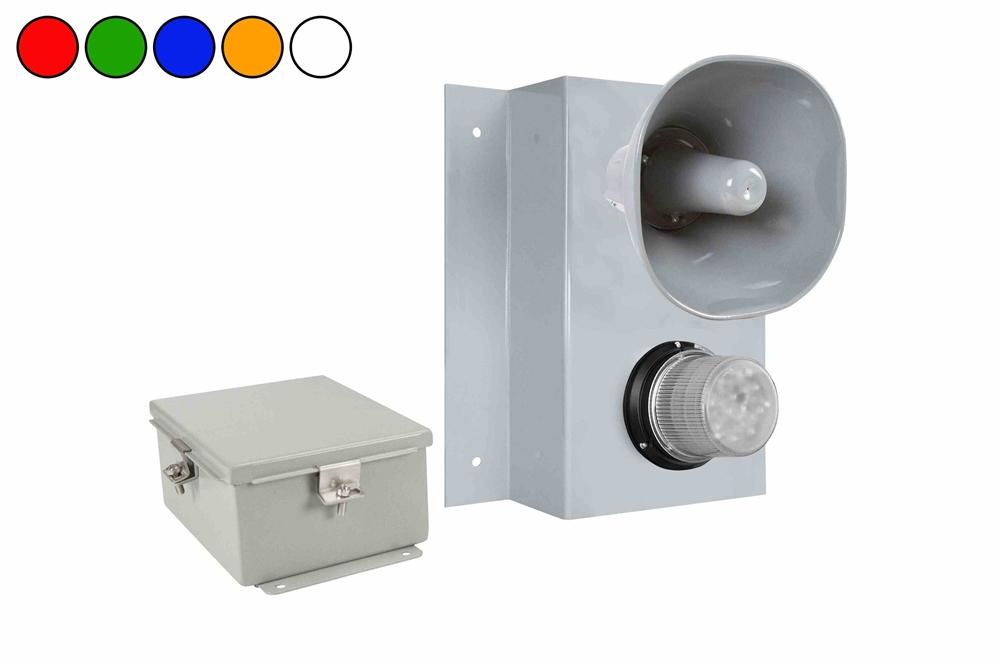

Industrial Horn & LED Strobe Warning System - 24V DC - Weatherproof - NEMA 4X - Class 1 Beacon

LARSON ELECTRONICSSKU: PL3-WAL-TL-1XCL1B-C-PA-24V
filler

Precio:
Precio de venta$4,282.00

Descripción

Specifications / Additional Information
WAL-TL-1XCL1B-C-PA-24V Industrial Warning Horn & Strobe Light Ratings/Approvals:
Type: Industrial Warning Horn & Flashing Strobe SAEJ845, Class 1 - Brightest Rating
Lamp Type: Class 1 LED Flashing Strobe Permanent Mount
Strobe Dimensions: 4.5"H x 6.5"Diameter NEMA 4X
Horn Dimensions: 10.8"L x 10"H x 10"W Marine Rated
Box Dimensions: 9.5"L x 6"W x 4"D UL Listed
Total Weight: 22.5 lbs 24 Volts DC
Wattage: 14.4 Multi-Strobe Pattern Options
Lumens: 1,440 Waterproof
Luminous Efficiency: 100 Lumens per Watt Multi-Horn Tone Options
Lighting Configuration: Strobing Flash
Strobe Color Options: Green, Amber, Red, White or Blue
Voltage: 24V DC
Horn Materials: Cast Aluminum/Fiberglass
Horn Volume: S7–110dbA @ 10 Feet
Horn Operating Modes: 8 User Selectable Field Tones
Strobe Mounting: Permanent Mount
Horn Mounting: Omni-Directional Bracket - Flat Surfaces; 1/2" Conduit Access
Box Mounting: Permanent Mount - Flat Surfaces
Wiring: Direct Wiring to Power Source
Ambient Temp: -45°C to +55°C
' Product Overview '
Made in the USA The WAL-TL-1XCL1B-C-PA-24V from Larson Electronics is an Industrial Horn & Strobe Light that provides an audible and visual warning system within wet locations. This unit features a powerful LED strobe light in addition to a horn that can produce eight different tones to sound levels up to 110dBA. The WAL-TL-1XCL1B-C-PA-24V is a powerful alert and signal horn/LED strobe light combination that offers multiple tones, remote operation capability and multiple LED light color options. The WAL-TL-1XCL1B-C-PA-24V industrial horn and LED strobe light provides operators with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. The entire unit is finished in durable grey powder coat for resistance to corrosion, is weatherproof/dustproof, and NEMA 4X and marine rated for wet environments. Strobe Features: This compact, high powered LED beacon contains an LED lamp assembly that produces 360° of brilliant light without the dark spots or unevenness of traditional incandescent beacon lights. This beacon is equipped with auxiliary LEDs on top, helping to make this a Class 1 rated beacon and capable of producing a brilliant flashing pattern that is visible at extended distances. This strobing beacon is available in a choice of white, green, blue, amber or red colors. this strobing beacon includes a permanent mounting system via through holes and self tapping screws.
Green Amber Red White Blue
Click Images to Enlarge
This LED beacon has 30 flash patterns including four simulated rotating patterns. This unit also offers alternate or simultaneous flash patterns with up to eight connected LED beacons. This waterproof beacon has a black powder coated die cast base that contains a fully potted circuit board. A clear polycarbonate lens protects the LED assembly and the housing is waterproof, shock resistant and built for for reliable and durable operation. This LED beacon draws only 0.6 amps on 24 volts DC. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Horn Features: The audible warning horn on the WAL-TL-1XCL1B-C-PA-24V includes 8 different tones which can reach peak output of 110dBA and can be remotely operated for priority alerts. The housing on this horn is constructed of heavy duty aluminum and the horn is formed fiberglass. This work area horn/siren is weather and dust proof and NEMA 4X rated. Horn Tones: Selectable by switch on sound module. 1) Continuously running train of eight sounds in sequence. 2) Wail - Conventional Siren 3) Yelp - Rapid Siren 4) Two-Tone 5) Whoop - Ascending Low to High 6) Yeow - Descending High to Low 7) Horn - Steady 8) Beep - Slow Intermittent Horn 9) Stutter - Rapid Intermittent Horn 10) Remote - Enables Remote Selection of: 7 - Horn 4 - Two-Tone - Alternating 3 - Yelp - Rapid Siren 1 - Wail - Manual Siren   Mounting: The horn is mounted via an omni directional bracket which allows mounting to flat surfaces and vertical adjustment of the horn for secure placement and optimum sound direction. The strobing beacon includes a permanent mounting system via through holes and self tapping screws. This permanent mounting system provides maximum mounting security and reliable performance. The metal enclosure holding the electrical components of the horn/strobe can be mounted to flat surfaces. Power: The WAL-TL-1XCL1B-C-PA-24V operates on 24V DC low voltage current.
