250A Portable AC to DC Transformer - 120V to 24V DC - 6000W Max - 10' SOOW Cord - N3R
250A Portable AC to DC Transformer - 120V to 24V DC - 6000W Max - 10' SOOW Cord - N3R
| WALSB-10C.CS.50-120V-6KVA-24VDC-TB AC to DC Mobile Transformer | Ratings |
| Line-in Cord: 10' 6/3 SOOW Cord w/ Cord Cap | NEMA 3R Weatherproof |
| Line-in Cord Cap: 50A CS6361C [125V] | Overload Protection |
| Primary Voltage: 120V AC | Top Located Cord Management |
| Transformer: 120V AC to 24V DC N3R |  |
| Secondary Voltage: 24V DC |  |
| Secondary Connections: Terminal Blocks |  |
| Amps: 250A (Max) |  |
| Watts: 6000W (Max) | |
| Protection: - | |
| Materials: Powder Coated Steel | |
| Mounting: Portable Base Stand w/ Polyurethane Swivel Casters, Top-located Handle | |
| Dimensions: 18.5"W x 39.5"H | |
| Weight: - | |
| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

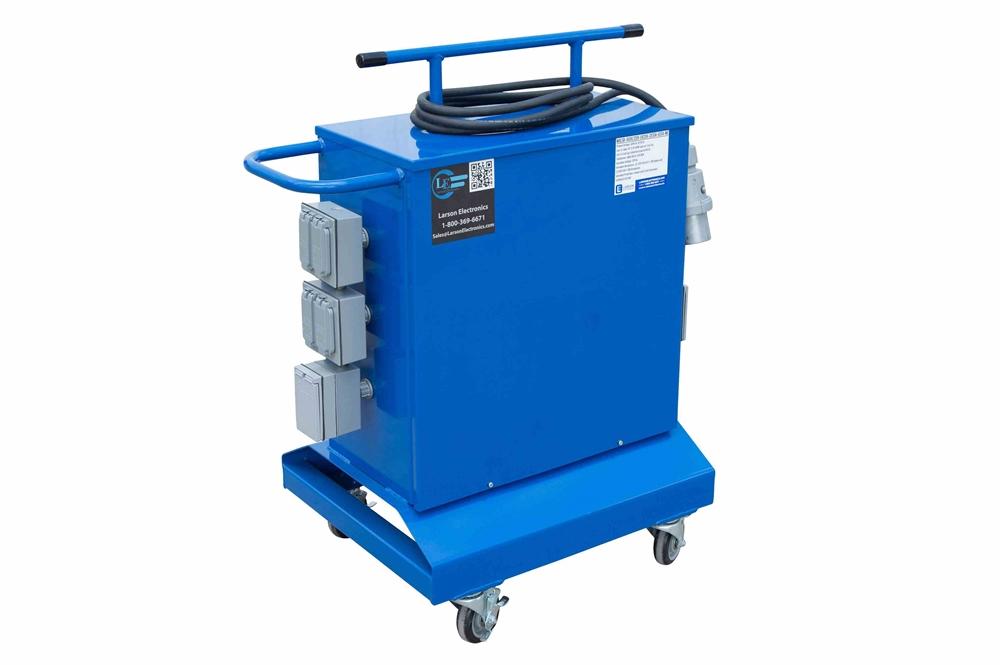

| This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-10C.CS.50-120V-6KVA-24VDC-TB Portable Power Distribution Transformer is a mobile AC to DC transformer solution for industrial sites. This unit takes 120V input and provides low voltage 24V DC output via accessible terminal blocks. The power distribution device is protected by a NEMA 3R housing with swivel casters and a top-located handle for mobility. The WALSB-10C.CS.50-120V-6KVA-24VDC-TB from Larson Electronics is built to provide operators with a reliable source of low voltage 24V DC power. This transformer is designed for portability and convenience as well as durability. The mobile power distribution unit features overload protection. In the instance of circuit overload, the unit automatically trips the circuit breaker to protect the unit from damage, and operators manually reset the breaker. Operation: A 10' 6/3 SOOW line-in cord with a 50-amp 125V CS6361C cord cap brings 120V AC power to the NEMA 3R transformer, which converts 120V to 24V DC and passes the current to the secondary side of the system. The secondary side is equipped with terminal blocks for output connections. This power distribution unit offers 250 amps maximum and 6,000 watts maximum. Protective Construction: The housing on the WALSB-10C.CS.50-120V-6KVA-24VDC-TB is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this unit does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located adjustable push handle allows operators to guide this unit through the workspace. This handle also allows operators to roll up the line-in cord when not in use and roll up the extra slack in the power cable during use. Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. Larson Electronics is a manufacturer and as such can build portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
