Portable Spider Box - L21-30 Input and (2) L6-30R Receptacles - NEMA 3R
Portable Spider Box - L21-30 Input and (2) L6-30R Receptacles - NEMA 3R
| WALSB-208Y.120-30AI-2X30A.L630 Spider Box | Ratings/Approvals |
| Input: 30A L21-30 Flanged Inlet [120/208V] | NEMA 3R Weatherproof |
| Voltage: 120/208V AC | Overload Protection |
| Output: - | Short Circuit Protection |
| Breakers: (2) 30A |  |
| Receptacles: (2) 30A L6-30R [208V] | |
| Protection: Circuit Breakers | |
| Housing Material: 16-gauge Steel | |
| Mounting: Portable/Base Stand | |
| Dimensions: 11" x 21" x 14.5" | |
| Weight: 29 lbs | |
| Color: Yellow | |
| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

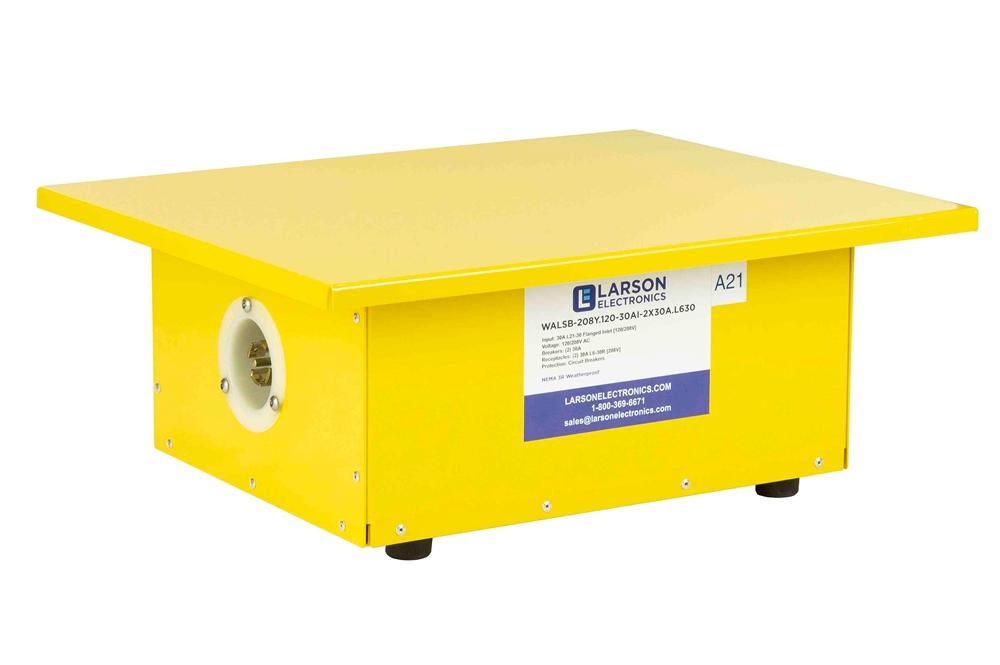

| This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-208Y.120-30AI-2X30A.L630 is a portable spider box for indoor, outdoor and rugged applications. The device supports a L21-30 flanged inlet and two, L6-30R receptacles for powering 120/208V AC equipment. For robust protection, the spider box is NEMA 3R rated and protected by impact/flame resistant weatherproof covers. This portable spider box uses a 30-amp, L21-30 flanged inlet for bringing 120/208V power into the unit. The device supports two, 30-amp breakers protecting two, 30-amp 208V L6-30R receptacles. The WALSB-208Y.120-30AI-2X30A.L630 spider box features short circuit, overload, open neutral and reverse phasing protection. Should circuit overload occur, the unit will automatically shut down to protect the spider box from damage. The housing on the WALSB-208Y.120-30AI-2X30A.L630 is constructed of 16-gauge steel with a NEMA 3R enclosure rating. This device is approved for wet locations and features heavy-duty impact/flame resistant weatherproof covers. Two angled legs at the base of the unit and low center of gravity ensures this spider box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
