Specifications / Additional Information
WALSB-208Y.120-8X20A-4X30A.208-1X60A.22992-ICB-WC Spider Box | Ratings |
Primary Voltage: 208Y AC 3-phase | UL 1640 |
Line-In Cable: Customer Provided | NEMA 3R Weatherproof |
Line-In Inlet: (1) 100-amp DTL-22992 5-Pin Connectors [208V] | Portable Casters |
Pass-Thru Receptacle: (1) 60 Amp DTL-22992 5-Pin [208V] | Top mounted push handle for portability |
Primary Receptacles: (4) 30 Amp L6-30R [208V] |  Top located cord management |
Primary Breakers: (4) 30 Amp 2-pole Din Rail Mount Breakers |  Overload Protection - GFCI Outlets |
Primary Protection: Breakers, weatherproof covers | 480V Power Indication Light |
Secondary Voltage: 120V AC | |
Secondary Receptacles: (8) 20A L5-20R [120V] | |
Secondary Breakers: (8) 20 Amp 1-pole Din Rail Mount Breakers | |
Secondary Protection: Breakers, weatherproof covers | Toll Free: 1-800-369-6671 |
Dimensions: 33.57"L x 21"W x 40.32"H | Intl: 1-214-616-6180 |
Weight: 250 lbs | |
Mounting: Portable / Base Stand w/ Polyurethane Swivel Casters | |

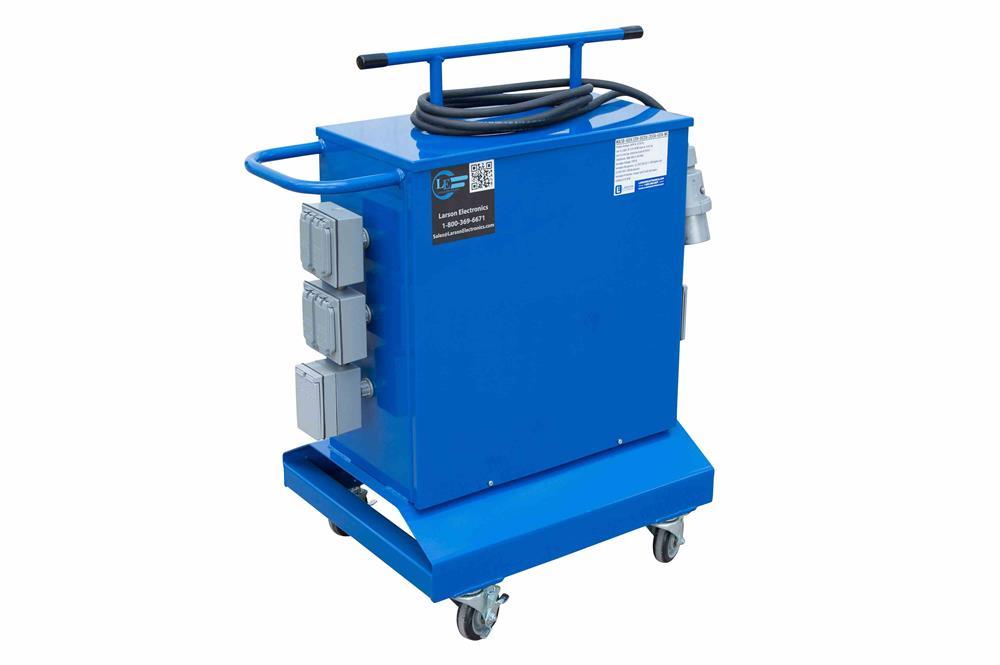

Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-208Y.120-8X20A-4X30A.208-1X60A.22992-ICB-WC portable spiderbox converts 208Y/120 input voltage to 120/208V AC output voltage. This weatherproof portable power distribution panel allows operators to plug into 208Y 3-phase power sources, power up to four 208V and eight 120V connections, and allow for 208Y pass through to power other equipment. Equipped with DTL-22992 inlet and outlet connectors, this portable spiderbox is designed for operation with military and marine equipment. The WALSB-208Y.120-8X20A-4X30A.208-1X60A.22992-ICB-WC portable wheeled spiderbox from Larson Electronics is built to provide operators with a reliable source of 120V and 208V power. This 3-phase distribution panel is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the WALSB-208Y.120-8X20A-4X30A.208-1X60A.22992-ICB-WC is ideal for powering 120V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 208Y generators are providing the power. The 100-amp Milspec DTL-22992 5-pin inlet brings 208Y three phase power to the spiderbox. This wheeled spiderbox features eight 20-amp din-rail mount breakers protecting eight 120V, 20A, L5-20R twistlock receptacles and four 30-amp din-rail mount breakers protecting four 208V, 30A, L6-30R receptacles. These twistlock receptacles provide sealed and secure connections for up to twelve devices. In addition, one 60-amp Milspec DTL-22992 5-pin receptacle provides for pass through power to additional spiderboxes or 208Y equipment. These receptacles provide 120V and 208V for powering high voltage lighting and equipment without the need for running additional extension cords for each individual unit. Each receptacle features a hinged watertight cover protecting the face from rain, water, and moisture when not in use. The housing on the WALSB-208Y.120-8X20A-4X30A.208-1X60A.22992-ICB-WC is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this low voltage transformer does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located push handle allows operators to guide this unit through the workspace. A top located cord management system allows operators to roll up line-in cord when not in use, and roll up the extra slack in the power cable during use. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or . |
