Portable Spider Box - 480V 3PH - (1) CS8164C w/ 20' #6 SOOW - Flying Leads Input

LARSON ELECTRONICSSKU: PL3-WALSB-480.3P-FL.20-50AO-TWL.20
filler

Precio:
Precio de venta$3,912.00

Descripción

Specifications / Additional Information
WALSB-480.3P-FL.20-50AO-TWL.20 Spider Box Ratings/Approvals
Input: 20' #6 SOOW Flying Leads Max Output OCP: 50A @ 480V
Voltage: 480V AC, 3PH NEMA 3R Weatherproof
Output: - Overload Protection
Breakers: (1) 50A [480V] Short Circuit Protection
Output Device: (1) 50A CS8164C w/ 20' #6 SOOW Cord [480V]
Protection: Circuit Breakers
Housing Material: 16-gauge Steel
Mounting: Portable/Base Stand
Dimensions: 11" x 21" x 14.5"
Weight: 29 lbs
Color: Yellow

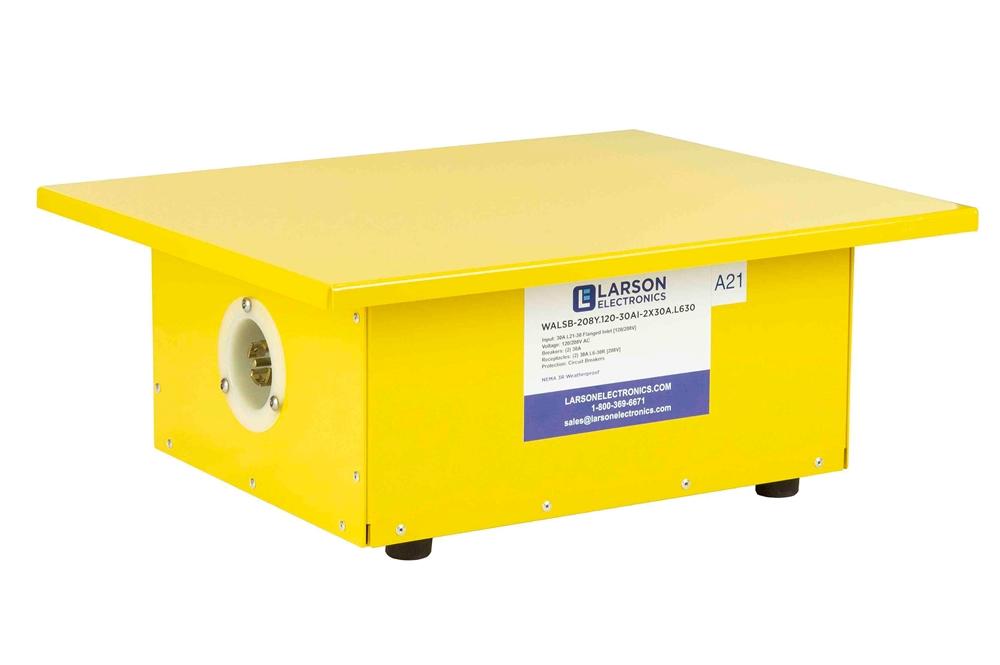

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-480.3P-FL.20-50AO-TWL.20 is a portable spider box for indoor, outdoor and rugged applications. The device supports one CS8164C connector with a 20' #6 SOOW cord on the output side for powering 480V AC equipment. For robust protection, the spider box is NEMA 3R rated and protected by impact/flame resistant weatherproof covers. This portable spider box is equipped with 20' of #6 SOOW flying leads on the input side, which can be used to bring three-phase 480V AC into the unit. The output side contains one 50-amp 480V breaker protecting one 50-amp CS8164C 480V connector with a 20' #6 SOOW cord. The WALSB-480.3P-FL.20-50AO-TWL.20 spider box features short circuit, overload, open neutral and reverse phasing protection. Should circuit overload occur, the unit will automatically shut down to protect the spider box from damage. The housing on the WALSB-480.3P-FL.20-50AO-TWL.20 is constructed of 16-gauge steel with a NEMA 3R enclosure rating. This device is approved for wet locations and features heavy-duty impact/flame resistant weatherproof covers. Two angled legs at the base of the unit and low center of gravity ensures this spider box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
