Portable Spider Box - 120/208V - 60A 460B9W Inlet - (1) 460R9W Output, (5) 5-20R GFCI Duplex

LARSON ELECTRONICSSKU: PL3-WALSB-60AI-3P-208Y.120-6X120.20A
filler

Precio:
Precio de venta$3,818.00

Descripción

Specifications / Additional Information
WALSB-60AI-3P-208Y.120-6X120.20A Spider Box Ratings/Approvals
Input: 60A 460B9W IEC 60309 4P5W Pin/Sleeve Inlet [208V] NEMA 3R Weatherproof
Primary Voltage: 208V AC Overload Protection
Output: 60A 460R9W IEC 60309 4P5W Pin/Sleeve Feed Through [208V] Short Circuit Protection
Secondary Voltage: 120V AC
Secondary Receptacles: (5) 20A 5-20R GFCI Duplex [125V]
Secondary Protection: Ground Fault Circuit Interrupter
GFI Trip Level: 4-6 mA
Pass Through Wiring: #4 THHN Copper Wires (Internal)
Housing Material: 16-gauge Steel
Mounting: Portable/Base Stand
Dimensions: 11" x 21" x 14.5"
Weight: 29 lbs
Color: Yellow

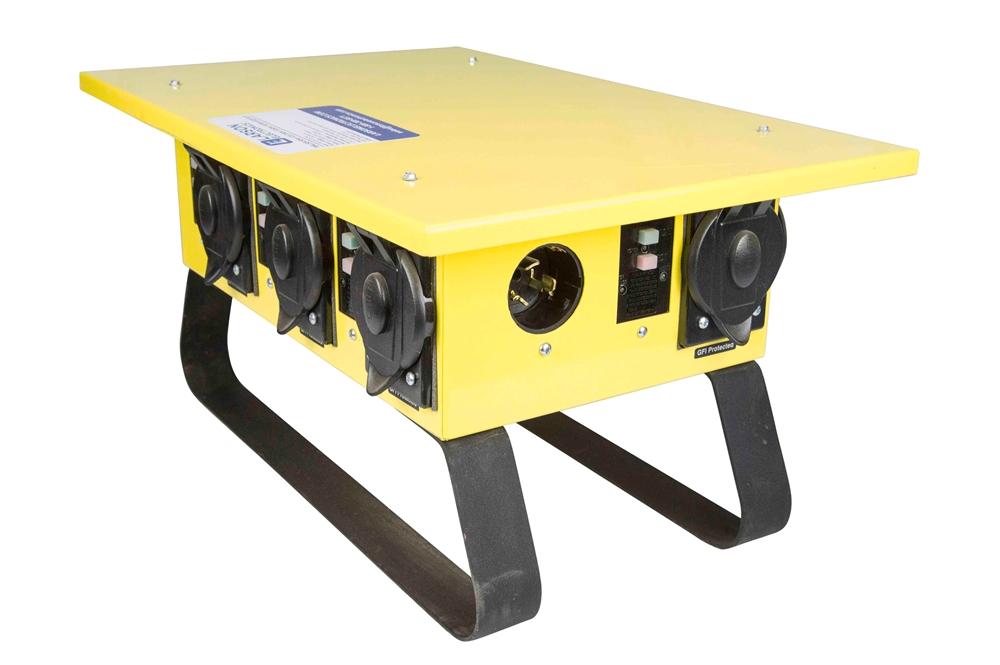

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-60AI-3P-208Y.120-6X120.20A is a portable spider box for indoor, outdoor and rugged applications. This unit allows operators to use 120/208V power via a 460B9W electrical inlet. The device supports one feed through receptacle for 208V equipment, as well as five 125V (5-20R) GFCI duplex receptacles. For robust protection, the spider box is NEMA 3R rated and protected by impact/flame resistant weatherproof covers. This portable spider box uses a 60-amp, 208V 460B9W IEC 60309 4P5W pin/sleeve inlet for bringing power into the unit. The outlet is a 60-amp, 208V 460R9W IEC 60309 4P5W pin/sleeve feed through for powering 208V tools and machines (uses #4 THHN copper wires for pass-through internal wiring). The device supports one feed through receptacle for 208V equipment and five, 20-amp 125V 5-20R GFCI duplex receptacles. GFI trip level is set to 4-6 mA with a maximum trip time of 25 mS. The WALSB-60AI-3P-208Y.120-6X120.20A spider box features short circuit, overload, open neutral and reverse phasing protection. Should circuit overload occur, the unit will automatically shut down to protect the spider box from damage. The housing on the WALSB-60AI-3P-208Y.120-6X120.20A is constructed of 16-gauge steel with a NEMA 3R enclosure rating. This device is approved for wet locations and features heavy-duty impact/flame resistant weatherproof covers. Two angled legs at the base of the unit and low center of gravity ensures this spider box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
