Larson Electronics Megatowerâ„¢- 12 X 1500W MH - 1,800,000 Lumens- 50' Height - Trailer Mounted

LARSON ELECTRONICSSKU: PL3-WCDE-24-12X1500
filler

Precio:
Precio de venta$268,230.00

Descripción

Specifications / Additional Information
WCDE-24-12X1500 Megatower ™ Features
Power: Water Cooled Diesel Engine 1,800,000 Lumen Output
Generator: Brushless 24kw Three Convenience Outlets
Lamps: (12) 1500 watt Metal Halides Six Point Outrigger System
Total Lamp Watts: 18,000 watts Powered Boom Deployment
Fuel: 113 Gallon Fuel tank - Optional 95 gal Aux Tank  Extreme Area Coverage
Boom Height: Up to 50 Feet
Efficiency: 110 Lumens per Watt
Total Lumens: 1,800,000
Coverage: 6+ Acres
Mounting: Towable Trailer, 14,000bs DuaL Axle, 3” lunnett Eye Pintle Hitch Toll Free:1-800-369-6671
Run Time: Up To 27 Hours on Single Tank of  Fuel -Approximate Intl:1-903-270-1187
' Product Overview '

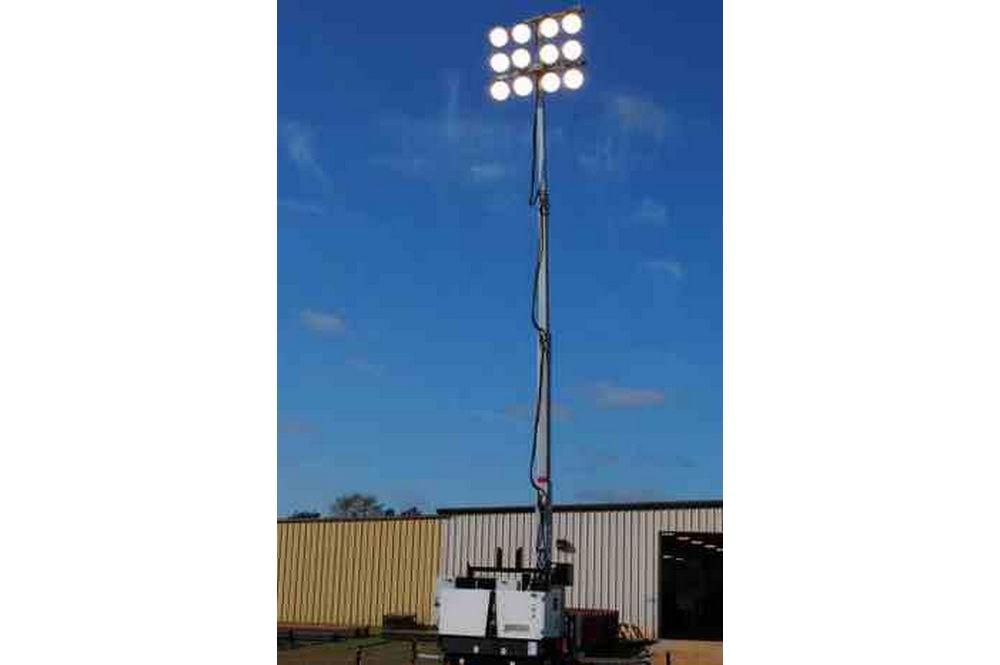

Made in the USA The WCDE-24-12X1500 Megatower™ from Larson Electronics is a high power lighting package powered by a 24kw brushless water cooled diesel generator. The twelve 1500 watt metal halide lamps included with this unit produce a combined total of 1,800,000 lumens and will illuminate continuously without refueling for up to 27 hours. The WCDE-24-12X1500 Megatower™ is a self contained, towable, high power light tower package that produces enough light to illuminate an area 6+ acres in size. This unit contains a water cooled diesel engine powering a 24/KW generator, which supplies the current for twelve 1,500 watt metal halide lights producing 150,000 lumens each, for a combined total of 1,800,000 lumens of light. This unit can run uninterrupted for up to 27 hours straight without refueling and includes a telescoping light mast which can elevate the metal halide lamps to a height of 55 feet. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed.
Click Photo to Enlarge
Genset: The WCDE-24-12X1500 mobile light tower includes a diesel engine that powers the 24KW brushless generator. This genset features key operated electric starting, a twelve volt electrical system, water cooling, replaceable dry element air cleaner, and a full enclosure for safe operation and protection against the elements. This engine also features cold weather options to improve performance under cold weather conditions. Lights: The lighting system on this unit is comprised of twelve 1,500 watt metal halide lamps producing 150,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 6 acres with a combined total of 18,000 watts and 1,800,000 lumens of light. The entire lighting assembly is connected to the power source via a precision light controller ballast and breaker box. Telescoping Boom: The extending boom is constructed of carbon steel with a powder coated finish and extends up to 55 feet in height. This boom is raised from and lowered to the folded position by a single motorized hoist, and extended or retracted by a secondary 12,000 motorized hoist system. The stabilizing system consistes of (6) powder coated outriggers with 7,000 lbs rated jacks. Each outrigger extends out from the trailer 7 feet 6 inches to provide excellent stability. An included leveling indicator allows operators to easily adjust outrigger positioning to ensure proper tower deployment. Housing: All of the operating components are housed with protective compartments designed to provide protection against the elements while providing easy access for operation and servicing. Hinged doors provide access to interior control and operating systems while latches provide secure closing while the unit is in use or transport. All controls, systems and operating equipment is labled with the proper safety decals and notifications. Trailer: The entire unit is mounted onto a four wheel, dual axle trailer constructed of 250” TK tube steel. Each axle is rated at 7,000 lbs and equipped with electric brakes and P235/80R16 tubeless tires and wheels. Tongue weight is rated at 650 lbs and an adjustable 3” lunnett eye for pintle hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 20’-8” long, by 8’-5” wide X 11’ high.
