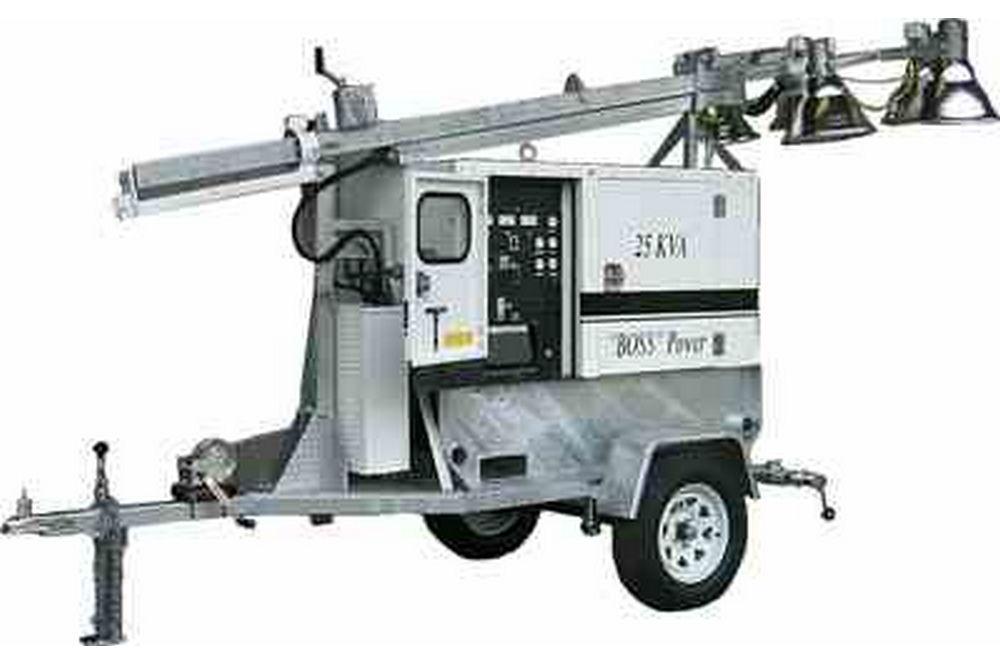

Diesel Engine Powered Light Tower- 30' Mast - 8,000 Watt Generator - 6 Metal Halide Fixtures
Diesel Engine Powered Light Tower- 30' Mast - 8,000 Watt Generator - 6 Metal Halide Fixtures
| WCDE-6MHL Mobile Light Tower | Protection |
| Power: Perkins Water Cooled Diesel Engine | External Grounding |
| Generator: 20,000 watts, 480V, 208Y/120V, 3ph and 120/240 volt, 1ph | Low Oil, High Engine Temp Auto Shut-Off |
| Lamps: 6- 1000 watt Metal Halides | Three Point Outrigger System |
| Total Lamp Watts: 6,000 watts | Hour Meter - Charging indicator |
| Fuel: 58 Gallon Fuel tank | Individual Light Switch Circuit Breakers |
| Power Supplies: 2-120V,  1-30amp, 125/250V,  3-50A,125/250V Spider Boxes | Withstands 65Mph Winds at Full Extension |
| Boom Height: Up to 30 Feet | |
| Efficiency: 110 Lumens per Watt | |
| Total Lumens: 660,000 | |
| Coverage: 5 to 7 Acres | |
| Noise Level: Db level 63 Db @23 ft | |
| Mounting: Towable Trailer, 3500lbs Axle, 2" Ball Coupling | |
| Run Time: Up To 36 Hours on Single Tank of Fuel | |
|  | |
|  | |
|  |
| The WCDE-6MHL mobile light tower is a towable lighting package powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 20,000 watts and 120/240V@60Hz. With six 1,000 watt metal halide lamps producing 660,000 lumens this unit will illuminate a 5-7 acre area continuously without refueling for up to 36 hours.  The WCDE-6MHL mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 20,000 watt generator, which supplies the current for six 1,000 watt metal halide lamps producing 110,000 lumens each, for a combined total of 660,000 lumens of light. This unit can run uninterrupted for up to 36 hours straight without refueling and includes a telescoping light mast which can elevate the six metal halide lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. |
| The WCDE-6MHL mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Perkins that produces 40 horsepower at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. The fuel tank is sized to allow the engine to operate for up to 36 hours continuously without refueling. Generator: The 20,000 watt, 20kva generator is a single bearing 4 pole design with Class F minimum insulation producing 480V, 208Y/120V, 3ph and 120/240 volt, 1ph. @ 60hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems. Lights: The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Controls: The operations system for this unit is a centrally located control panel located within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is a battery charging indicator, preheating switch, Two (2) - 120 volt GFCI duplex receptacles,(1)– 30amp, 125/250 volt receptacle and (3) 50amp, 125/250 volt Spider Box receptacles. Full Power Lugs. Telescoping Boom: The telescoping boom consists of three sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and comes powder coated to prevent friction and rusting between tower sections.This system is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1500 lbs, swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed with a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db level @ 23 ft. Trailer:The entire unit is mounted onto a two wheel trailer with a 3,500 lbs leaf spring axle and 15†wheels with protected fenders. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. |
|  |
