4-Stage Telescoping Light & Equipment Tower - 6kW Diesel Genset - 50 Gal. Fuel Tank - 13-40' Boom

4-Stage Telescoping Light & Equipment Tower - 6kW Diesel Genset - 50 Gal. Fuel Tank - 13-40' Boom

Sold by: LARSON ELECTRONICS

$57,112.00 CAD
$57,112.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
WCDE-40-4S-6KW Mobile Light/Equipment Tower Protection
Genset Specs: 6KW Kubota Brushless Genset
Engine: Kubota D1105-BG-ET01 30 Gallon Fuel Cell
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine Up to 60+ Hour Continuous Operation
Engine Speed: 1800 RPM External Grounding
No. of Cylinders: 3 Low Oil, High Engine Temp Auto Shut-Off
Generator: Marathon Pancake 6KW 4-Pole Brushless Hour Meter - Alternator Warning
Voltage: 120/240V Single Phase Individual Light Switch Circuit Breakers
Battery 12V Steel Trailer w/ Industrial Grade Paint Finish
Fuel Cell Capacity: 30 Gallons Three Point Outrigger System
Fuel Delivery: Electric Withstands 65Mph Winds at Full Extension
Noise Level: Db level 63 @ 23 ft
Light Mast Specs:
Mast Type: Manual Crank-Up
Boom Height: Up to 40`
Materials: Galvanized Steel
Operation: Manual Hand Crank Winch
Winch: (2) 1500lb, Self-Braking
Stages: Four
Trailer Specs
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2" Ball Coupler
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (3) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: ST175/80/D13
' Product Overview '

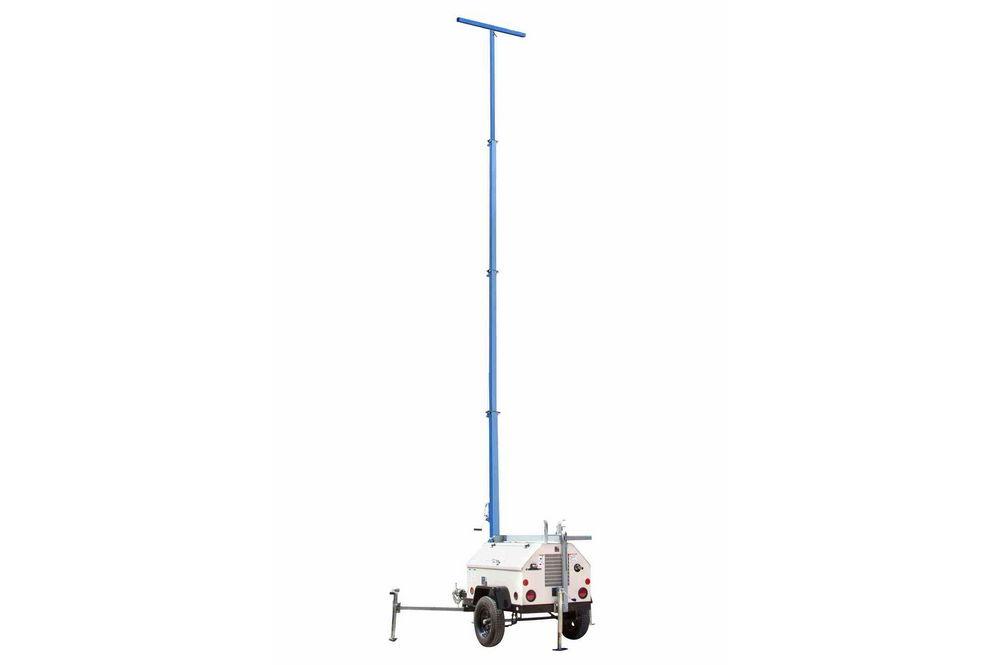

Made in the USA The WCDE-40-4S-6KW from Larson Electronics is a towable light and equipment tower powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts and 120/240V @ 60Hz. The WCDE-40-4S-6KW features a 4-stage, 40 foot light mast that support a 150 lb payload of lighting or other equipment such as cameras. The WCDE-40-4S-6KW mobile light tower is a self contained towable light tower that contains a water cooled diesel engine powering a 6,000 watt generator which can run uninterrupted for 60 hours straight without refueling and includes a telescoping light mast which can elevate operator provided lighting and other electrical equipment to a height of 40 feet. This mobile light/equipment tower is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. The WCDE-40-4S-6KW mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control operator provided lights or equipment while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Telescoping Boom: The WCDE-40-4S-6KW features a telescoping four stage steel light mast that is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 40 feet for effective coverage. This light boom can be extended to 40 feet for maximum area coverage and collapsed to 13 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 11.25` in length and 5" x 5" by 3/16" thick, lower section 11.25` in length and 4" x 4" by 1/8" thick, an upper section 11.25` in length and 3" x 3" by 1/8" thick, and a top section 11.75` in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 1,200 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,200 lbs winch. The telescoping boom is constructed of galvanized steel and is powder coated with glossy blue finish for corrosion resistances and aesthetics to resist rusting and corrosion and is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounted light fixtures and equipment. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
