23' Mobile Light Tower with Diesel Engine Generator - 12'-20' Mast - (4) 320W LED Lamps - 4kW Genset/39.9 Gallon Poly Fuel Tank
23' Mobile Light Tower with Diesel Engine Generator - 12'-20' Mast - (4) 320W LED Lamps - 4kW Genset/39.9 Gallon Poly Fuel Tank
Precio habitual
$40,104.00 CAD
Precio habitual
Precio de oferta
$40,104.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| WCDE-4K-3X320W-LED-M1 Mobile Light Tower | Ratings/Features |
| Genset Specs: | Made in the USA |
| Engine: Yanmar Air Cooled, Direct Injection | Buy American Compliant |
| Engine Speed: - | TAA Compliant |
| No. of Cylinders: (1) | 12'-20' Light Mast - 23' w/ LED Lights |
| Total Displacement: - | 4kW Yanmar Brushless Genset |
| HP: - | 39.9 Gallon Poly Fuel Tank |
| Fuel Type: Diesel | External Grounding |
| Fuel Cell Capacity: 39.9 Gallon Poly Fuel Tank | Leveling Jacks |
| Fuel Consumption: - | UV Resistant Steel Enclosure |
| Alternator: Meccalte Alternator Brushless | 125 mph Wind Resistance |
| Generator Watts: 4 kW Standby, 3kW w/ Lights On | EPA Final Tier 4 Compliant Generator |
| Voltage: 120/240V Single Phase | (4) 320W LED Lamps |
| Breakers: Mains and Branch | Lifting Eye and Fork Pockets |
| Receptacles: (2) 20A [120V], (1) 30A NEMA L14-30 [120/240V] |  |
| Starter: Electric and Manual Recoil Starter |  |
| Voltage Meter: Included |  |
| Noise Level: - |  |
|  | |
| Light Mast Specs: |  |
| Mast Type: Telescoping, Fold Over |  |
| Boom Height: 12-20' |  |
| Materials: Steel |  |
| Operation: (2) 1,000lbs Hand Winches, Electric Optional | |
| Cable: 3/16 Aircraft Cable | |
| Stages: 3 | |
| LED Light Specs: | |
| Lamp Qty: (4) | |
| Lamp Type: LED | |
| Total Watts: 1,280W | |
| Single-lamp Watts: 320W | |
| Total Lumens: 172,000 lms | |
| Single-lamp Lumens: 43,000 lms | |
| Luminous Efficacy: 145 Lm/w | |
| LED Life Expectancy: 50,000+ hours | |
| Color Temp: - | |
| Beam Angle: Flood | |
| Coverage @ 0.5 ft-c: 19,500 sqft2 (Minimum) | |
| Sensor: Dusk-to-Dawn | |
| Controls: 7-day Scheduling | |
| Lamp Housing Material: Aluminum, Polymer | |
| Mount: Adjustable Brackets/Tower Mount | |
| LED Lamp IP Rating: IP68- LED Modules, IP65- Drivers | |
| Trailer Specs: | |
| Materials: Steel Enclosure - UV Resistant | |
| Hitch: 2" Ball Hitch | |
| Finish: Industrial Grade Paint | |
| Axle: (1) 2,200 lbs | |
| Suspension: 2,000 lbs Double Eye Leaf Springs | |
| Leveling Jacks: (3) 1,200 lbs Tube and Sleeve Leveling Jacks | Special Orders - Requirements |
| Lighting: DOT Approved tail, side, brake, and directional lights | |
| Wheels: (2) | |
| Tires: ST175/80D13 | |
| Dimensions (Fully Deployed Mast with LED Fixtures and Leveling Jacks): 118" x 23" x 120.5" | |
| Weight (Operating Weight): 1,630 lbs |

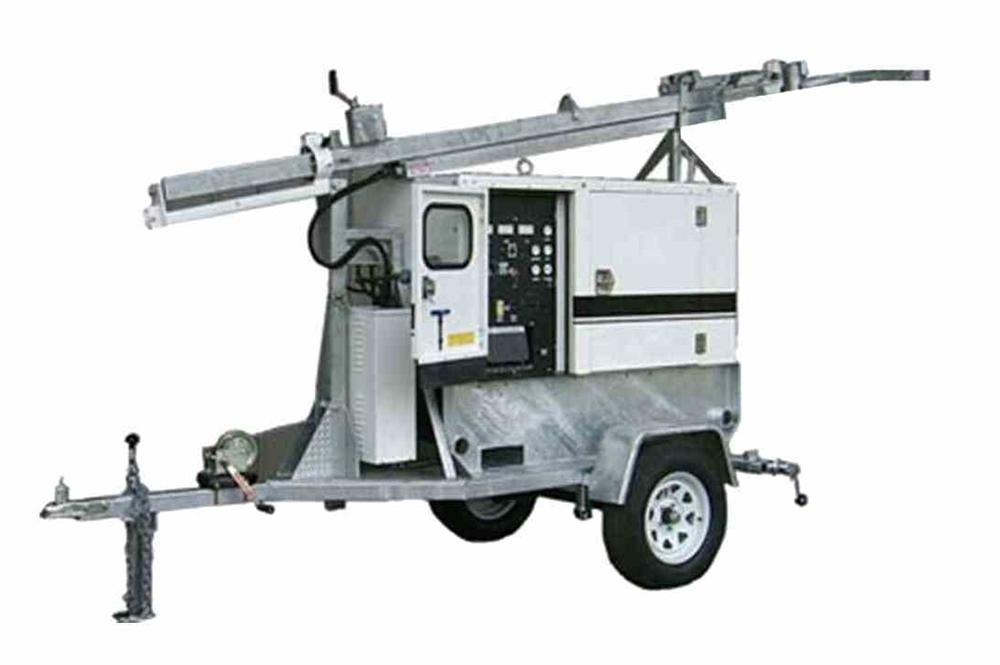

| Made in Texas The WCDE-4K-3X320W-LED-M1 Mobile Light Tower from Larson Electronics is a towable LED lighting package powered by a 4kW generator. Equipped with four LED lamps offering 43,000 lumens per unit, the telescoping fold-over light tower extends to a maximum height of 20 feet (23 feet with LED lights) and can be collapsed to 12 feet. All system components are secured to a heavy-duty trailer. This TAA compliant product is made in the USA. The WCDE-4K-3X320W-LED-M1 mobile light tower is a reliable solution for deploying equipment in outdoor, remote locations. This unit is supported by a 4,000 watt generator, which supplies the current to four LED lights secured at the top of the tower. The light mast system can provide hours of continuous operation, at a maximum height of 23 feet. This mobile package comes with automated dusk-to-dawn sensor and 7-day scheduler operation. An included generator (4kW standby, 3kw with lights) equipped with an air-cooled motor provides power for the four LED lights and equipment. The diesel engine is a Yanmar unit with a single cylinder. This engine features direct injection and an electric/manual recoil starter. A 39.9 gallon poly fuel tank allows the engine to operate continuously for extended periods of time without refueling. The 4,000 watt generator is a brushless design and produces 120/240V volt current. Equipped with a volt meter, there are three circuit-breaker protected receptacles on the unit: (2) 20-amp [120V] and (1) 30-amp L14-30 NEMA [120/240V]. LED Light Fixtures: This portable light tower is equipped with four, 320-watt LED lamps. Each LED light offers 43,000 lumens of output during use. The lighting system covers 19,500 square ft at 0.5 ft-c. Sensors provide automated dusk-to-dawn operation. A 7-day scheduler is available for configuring timed settings. Equipped with fixture-mounted drivers, the IP68 rated LED lights (IP65 rated drivers) are protected by an aluminum and polymer housing. LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Telescoping Boom: The telescoping, fold over three stage steel light mast is designed to allow operators to quickly and safely deploy four LED lights in locations where this equipment must be elevated to heights up to 20 feet (23 feet with LED lights) for effective coverage. This light boom can be extended to 20 feet for maximum area coverage and collapsed to 12 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, a middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 feet and 3 inches in diameter. Each section has 2` of overlap. The mast is elevated using an included 1,000 lbs. hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs. winch. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the LED lights. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 12 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with ease, and can typically be rotated with a single hand. Housing: All of the operating components are housed within a protective compartment constructed of UV resistant steel and provides airflow for cooling. The design and construction of this enclosure helps this unit operate at a low noise level. Trailer: The system is mounted onto a two-wheel trailer with DOT-approved LED tail, side, brake and directional lights. A standard two-inch ball coupling and two standard safety chains allow for easy hookup and towing. Three 1,200 lbs tube and sleeve leveling jacks are available for stable deployment. Lifting eye and fork pockets are available on this system. Applications: This portable LED light tower is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of tools and equipment.  Summary of Specifications: Flood Lights • (4) 320-watt diffused LED Fixtures • 43,000 lumens per LED lamp • 172,000 total lumens • Efficiency: 145 lumens per watt (LPW) • Coverage @ 0.5 ft-c: over 19,500 ft2 • IP68 LED modules; IP65 rated drivers • Aluminum and polymer housing • Fixture-mounted drivers • Automated dusk-to-dawn sensor • 7-day scheduler operation Light Mast • 12' to 20' telescoping, fold over light mast • 23' maximum height with LED fixtures • Three stages • Manual winch operation • Powder coated steel Generator • 4 kW single cylinder diesel generator (4kW standby, 3kW with LED lights on) • Direct injection, air cooled • 39.9 gallon poly fuel tank • EPA Final Tier 4 compliant • Electric and manual recoil starter • Receptacles: (2) 120V, (1) L14-30R [120/240V] Trailer • UV resistant steel enclosure • Single-axle trailer • 2" ball hitch • (3) 1,200 lbs tube and sleeve leveling jacks • Lifting eye and fork pockets • Tires: ST175/80D13 • DOT approved LED tail, side, brake, and directional lights |
|  |
