4kW Diesel Generator - 12'-25' Fold Over Tower - Automatic Transfer Switch, Internal Cabling
4kW Diesel Generator - 12'-25' Fold Over Tower - Automatic Transfer Switch, Internal Cabling
| WCDE-4KW-LM25-CTVC-2.N10-ATS-M1 Mobile Equipment Tower | Protection |
| Genset Specs: | Made in the USA |
| Engine: Yanmar Air Cooled, Direct Injection | Buy American Compliant |
| Engine Speed: - | TAA Compliant |
| No. of Cylinders: (1) | 4kW Yanmar Brushless Genset |
| Total Displacement: - | 15 Gallon Fuel Cell |
| HP: - | External Grounding |
| Fuel Type: Diesel | Four Point Outrigger System |
| Fuel Cell Capacity: 15 Gallons | Steel Trailer w/ Industrial Grade Paint Finish |
| Fuel Consumption: - | 125 mph Wind Resistance |
| Alternator: Meccalte Alternator Brushless | Internal Cabling |
| Generator Watts: 4 kW | Automatic Transfer Switch |
| Voltage: 120/240V Single Phase |  |
| Breakers: Mains and Branch |  |
| Receptacles: (2) 20A [120V], (1) 30A NEMA L14-30 [120/240V] |  |
| Starter: Electric and Manual Recoil Starter |  |
| Voltage Meter: Included |  |
| Noise Level: - |  |
|  | |
| Light Mast Specs: |  |
| Mast Type: Telescoping, Fold Over |  |
| Boom Height: 12-25' |  |
| Materials: Steel |  |
| Operation: (2) 1,000lbs Hand Winches, Electric Optional | |
| Cable: 3/16 Aircraft Cable | |
| Stages: 3 | |
| Junction Box Location: Top of Mast | |
| System Specs: | |
| Switch Type: Automatic Transfer Switch | |
| Receptacles: (1) 20A 5-20 Inlet [120V] | |
| Cables: (1) CAT5e, (1) 14/3 AWG Cable Wired to 120V and Protected by a 15A Breaker, (1) 16/3 AWG Cable Wired to 12V and Protected by a 10A Breaker | |
| Cable Feed Location: Internal | |
| Trailer Specs: | |
| Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis | |
| Hitch: 2" ball hitch | |
| Finish: Industrial Grade Paint | |
| Axle: (1) 2,200 lbs | |
| Suspension: 2,000 lbs Double Eye Leaf Springs | |
| Outriggers: (4) Adjustable Outriggers w/ 2,000 lbs Manual Leveling Jacks | Special Orders - Requirements |
| Lighting: DOT Approved tail, side, brake, and directional lights | |
| Wheels: (2) 13" 5x4.5 Steel Rims | |
| Tires: 155R13 | |
| Dimensions: 137" x 93.3" x 53.9" | |
| Weight: - |

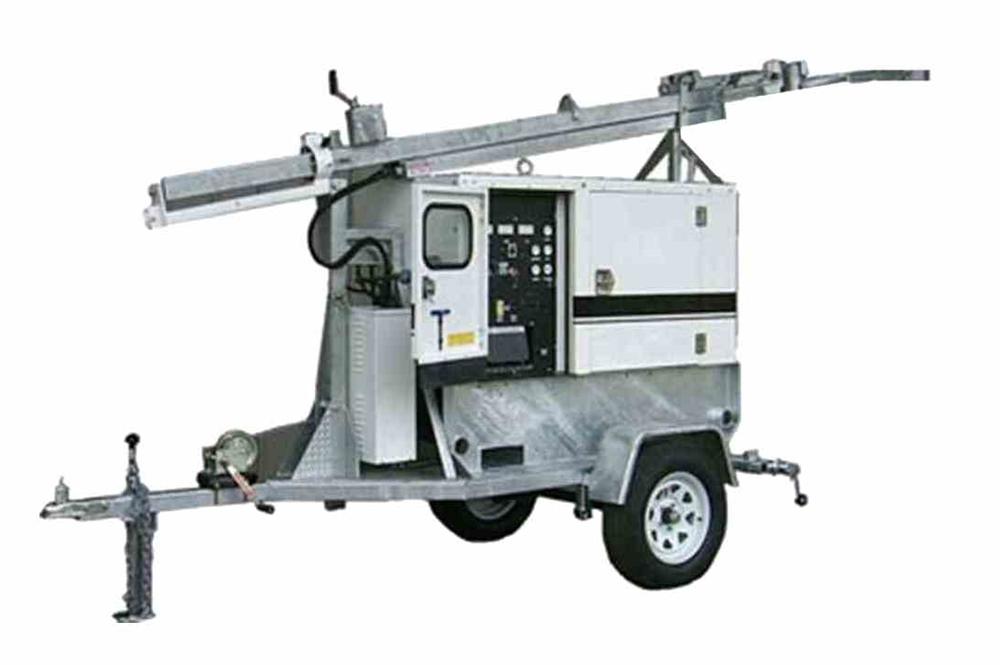

| Made in Texas The WCDE-4KW-LM25-CTVC-2.N10-ATS-M1 mobile light tower from Larson Electronics is a towable lighting package powered by a 4kW generator. Equipped with an automatic transfer switch and internal ran cabling, the telescoping fold-over light tower extends to a maximum height of 25 feet and can be collapsed to 12 feet. All system components are secured to a heavy-duty trailer. This TAA compliant product is made in the USA. The WCDE-4KW-LM25-CTVC-2.N10-ATS-M1 mobile light tower is a reliable solution for deploying equipment in outdoor, remote locations. This unit is supported by a 4,000 watt generator, which supplies the current to customer-provided equipment secured at the top of the tower. The light mast system can provide hours of continuous operation, at extended heights between 12 to 25 feet. This mobile package comes with an automatic transfer switch and internal cabling. An included 4kW generator equipped with an air-cooled motor provides power for equipment. The diesel engine is a Yanmar unit with a single cylinder. This engine features direct injection and an electric/manual recoil starter. A 15 gallon fuel tank allows the engine to operate continuously for extended periods of time without refueling. The 4,000 watt generator is a brushless design and produces 120/240V volt current. Equipped with a volt meter, there are three circuit-breaker protected receptacles on the unit: (2) 20-amp [120V] and (1) 30-amp L14-30 NEMA [120/240V]. Telescoping Boom: The telescoping, fold over three stage steel light mast is designed to allow operators to quickly and safely deploy devices in locations where this equipment must be elevated to heights up to 25 feet for effective coverage. The light boom can be extended to 25 feet for maximum area coverage and collapsed to 12 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, middle section 10 feet in length and 3.5 inches in diameter, and an upper section 7 feet in length and 3 inches in diameter. Each section has 2 foot of overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs winch. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for equipment. Operators may access a junction box at the top of mast for wiring connections. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 12 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with ease, and can typically be rotated with a single hand. Internal Cables: This system is equipped with three cables for wiring and network connections: (1) CAT5e cable, (1) 14/3 AWG cable wired to 120V and protected by 15-amp breaker and (1) 16/3 AWG cable wired to 12V and protected by 10-amp breaker. All cables are internally ran for added protection and convenience. An automatic transfer switch is available for powering equipment using an extension cord from nearby power sources. Operators may plug in a 120V line-in cord to a 20-amp 5-20 inlet on the system for such requirements. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side wing doors provide access to the interior, while latches provide secure closing when the unit is in use. The design and construction of this enclosure helps this unit operate at a low noise level. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. Trailer: The system is mounted onto a two-wheel trailer with a 2,200 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. Included stabilizing outriggers are a four-point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 2,000 lbs swivel jacks for leveling and stabilizing the tower. Applications: This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of tools and equipment.  |
|  |
