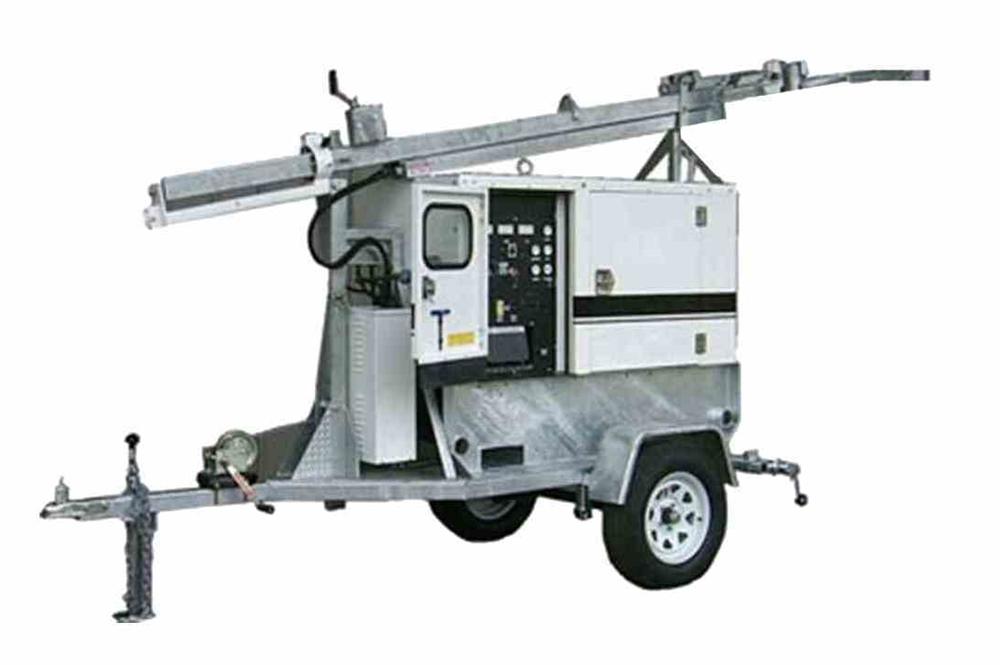

30' Mobile Metal Halide Light Tower with Diesel Engine Generator - (4) MH Lights - 6kw Genset, 30 Gal. Poly Fuel Tank

LARSON ELECTRONICSSKU: PL3-WCDE-6K-4X1000W-MH-M2
filler

Precio:
Precio de venta$58,946.00

Descripción

Specifications / Additional Information
WCDE-6K-4X1000W-MH-M2 Mobile Light Tower Ratings/Features
Genset Specs: Made in the USA
Engine: Liquid Cooled Buy American Compliant
No. of Cylinders: (3) TAA Compliant
RPM: 1,800 30' Light Mast
HP: 12.2 HP Standby, 10.5 HP Prime @ 1,800 RPM 6kW Brushless Genset
Displacement: 0.95 L 30 Gallon Poly Fuel Tank
Fuel Type: Diesel Leveling Jacks
Fuel Cell Capacity: 30 Gallon Poly Fuel Tank w/ Large Diameter Opening UV Resistant Steel Enclosure
Fuel Consumption (Prime): 0.50 gph (1.89 Lph) 125 mph Wind Resistance
Operating Capacity: 60 Hours (4) Metal Halide Lamps
Fill Port: 1/2" AC and DC Wiring Diagrams
Frequency(Engine/Generator): 60Hz
Brushless Generator Watts: 6 kW Standby
Voltage: 120/240V AC
Voltage Regulation: +/-6% Capacitor
Amps: 50A @ 120V, 25A @ 240V
Receptacles: (1) 30A NEMA L6-30R Twist-lock [240V], (1) 20A NEMA 5-20R GFCI Duplex [120V]
Wet Cell Battery: 440 CCA
Noise Level: 68 dB(A) at 23-ft – Prime Power
Engine Controls: 4-position Keyed Switch - Glow Plugs (Preheat, Off, Run, Start), Hour Meter, Automatic Oil/High Temperature Shutdown System
Control Panel Type: Engraved, Aluminum Punched and Anodized Control Panel
Filters: Full Flow Spin-on Oil Filter, Fuel Filter w/ Replacement Element, Dry Type Cartridge Air Filter
Cooling System: Capable of Operating at 120°F
Exhaust: Industrial Engine Exhaust System
Safety: Rubber Vibration Dampeners Isolate Engine/Generator From Frame

Light Mast Specs:
Mast Type: Telescoping
Boom Height: 30'
Rotation: 360° Rotation w/ Locking System
Materials: Tubular Steel w/ Urethane Guides on All Sides of Mast Tubes
Finish: Industrial Black Powder Coat Finish
Operation: (2) 1,500lbs Automatic Self-braking Dual Winches at Ergonomic Height
Cable: 3/16 Aircraft Cable
Locking System: Automatic Locking System in Horizontal Position for Travel
Stages: 3

Light Specs:
Lamp Qty: (4)
Lamp Type: Metal Halide
Total Watts: 4,000W
Single-lamp Watts: 1,000W
Luminous Efficacy: -
MH Life Expectancy: 25,000+ hours
Controls: Individual Flood Light On/Off Switches
Beam Angle: Flood
Protection: Individual Light Circuits w/ 15A Breakers, Ballast Indicator Lights, 30A Start Limit Breaker
Reflector: Oval Aluminum Reflector
Lamp Housing Material: -
Lens: Tempered Glass Lens
Gaskets: Silicone Gasket
Mount: Adjustable Brackets/Tower Mount
Cord: Coiled Mast Cord

Trailer Specs:
Materials: 14 Gauge Steel Enclosure, Stainless Steel Hinge Doors
Finish: UV and Fade Resistant, High Temperature Cured, White Polyester Powder Paint
Mast Support: 3" Square Tube, 1/4" Wall
Split Hitch: 2" Ball Hitch, Pintle Hook Lunette
Tongue: 48" Removable
Transport: Single Lifting Eye, Fork Pockets, Safety Chains w/ Spring Loaded Safety Hooks
Axle: 2,200-lb. Leaf Spring Axle, 40.75" Axle Span
Side Outriggers: 8' 1/4" Span
Leveling Jacks: (4) 2,000-lb Adjustable Leveling Jacks – 4-point Stance; Transport and Lock in Horizontal Position
Lighting: DOT Approved Tail, Side, Brake, and Directional Lights, Recessed Rear Lights
Fenders: Single Wall Polyethylene Special Orders - Requirements
Tires: ST175/80D13 – 6 ply
Wheels: (2)
Decals: Multi-lingual Operating/Safety
License Plate Holder: Included w/ Light
Manual Holder: Included w/ Operating Manual
' Product Overview '
Made in Texas The WCDE-6K-4X1000W-MH-M2 Mobile Metal Halide Light Tower from Larson Electronics is a towable lighting package powered by a 6kW generator. Equipped with four metal halide lamps, the telescoping light tower extends to a maximum height of 30 feet. All system components are secured to a heavy-duty trailer with DOT-approved lights. This TAA compliant product is made in the USA. The WCDE-6K-4X1000W-MH-M2 mobile light tower is a reliable solution for deploying wide-area lighting in outdoor, remote locations. This unit is supported by a 6,000 watt generator, which supplies the current to four metal halide lights secured at the top of the tower. The light mast system can provide 60 hours of continuous operation, at a maximum height of 30 feet. This mobile package comes with a license plate holder with lights and a manual holder with an operating manual. An included generator (6kW standby) provides power for the four metal halide lights and equipment. The diesel engine is a brushless unit with three cylinders. A 30-gallon poly fuel tank allows the engine to operate continuously for up to 60 hours without refueling. The 6,000 watt generator produces 120/240V volt current. There are two receptacles on the unit: (1) L6-30R and (1) GFCI duplex 5-20R. Light Fixtures: This portable light tower is equipped with four, 1,000-watt metal lamps. The flood lights have oval aluminum reflectors and are protected by tempered glass lens and silicone gaskets for moisture and dust protection. There are individual flood light on/off switches for control. Equipped with ballast indicator lights, each metal halide lamp is protected by a 15-amp breaker. This unit also features a 30-amp start limit breaker. Telescoping Boom: The three stage steel light mast is designed to allow operators to quickly and safely deploy four metal halide lights in locations where this equipment must be elevated to heights up to 30 feet for effective coverage. This powder coated black light boom can be extended to 30 feet for maximum area coverage and collapsed for applications where a smaller footprint is required. The tower is constructed of square steel tubing and feature urethane guides on all sides of the mast tubes. The mast is elevated using an included dual winch system consisting of 1,500 lb automatic self-braking winches. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the metal halide lights. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with ease, and can typically be rotated with a single hand. Housing: All of the operating components are housed within a protective compartment constructed of UV resistant steel and provides airflow for cooling. The design and construction of this enclosure helps this unit operate at a low noise level. This system features stainless steel hinged doors. Trailer: The system is mounted onto a two-wheel trailer with DOT-approved tail, side, brake and directional lights. A standard two-inch ball coupling and two standard safety chains with spring loaded hooks allow for easy hookup and towing. Four adjustable leveling jacks and side outriggers are accessible for stable deployment. Lifting eye and fork pockets are available on this system. Applications: This portable light tower is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of tools and equipment.   Summary of Specifications: Flood Lights
  • (4) light fixtures – 1000 watts each – metal halide
  • Oval aluminum reflector
  • Tempered glass lens
  • Silicone gaskets for moisture and dust protection
  • Individual floodlight On/Off switches
Light Mast
  • 30-ft maximum extension, 3-section, tubular steel
  • Urethane guides on all sides of mast tubes
  • Industrial black powder coat finish
  • Automatic locking system in horizontal position for travel
  • 1500-lb automatic self-braking winches
  • 360° rotation with locking system
  • Coiled mast cord
  • Dual winch system located at ergonomic height allowing single person operation
  • Equipped with single lifting eye and fork pockets
Generator
  • Standby – 12.2 hp @ 1800 rpm
  • Prime – 10.5 hp @ 1800 rpm
  • 3 cylinder
  • 0.95 L displacement
  • Fuel consumption (prime) – 0.50 gph (1.89 Lph)
  • 60 Hz engine/generator
  • Industrial engine exhaust system
  • Rubber vibration dampers isolate engine/generator from frame
  • Cooling system capable of operating at 120°F
  • Full flow oil filter, spin on type
  • Fuel filter with replacement element
  • Dry type cartridge air filter
  • Polyethylene fuel tank with large diameter opening
  • 30-gal capacity
  • 60-hr run capacity
  • 3 ½-in fill port
  • Brushless Generator
  • 6 kW standby output
  • 120/240 VAC – 50/25A
  • +/-6% capacitor voltage regulation
  • 68 dB(A) at 23-ft – prime power
Engine Controls
  • Engraved, aluminum punched and anodized control panel
  • Four (4) position keyed switch – glow plugs (preheat, off, run, start)
  • Hour meter
  • Automatic low oil/high temperature shutdown system
Electrical System/Light Controls
  • Individual floodlight circuits with 15A breakers
  • Ballast indicator lights
  • 30A start limit breaker
  • Receptacles- (1) 120 VAC 20 Amp GFCI duplex outlets (Nema 5-20R type), (1) 240 VAC 30 Amp twist-lock outlets (Nema L6-30R type)
  • 440 CCA wet cell battery
Wiring
  • All wiring is sized to the amperage draw required
  • AC and DC wiring diagrams are provided
Trailer
  • Steel enclosure – 14-gauge
  • UV and fade resistant, high temperature cured, white polyester powder paint
  • Stainless steel hinges on doors
  • Multi-lingual operating/safety decals
  • License plate holder with light
  • Manual holder with operating manual
  • Mast support – 3-in square tube, 1/4-in wall
  • Removable tongue – 48-in long
  • Tubular steel frame – 3/16-in wall
  • Four (4) 2,000-lb adjustable leveling jacks – 4-point stance
  • All jacks transport and lock in horizontal position for storage
  • Side outriggers – 8-ft 1/4-in span
  • Safety chains with spring loaded safety hooks
  • Split hitch; 2-in ball hitch and pintle hook lunette
  • Single wall polyethylene fenders
  • DOT approved tail, side, brake, and directional lights
  • 2,200-lb. leaf spring axle
  • ST175/80D13 – 6 ply
  • 40.75-in axle span
