25' Mobile Metal Halide Light Tower w/ Diesel Engine Generator - (4) MH Lights - 8kw Genset, 50 Gal. Poly Fuel Tank
25' Mobile Metal Halide Light Tower w/ Diesel Engine Generator - (4) MH Lights - 8kw Genset, 50 Gal. Poly Fuel Tank
Precio habitual
$71,600.00 CAD
Precio habitual
Precio de oferta
$71,600.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| WCDE-8K-4X1000W-MH-M3 Mobile Light Tower | Ratings/Features |
| Genset Specs: | Made in the USA |
| Engine: Liquid Cooled,  EPA Tier 4 | Buy American Compliant |
| No. of Cylinders: (3) | TAA Compliant |
| RPM: 1,800 | 25' Light Mast |
| HP: 15 HP Standby, 13 HP Prime @ 1,800 RPM | 8kW Brushless Genset |
| Displacement: 0.95 L | 50 Gallon Poly Fuel Tank |
| Fuel Type: Diesel | Leveling Jacks |
| Fuel Cell Capacity: 50 Gallon Poly Fuel Tank w/ Ext. Fill Port 3.5" Diameter, Fuel Filter w/ Replacement Element | UV Resistant Steel Enclosure |
| Fuel Consumption (Prime): 0.50 gph (1.89 Lph) | 65 mph Wind Resistance |
| Operating Capacity: 60 Hours | (4) Metal Halide Lamps |
| Fill Port: 3.5" | AC and DC Wiring Diagrams |
| Frequency (Engine/Generator): 60Hz |  |
| Brushless Generator Watts: 8 kW Standby |  |
| Voltage: 120/240V AC |  |
| Voltage Regulation: +/-6% Capacitor |  |
| Amps: 50A @ 120V, 25A @ 240V |  |
| Receptacles: (1) 30A NEMA L6-30R Twist-lock [240V], (1) 20A NEMA 5-20R GFCI Duplex [120V] |  |
| Wet Cell Battery: 440 CCA |  |
| Noise Level: 68 dB(A) at 23-ft – Prime Power |  |
| Engine Controls: 4-position Keyed Switch - Glow Plugs (Preheat, Off, Run, Start), Hour Meter, Automatic Oil/High Temperature Shutdown System |  |
| Control Panel Type: Engraved, Aluminum Punched and Anodized Control Panel |  |
| Lubricating: Full Flow Spin-on Oil Filter |  |
| Cooling System: Dry Type Air Filter Cartridge, Capable of Operating at 120°F |  |
| Exhaust: Industrial Engine Exhaust System |  |
| Safety: Rubber Vibration Dampeners Isolate Engine/Generator From Frame |  |
|  |  |
| Light Mast Specs: |  |
| Mast Type: Telescoping |  |
| Boom Height: 25' |  |
| Rotation: 360° Rotation w/ Locking System |  |
| Materials: Vertical Tubular Steel Frame w/ Urethane Guides on All Sides of Mast Tubes |  |
| Finish: Industrial Black Powder Coat Finish |  |
| Operation: Electric Winch, 950 lb Self-braking, Ground Level Rotation w/ Locking System |  |
| Cable: 3/16 Aircraft Cable | |
| Locking System: Automatic Locking System in Horizontal Position for Travel | |
| Stages: 3 | |
|  |  |
| Light Specs: | |
| Lamp Qty: (4) | |
| Lamp Type: Metal Halide | |
| Total Watts: 4,000W | |
| Single-lamp Watts: 1,000W | |
| Luminous Efficacy: 120 lm/w | |
| MH Life Expectancy: 25,000+ hours | |
| Controls: Individual Flood Light On/Off Switches | |
| Beam Angle: Flood | |
| Protection: Individual Light Circuits w/ 15A Breakers, Ballast Indicator Lights, 30A Start Limit Breaker | |
| Reflector: Round Aluminum Reflector | |
| Lamp Housing Material: - | |
| Lens: Tempered Glass Lens | |
| Gaskets: Silicone Gasket for Moisture/Dust Protection | |
| Mount: Adjustable Brackets/Tower Mount, Friction Disk Mounting | |
| Cord: Coiled Mast Cord | |
|  |  |
| Trailer Specs: | |
| Materials: 14 Gauge Steel Enclosure, Stainless Steel Hinge Doors | |
| Finish: UV and Fade Resistant, High Temperature Cured, White Polyester Powder Paint | |
| Mast Support: 3" Square Tube, 1/4" Wall | |
| Split Hitch: 2" Ball Hitch, Pintle Hook Lunette | |
| Tongue: 48" Removable | |
| Transport: Single Lifting Eye, Fork Pockets, Safety Chains w/ Spring Loaded Safety Hooks | |
| Axle: 2,200-lb. Leaf Spring Axle, 40.75" Axle Span | |
| Side Outriggers: 8' 1/4" Span | |
| Leveling Jacks: (4) 2,000-lb Adjustable Leveling Jacks – 4-point Stance; Transport and Lock in Horizontal Position | |
| Platform: Front Step | |
| Lighting: DOT Approved Tail, Side, Brake, and Directional Lights, Recessed Rear Lights | |
| Fenders: Single Wall Polyethylene | Special Orders - Requirements |
| Tires: ST175/80D13 – 6 ply | |
| Wheels: (2) | |
| Decals: Multi-lingual Operating/Safety | |
| License Plate Holder: Included w/ Light | |
| Manual Holder: Included w/ Operating Manual |

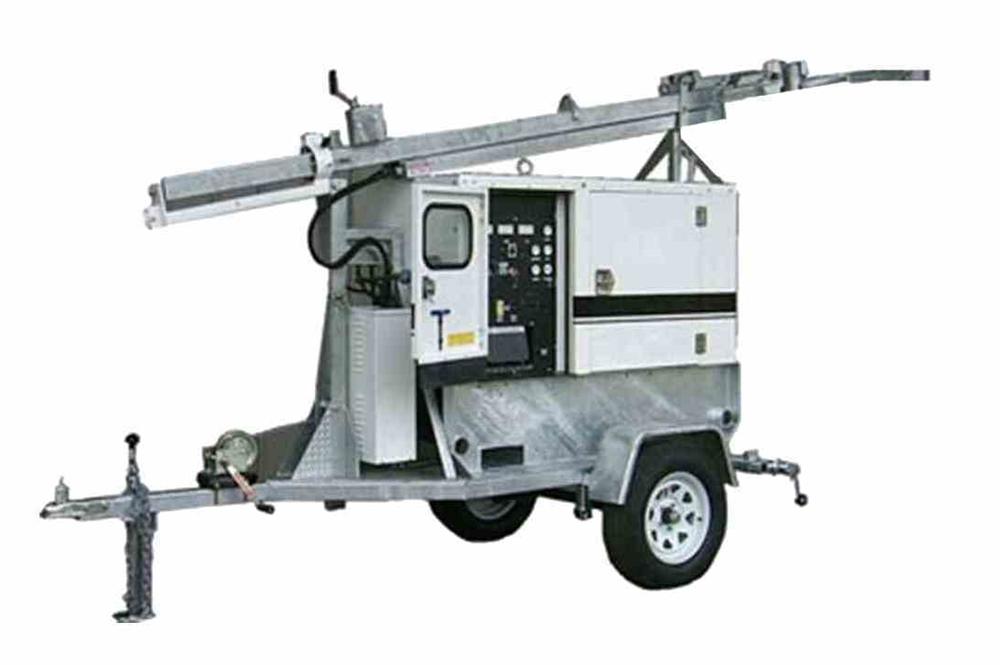

| Made in Texas - Made in USA The WCDE-8K-4X1000W-MH-M3 Mobile Metal Halide Light Tower from Larson Electronics is a towable lighting package powered by an 8kW generator. Equipped with four metal halide lamps, the telescoping light tower extends to a maximum height of 25 feet. All system components are secured to a heavy-duty trailer with DOT-approved lights. This TAA compliant product is made in the USA. The WCDE-8K-4X1000W-MH-M3 mobile light tower is a reliable solution for deploying wide-area lighting in outdoor, remote locations. This unit is supported by an 8,000 watt generator, which supplies the current to four metal halide lights secured at the top of the tower. The light mast system can provide 60 hours of continuous operation, at a maximum height of 25 feet. This mobile package comes with a license plate holder with lights and a manual holder with an operating manual. An included generator (8kW standby) provides power for the four metal halide lights and equipment. The diesel engine is a brushless unit with three cylinders. A 50-gallon poly fuel tank allows the engine to operate continuously for up to 60 hours without refueling. The 8,000 watt generator produces 120/240V volt current. There are two receptacles on the unit: (1) L6-30R and (1) GFCI duplex 5-20R. Light Fixtures: This portable light tower is equipped with four, 1,000-watt metal lamps. The flood lights have round aluminum reflectors and are protected by tempered glass lens and silicone gaskets for moisture and dust protection. There are individual flood light on/off switches for control. Equipped with ballast indicator lights, each metal halide lamp is protected by a 15-amp breaker. This unit also features a 30-amp start limit breaker. Telescoping Boom: The three stage steel light mast is designed to allow operators to quickly and safely deploy four metal halide lights in locations where this equipment must be elevated to heights up to 25 feet for effective coverage. This powder coated black light boom can be extended to 25 feet for maximum area coverage and collapsed for applications where a smaller footprint is required. The tower is constructed of vertical tubular steel frame and features urethane guides on all sides of the mast tubes. The mast is elevated using an included electric winch system (950 lb self-braking). A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast, which provides a strong and stable platform for the metal halide lights. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered, the mast can withstand winds up to 65 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with ease, and can typically be rotated with a single hand. Housing: All of the operating components are housed within a protective compartment constructed of UV resistant steel and provides airflow for cooling. The design and construction of this enclosure helps this unit operate at a low noise level. This system features stainless steel hinged doors. Trailer: The system is mounted onto a two-wheel trailer with DOT-approved tail, side, brake and directional lights. A standard two-inch ball coupling and two standard safety chains with spring loaded hooks allow for easy hookup and towing. Four adjustable leveling jacks and side outriggers are accessible for stable deployment. A front step platform, lifting eye and fork pockets are available on this system. Applications: This portable light tower is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of tools and equipment.  Summary of Specifications: ENGINE: Diesel fueled, EPA Tier 4, 3-cylinder, liquid cooled. 13 HP prime, 15 HP standby FUEL: Polyethylene tank – 50 gallon tank minimum, ext. fill port 3.5 in diameter, fuel filter with replaceable element COOLING: Dry type air filter cartridge, capable of operating at 120 degrees ambient LUBRICATING: Full flow spin–on type oil filter GENERATOR: 60 HZ brushless, up to 8 kW output, 120/240V AC, 50/25A, +/- 6% capacitor voltage regulation LIGHTING: Four 1,000 watt metal halide, 120 LPW efficiency, round aluminum reflector, silicone gaskets for moisture dust protection, friction disc mounting, Individual floodlight on/off switches MAST: Wind rating of 65MPH, 25ft vertical tubular steel frame, electric winch, 950lb self breaking. Ground level rotation with locking system TRAILER: Front step platform, removable tongue, (4) adjustable leveling jacks – 4 point stance that lock in horizontal for storage, side outriggers, DOT approved lights |
