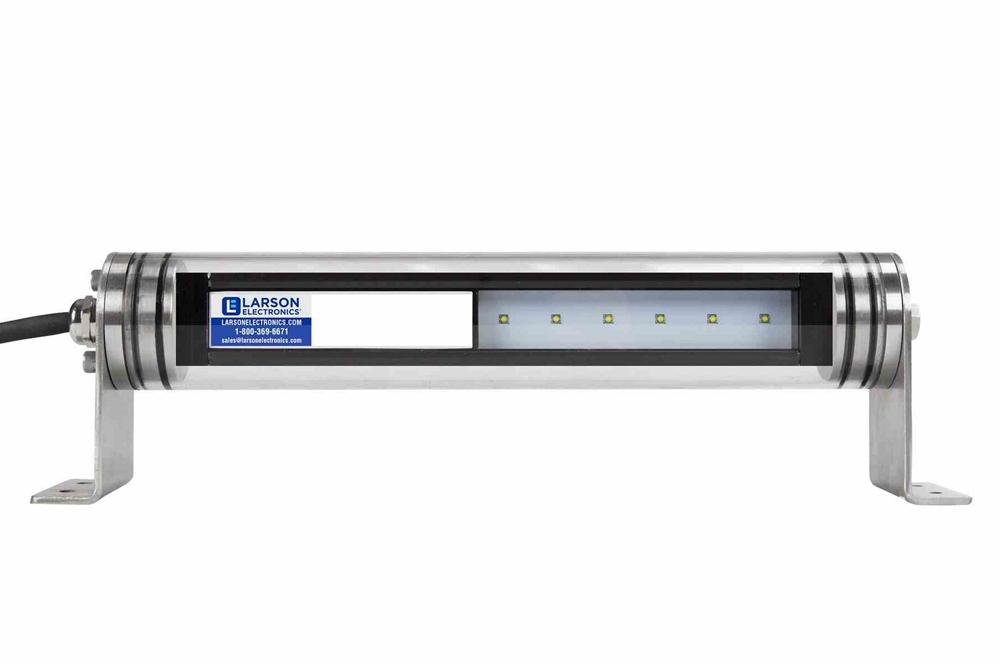

10 Watt LED Machine Vision Light - Adjustable Tube Light - 1250 Lumens - 120-240V AC 50/60 Hz - Food Safe

LARSON ELECTRONICSSKU: PL3-WDL-12-IPS-LED-1227
filler

Precio:
Precio de venta$1,376.00

Descripción

Specifications / Additional Information
WDL-12-IPS-LED-1224 LED Vision LED Light Ratings/Approvals
Lamp Type: LED UL 1598
Dimensions:  25"L x 2.5"W x 4"H CSA 22.2 No. 250.0
Weight: 6 lb IP67 Rated
Voltage: 120-240V AC 50/60 Hz Sanitation / Food Safe Suitable
Watts: 10
Lumens: 1,300
Lamp Life Expectancy: 100,000+ Hours
Color Temperature: 5,000K
CRI: 80
Beam Type: 100° Flood or 30° Spot
Amps: 0.09A @120V DC, 0.42A @ 240V DC
Operating Temp Range: -40°C to +85°C
Housing Materials: CNC machined aluminum end caps and mounting brackets
Lens Materials: Polycarbonate
Gasket Material: Silicone O-Rings Toll Free: 1-800-369-6671
Mounting: Surface Mount via L Brackets Intl: 1-903-270-1187
Wiring: 5" 16/3 SOOW Cord w/ flying leads E-mail:

' Product Overview '
The WDL-12-IPS-LED-1224 low profile LED light from Larson Electronics is a compact luminary designed for machine vision applications. This low voltage machine light emits a total of 1,300 during operation, with a color temperature rating of 5,000K. This LED light features an adjustable surface mount and constructed of CNC billet aluminum with a polycarbonate lens and double o-ring gasket, making it ideal for wash-down and food service applications. The WDL-24-IPS-LED-1224 is designed for machine vision lighting installations in compact spaces. The 10-watt explosion proof LED light operates on 120-240V AC 50/60 Hz low voltage. During operation, the unit emits 1,300 of white light with a color temperature rating of 5,000K. For increased accuracy and detection, the luminary comes with a CRI rating of 80+. This light comes in a 100° flood beam configuration for wide area illumination or a 30° spot beam configuration for focused illumination. The WDL-12-IPS-LED-1224 is wash-down and sanitation environments. This unit carries an IP67 waterproof rating, which ensures protection against limited ingress from dust, dirt, oil and full protection against water directly sprayed at high pressure. The no glass assembly makes this unit a perfect fit for food service machine systems. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. Solid state LED lighting is also safer for the environment as LEDs are 100% recyclable. And recycling simultaneously reduces operating costs by eliminating the need for the expensive special disposal services required with traditional gas burning and arc type lamps. Durability: The WDL-12-IPS-LED-1224 LED assembly constructed of extruded aluminum for rigidity and even heat dissipation. This LED assembly is then housed within a polycarbonate cylinder, protected by aluminum end caps with double o-ring seals on each end. The industrial housing provides an IP67 ingress protection against dust and protection against high pressure water spray that are experienced in wash-down applications. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where dampness or dusty conditions are regularly encountered. Wiring/Power: These machine vision LED lights are equipped with 5" 16/3 SOOW cord containing a standard two-wire (positive/negative) connecting configuration. These wash-down lights are universal voltage capable, operating on AC 50/60 Hz voltages from 11-25 volts for machine vision systems. Each WDL-12-IPS-LED-1224 draws 10 watts at 0.09 amps on 120V DC or 0.42 amps on 240V DC. Mounting: Mounting for this LED machine light is provided by two L bracket mounting tabs that allow operators to mount the light to flat surfaces. Once mounted, the WDL-24-IPS-LED-1224 can be adjusted 180° and locked into place via end cap set screws. The entire assembly weighs 6 lb and measures 15" long, 2.5" wide and 4" tall, making it ideal for mounting in areas where space is limited and a low profile fixture is required. Applications: Machine vision lighting, industrial automation, industrial manufacturing, inspections, labeling, verification, quality assurance and more.
