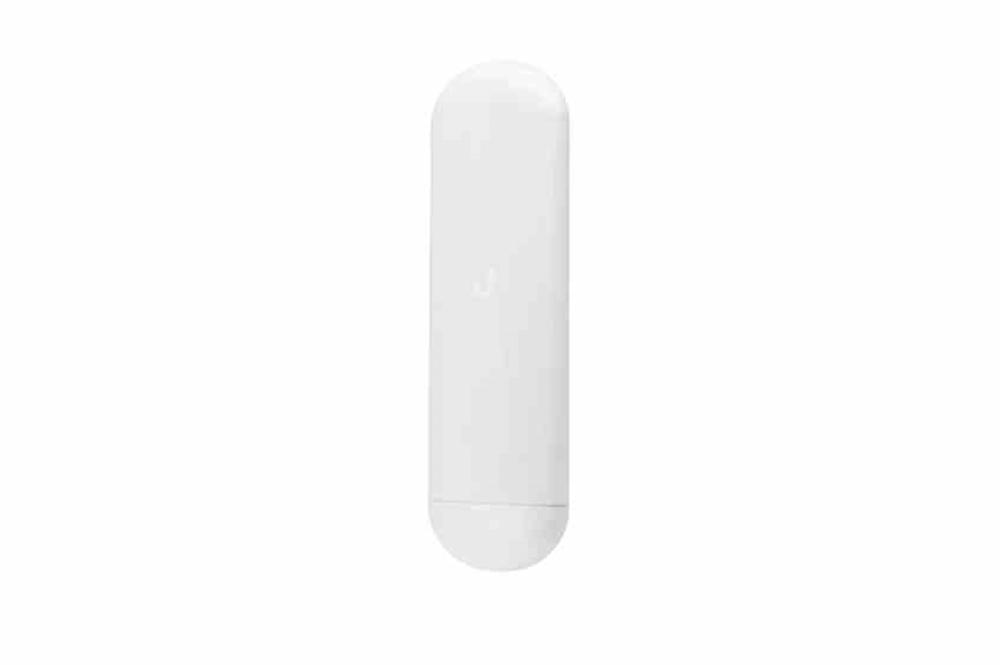

9W Wireless Antenna Radio - 24V/PoE - 5 GHz, 16dBi - (2) Ethernet Ports - Pole Mount
9W Wireless Antenna Radio - 24V/PoE - 5 GHz, 16dBi - (2) Ethernet Ports - Pole Mount
| XLE-NT-WR-WP-PM-R1-5GHZ Wireless Antenna - 5GHZ | Summary |
| Unit Type: Wireless Antenna Radio | RoHs Compliant |
| Dimensions: 10.12 x 3.31 x 1.18" (w/o Mount) | Requires 2 Units for Complete Link |
| Weight: 8.22 oz | Power Supply Included |
| Watts: 9W | Â |
| Voltage: 24V w/ 0.5A Gigabit PoE Supply (Included) | Â |
| Power Method:Â 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) | Â |
| Gain: 16 dBi | Â |
| Network Interface:Â (2) 10/100/1000 Mbps Ethernet Ports | Â |
| Channel Bandwidth: 10/20/30/40/50/60/80 MHz | Â |
| Processor Specs: Atheros MIPS 74Kc, 560 MHz | Â |
| Memory: 64 MB DDR2 | Â |
| Cross-pol Isolation: 20 dB Minimum | |
| Max VSWR: 1.6:1 | |
| Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation) | |
| Polarization: Dual Linear | |
| LEDs:Â (1) Power, Eth1, Eth2; (1) Signal Strength | |
| Ambient Temperature Range: -40°F to 158°F | |
| Housing Materials: Polycarbonate | |
| Mounting: Pole Mount - Mounting Kit Included | |
| Wiring: - |
| The XLE-NT-WR-WP-PM-R1-5GHZ Wireless Antenna Radio from Larson Electronics facilitates wireless signals for connection between remote devices and systems. This compact unit is compatible with 24V PoE and features two ethernet ports. Protected by a UV resistant polycarbonate housing, the system is suitable for pole mounting installations (mounting hardware included). A complete link requires two units (this product comes with one unit). Camera Features: The XLE-NT-WR-WP-PM-R1-5GHZ offers wireless signal and connections in areas where wired/cable connections cannot be used or implemented. This 9-watt unit operates on 24V PoE and comes with a 0.5A gigabit PoE power supply. Operators may access two ethernet ports on the 5Ghz antenna radio. There are two LED lights that provide real-time status of power and signal strength. Protected by a UV-resistant polycarbonate housing, a complete link requires two units (this product comes with one unit). Mounting: The XLE-NT-WR-WP-PM-R1-5GHZ is compatible with pole mounting installations (mounting hardware included). Applications: Security systems, remote surveillance, general locations, law enforcement, police, indoor facilities, commercial establishments, monitoring, military, industrial sites and more. |
| Â |
