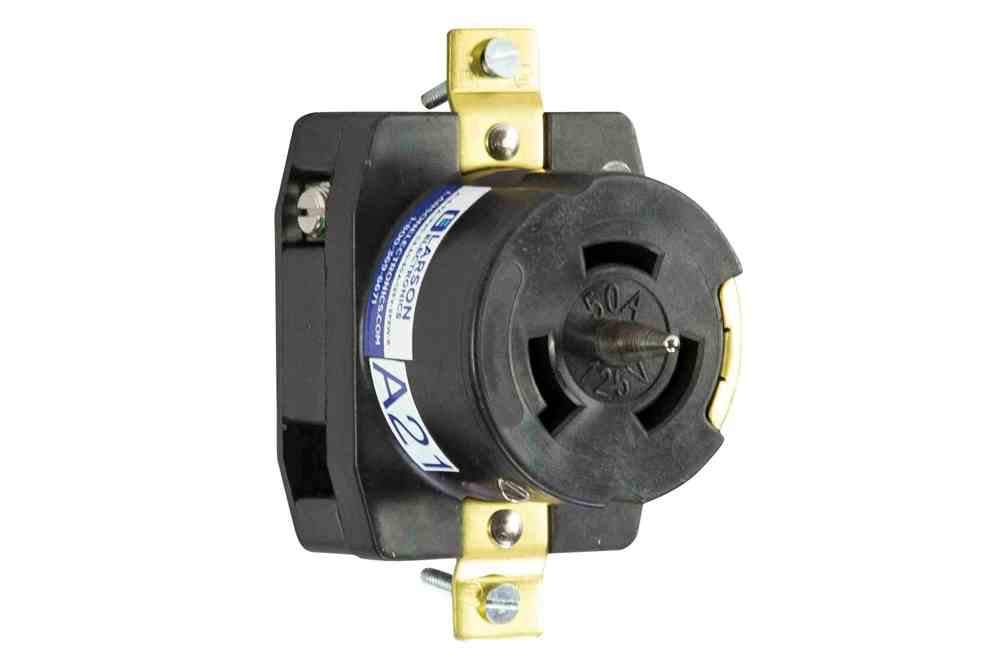

Larson California Standard CS8269, Twist-Lock 50-Amp Female Receptacle, 250V 1PH 2P3W, IP20

Larson ElectronicsSKU: PL3-XLE-PA-IP20-CS.50-50A-1PH-250V-2P3W-R
filler

Precio:
Precio de venta$220.00

Descripción

The XLE-PA-IP20-CS.50-50A-1PH-250V-2P3W-R from Larson Electronics is a California Standard CS8269 Receptacle for completing electrical connections and power distribution systems. This 2-pole, 3-wire accessory accepts 10-6 AWG terminal gauges and 0.830"-1.25" cord diameters. Listed for the US and Canada, the 50-amp unit operates on 250V 1-Phase AC 50/60 Hz.
The Larson Electronics XLE-PA-IP20-CS.50-50A-1PH-250V-2P3W-R is a California Standard 50-amp rated twist lock Female Receptacle for industrial applications. Capabile of supporting up to 12500W, this 50-amp XLE-PA-IP20-CS.50-50A-1PH-250V-2P3W-P is cross compatible with CS8269, operates on 250V 1-Phase AC and operates on a 2-pole, 3-wire configuration. Capable of withstanding a dielectric voltage of 2,000V (minimum), the accessory accepts a terminal gauge size of 10-6 AWG and a cord diameter range of 0.830"-1.25". The device is constructed from durable materials with stainless steel, polyester and brass hardware, for a long-lasting wiring device solution.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Type: California Standard 50A Twist Lock Receptacle
Dimensions:
Weight: 1.2 lbs
Voltage: 250V AC
Amps: 50A
Max Wattage: 12500W
Configuration: 2-pole, 3-wire
Gender: Female
Dielectric Voltage Withstand: 2,000V Minimum
Operating Temperature: -40°C to +75°C
Color: Black/White
Housing Material: Black Supertough Nylon
Hardware Material: Stainless Steel, Polyester, Brass
Terminal Gauge Accepted: 10-6 AWG
Cord Diameter Accepted: 0.830"-1.25"
