Full-Bridge Motor Driver Breakout - L298N

SparkFunSKU: PL4-BOB-09540
filler

Precio:
Precio de venta$13.99

Descripción

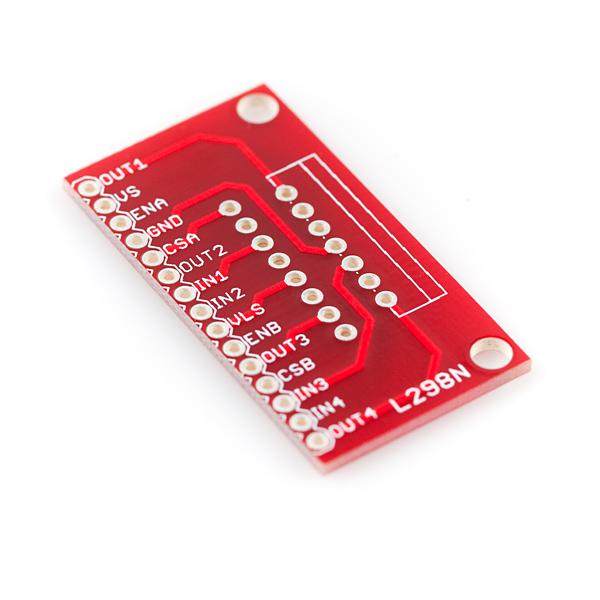

This is a breakout board for the [L298N](http://www.sparkfun.com/commerce/product_info.php?products_id=9479) full-bridge dual motor driver; which comes in a staggered, Multiwatt package.

All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.

**Features:**

* Board: 1.6x0.85 inches

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_Full_Bridge_Motor_Driver_Breakout-L298N.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_Full_Bridge_Motor_Driver_Breakout-L298N.zip)
* [Datasheet](http://www.sparkfun.com/datasheets/Components/General/L298N.pdf) (L298N)
* [GitHub](https://github.com/sparkfun/Full_Bridge_Motor_Driver_Breakout-L298N/tree/V_1.2) (Design Files)
