OpAmp Breakout - LMV358

SparkFunSKU: PL4-BOB-09816
filler

Precio:
Precio de venta$24.99

Descripción

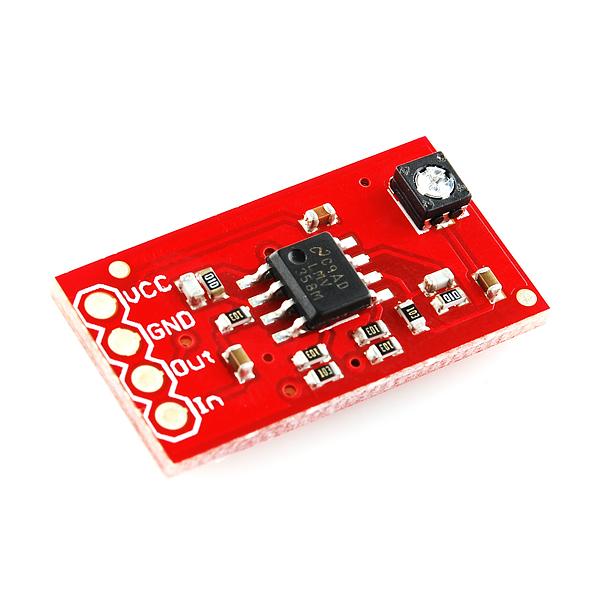

This is a simple 5V Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage). The on-board trim pot sets the signal level between the stages, not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors, or over 100kHz with the caps removed. The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer.

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_OpAmp_Breakout-LMV358.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_OpAmp_Breakout-LMV358.zip)
* [Introduction to Op Amps with LTSpice](https://learn.sparkfun.com/tutorials/introduction-to-operational-amplifiers-with-ltspice)
* [Datasheet](http://focus.ti.com/lit/ds/symlink/lmv324.pdf) (LMV358)
* [GitHub](https://github.com/sparkfun/OpAmp_Breakout-LMV358/tree/V_1.6) (Design Files)
