ATmega328 with Arduino Optiboot (Uno)

PuriLiteSKU: PL4-DEV-10524
filler

Precio:
Precio de venta$25.99

Descripción

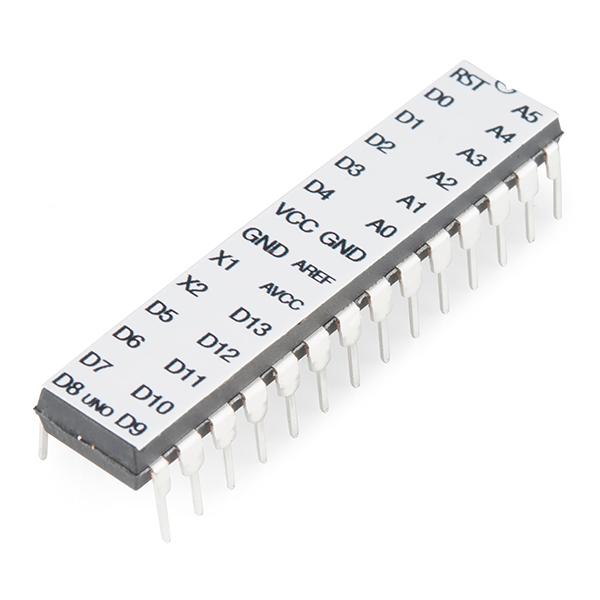

The name says it all on this one. An ATmega328P in DIP package, pre-loaded with the Arduino Optiboot (Uno 16MHz) Bootloader. This will allow you to use Arduino code in your custom embedded project without having to use an actual Arduino board.

To get this chip working with Arduino IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial connection. If you are not comfortable doing this, we recommend purchasing the [Arduino Uno](http://www.sparkfun.com/products/11021) board that has all of these built into the board.

Atmel's ATMega328P 8-Bit Processor in 28 pin DIP package. It's like the ATmega168, with double the flash space. 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC. Runs up to 20MHz with external crystal. Package can be programmed in circuit. 1.8V to 5V operating voltage!

**Note:** This microcontroller is in fact the ATmega328P, not the original ATmega328 and contains the bootloader used on the Arduino Uno, with small modifications to work more reliably with different serial connection options (mainly the FTDI). Check the link below for more information.

**Documents:**

* [Datasheet](https://cdn.sparkfun.com/assets/1/1/9/c/b/Atmel-42735-8-bit-AVR-Microcontroller-ATmega328-328P_Datasheet.pdf)
* [Arduino Home Page](http://www.arduino.cc/)
* [Programming Reference](http://www.arduino.cc/en/Reference/HomePage)
* [Optiboot Change Info](http://code.google.com/p/optiboot/issues/detail?id=28#makechanges)
* [Low Power Mode Tutorial](http://www.sparkfun.com/tutorials/309)
