MicroMod RP2040 Processor

SparkFunSKU: PL4-DEV-17720
filler

Precio:
Precio de venta$43.99

Descripción

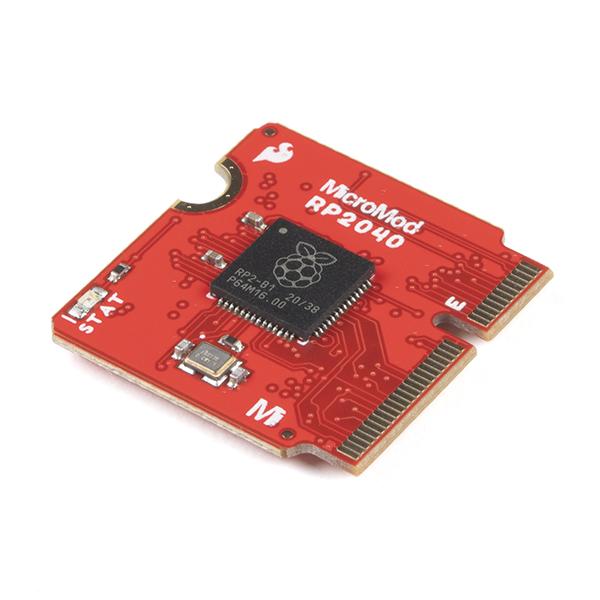

The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. With the MicroMod M.2 connector, connecting your MicroMod Pi RP2040 Processor Board is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards).

The RP2040 utilizes dual ARM Cortex-M0+ processors (up to 133MHz):

* 264kB of embedded SRAM in six banks
* 6 dedicated IO for SPI Flash (supporting XIP)
* 30 multifunction GPIO:
* Dedicated hardware for commonly used peripherals
* Programmable IO for extended peripheral support
* Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
* USB 1.1 Host/Device functionality

The RP2040 is supported with both C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. The built-in USB can act as both device and host. It has two symmetric cores and high internal bandwidth, making it useful for signal processing and video. While the chip has a large amount of internal RAM, the board includes an additional external flash chip.

***

*[MicroMod](https://www.sparkfun.com/micromod) is a modular interface ecosystem that connects a microcontroller œprocessor board to various œcarrier board peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!*

***

->
* 2x SPI
* 29x GPIO
* 2x Digital Pins
* 3x Analog Pins
* 16x PWM
* 128Mbit/16MB (external) flash memory
* Status LED
* VIN Level ADC

**Documents:**

**MicroMod Pi RP2040 Processor Documentation**

* [Schematic](https://cdn.sparkfun.com/assets/1/8/3/5/8/MicroMod-RP2040-ProcessorBoard_Schematic.pdf)
* [Eagle Files](https://cdn.sparkfun.com/assets/9/5/c/8/3/MicroMod-RP2040-ProcessorBoard.zip)
* [Board Dimensions](https://cdn.sparkfun.com/assets/learn_tutorials/1/4/9/5/SparkFun_MicroMod-RP2040-Processor_Board_Dimensions.png)
* [Hookup Guide](https://learn.sparkfun.com/tutorials/1495)
* [Graphical Datasheet](https://cdn.sparkfun.com/assets/1/6/f/a/2/MicroMod_General_Pinout_v10_Graphical_Datasheet.pdf)
* [RP2040 Datasheet](https://datasheets.raspberrypi.org/rp2040/rp2040_datasheet.pdf) (31.2 MB)
* [Raspberry Pi Pico Datasheet](https://datasheets.raspberrypi.org/pico/pico-datasheet.pdf) (16.5MB) - An RP2040-based microcontroller board
* [Getting Started with Raspberry Pi Pico](https://datasheets.raspberrypi.org/pico/getting-started-with-pico.pdf
) (32.9MB) - C/C++ development with Raspberry Pi Pico and other RP2040-based microcontroller boards
* [Raspberry Pi Pico C/C++ SDK](https://datasheets.raspberrypi.org/pico/raspberry-pi-pico-c-sdk.pdf
) (2.14MB) - Libraries and tools for C/C++ development on RP2040 microcontrollers
* [Raspberry Pi Pico Python SDK](https://datasheets.raspberrypi.org/pico/raspberry-pi-pico-python-sdk.pdf) (2.66MB) - A MicroPython environment for RP2040 microcontrollers
* [RP2040 Info Page](https://www.sparkfun.com/rp2040)
* [GitHub Hardware Repo](https://github.com/sparkfun/MicroMod_Processor-RP2040)

**MicroMod Documentation:**

* [SparkFun MicroMod Interface v1.0 - Pinout](https://cdn.sparkfun.com/assets/learn_tutorials/1/2/0/6/SparkFun_MicroMod_Interface_v1.0_-_Pinout.pdf)
* [SparkFun MicroMod Interface v1.0 - Pin Descriptions](https://cdn.sparkfun.com/assets/learn_tutorials/1/2/0/6/SparkFun_MicroMod_Interface_v1.0_-_Pin_Descriptions.pdf)
* [Getting Started with MicroMod](https://learn.sparkfun.com/tutorials/getting-started-with-micromod)
* [Designing with MicroMod](https://learn.sparkfun.com/tutorials/designing-with-micromod)
* [MicroMod Info Page](https://www.sparkfun.com/micromod)
* [MicroMod Forums](https://forum.sparkfun.com/viewforum.php?f=180)
* [SparkFun Eagle Libraries](https://github.com/sparkfun/SparkFun-Eagle-Libraries) contains example footprints for the M.2 connector and SMD standoff
* [M.2 MicroMod Connector Datasheet](https://cdn.sparkfun.com/assets/9/c/e/b/6/MicroMod_M.2_Connector_Datasheet_TE_2199230-4.pdf)
* [MicroMod Reflowable Standoff Datasheet](https://cdn.sparkfun.com/assets/f/d/2/b/e/MicroMod_Reflowable_Standoff.pdf)
