Temperature Sensor - Waterproof (DS18B20)

PuriLiteSKU: PL4-SEN-11050
filler

Precio:
Precio de venta$42.99

Descripción

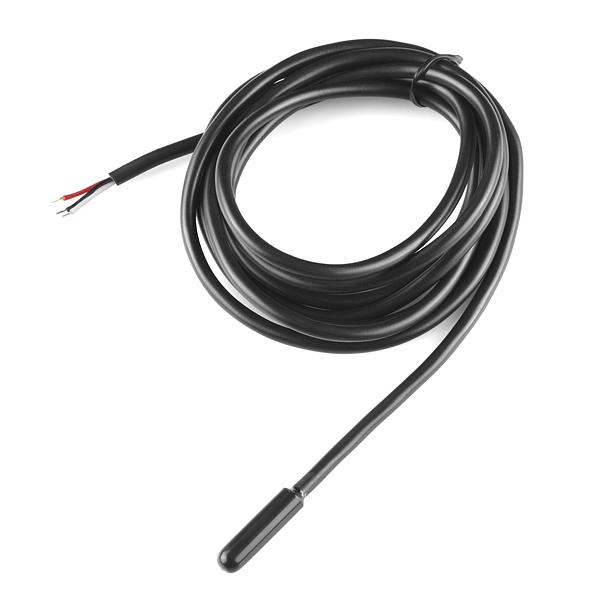

This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

**Note:** The pinout for this sensor is as follows: RED=Vcc BLACK=GND WHITE=SIG

**Features:**

* 3.0-5.5V input voltage
* Waterproof
* -55°C to+125°C temperature range
* ±0.5°C accuracy from -10°C to +85°C
* 1 Wire interface
* Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 6 feet.

**Documents:**

* [Datasheet](http://cdn.sparkfun.com/datasheets/Sensors/Temp/DS18B20.pdf) (DS18B20)
* [Simple Sketch Code](https://github.com/sparkfun/simple_sketches/tree/master/DS18B20)
* [mbed Example](http://mbed.org/users/snatch59/notebook/onewirecrc/)
