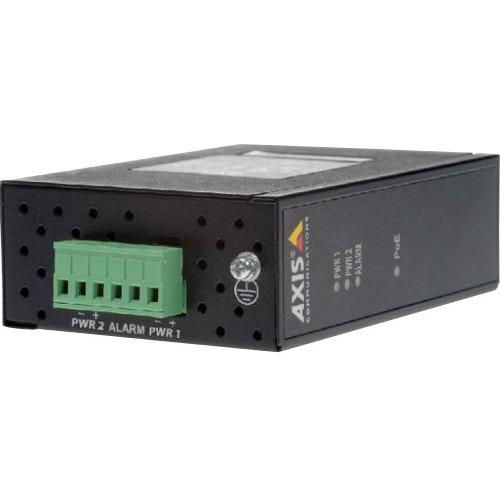

Axis Communications AXIS T8144 60 W Industrial Midspan - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 60 W - Black

Axis CommunicationsSKU: PL5-01154-001-1FD763-7331021061149-EN
filler

Precio:
Precio de venta$340.99

Descripción

AXIS T8144 60 W Industrial Midspan - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 60 W - Black

AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.

AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.

Compatibility
    Axis Products:
    • A1001
    • A9161
    • A9188-VE
    • C1410
    • D2110-VE
    • F34
    • F34
    • F41
    • F44
    • I8016-LVE
    • M1065-L
    • M1134
    • M1135
    • M1135-E
    • M1137
    • M1137-E
    • M1145-L
    • M2025-LE
    • M2026-LE
    • P1214
    • P1214-E
    • P1224-E
    • P1244
    • P1245
    • P1254
    • P1264
    • P1265
    • P1275
    • P1375
    • P1375-E
    • P1377
    • P1377-LE
    • P1378
    • P1378-LE
    • P1435-LE
    • P1455-LE
    • Q1615
    • Q1645
    • Q1647
    • Q1659
    • Q1798-LE
    • M3015
    • M3016
    • M3037-PVE
    • M3057-PLVE
    • M3057-PLVE
    • M3058-PLVE
    • M3064-V
    • M3065-V
    • M3066-V
    • M3067-P
    • M3068-P
    • M3075-V
    • M3077-PLVE
    • M3115-LVE
    • M3116-LVE
    • M3205-LVE
    • M3206-LVE
    • M4206-LV
    • M4206-V
    • P3245-LV
    • P3245-LVE
    • P3245-V
    • P3245-VE
    • P3247-LVE
    • P3248-LV
    • P3367-V
    • P3367-VE
    • P3374-LV
    • P3374-V
    • P3375-LV
    • P3375-LVE
    • P3375-V
    • P3375-VE
    • P3807-PVE
    • P3904-R
    • P3905-R
    • P3925-R
    • P3935-LR
    • P9106-V
    • Q3515-LV
    • Q3515-LVE
    • Q3517-LV
    • Q3517-LVE
    • Q3517-SLVE
    • Q3518-LVE
    • Q3527-LVE
    • Q3615-VE
    • Q3617-VE
    • Q3708-PVE
    • Q3709-PVE
    • Q3819-PVE
    • Q9216-SLV
    • M5054
    • M5055
    • M5065
    • M5525-E
    • P5414-E
    • P5415-E
    • P5654-E
    • P5655-E
    • Q6010-E
    • Q6074
    • Q6074-E
    • Q6075
    • Q6075-E
    • Q6100-E
    • Q6128-E
    • Q6154-E
    • Q6155-E
    • Q6315-LE
    • M7104
    • P7304
    • Q7411
    • Q7424-R
    • P1280-E
    • P1290-E
    • Q1941-E
    • Q1941-E
    • Q1942-E
    • Q1942-E
    • Q2901-E
    • Q2901-E
    • T8129
    • T8129-E
    • T8008
    • T8061
    • T8508
    • T8516
    • T8524
    • T90D20
    • T90D25
    • T90D30
    • T90D35
    • T91G61
    • T93F20
    • T98A15-VE
    • T98A16-VE
    • T98A17-VE
    • T98A18-VE
    • T98A19-VE
    • T8705
Input Ports 1 x 10/100/1000Base-T
Output Ports 1 x 10/100/1000Base-T
Weight (Approximate) 315 g
Color Black
Form Factor Cabinet/DIN Rail
Height 1.42" (36 mm)
Width 3.07" (78 mm)
Depth 4.37" (111 mm)
Maximum Output Power 60 W
Maximum Output Voltage 55 V DC
Product Type PoE Injector
Manufacturer Part Number 01154-001
Manufacturer Website Address http://www.axis.com
Manufacturer Axis Communications
Product Model T8144
Product Name T8144 60 W Industrial Midspan
Brand Name AXIS
