Axis Communications AXIS F1025 Sensor Unit

Axis CommunicationsSKU: PL5-0735-001-YP7503-7331021045736-EN
filler

Precio:
Precio de venta$340.99

Descripción

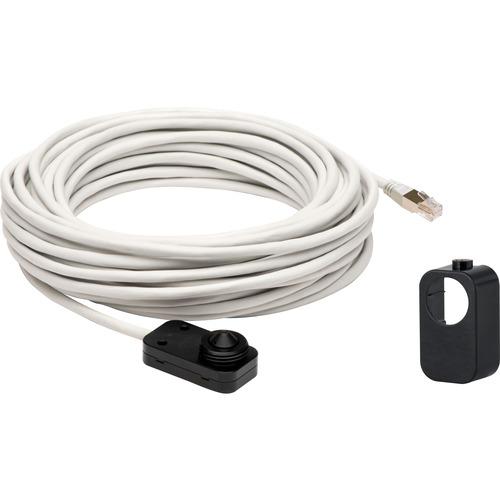

AXIS F1025 Sensor Unit

  • Flexible, extremely discreet design for indoor use
  • Pinhole lens with HDTV 1080p resolution
  • Wide 92° horizontal field of view

Extremely discreet installation

AXIS F1025 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in extremely discreet indoor surveillance applications, such as in ATMs (automated teller machines), banks, stores, hotels and elevators. The small AXIS F1025 unit can be installed, for instance, in tight places, in doorways, behind metal sheets or flush-mounted in a wall or ceiling, with only a pin hole visible for the lens.

AXIS F1025 comprises an image sensor and a pinhole lens that provides a wide 92° horizontal field of view in 1080p resolution. It comes with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8202 Straight Mounting Bracket is included for mounting on a flat surface.

Limited Warranty 3 Year
Additional Information
    • Cable Length: 10 ft
    • Image sensor: 1/2.8" (effective) progressive scan RGB CMOS
    • Minimum illumination: Color: 0.3 lux
    • Lens: 3.7 mm, F2.5: 92° viewa with AXIS F41/F44; 56° viewa with AXIS F44 in HDTV 720p
    • Operating conditions: Humidity 10-85% RH (non-condensing)
Application/Usage Surveillance
Indoor
Package Contents
  • F1025 Sensor Unit
  • F8202 Straight Mounting Bracket
  • Installation Guide
Certifications & Standards
    • ECE R10 rev.04
    • EN 50121-4
    • IEC/EN/UL 60950-1
    • IEC 60068-2-1
    • IEC 60068-2-2
    • IEC 60068-2-14
    • IEC 60068-2-30
    • IEC 60068-2-78
    • IEC 60529 IP4X
    • IEC 62236-4
    • EN 55022 Class B
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 61000-6-1
    • EN 61000-6-2
    • FCC Part 15 Subpart B Class B
    • ICES-003 Class B
    • VCCI Class B
    • C-tick AS/NZS CISPR 22 Class B
    • KCC KN22 Class B
    • KN24, EN 50581
    • EN 50155 (vibration, shock, bump)
    • IEC 60068-2-60
    • IEC 60529 IP66
    • IEC 60721-3-5 5M3 (vibration, shock)
    • IEC/EN/UL 60950-22
    • NEMA 250 Type 4X
Material Aluminum - Casing
Weight (Approximate) 77.1 g
Form Factor Flush Mount
Ceiling Mountable
Wall Mountable
Height 0.80" (20.32 mm)
Width 1.20" (30.48 mm)
Product Type Surveillance Camera Sensor Unit
Manufacturer Part Number 0735-001
Manufacturer Website Address http://www.axis.com
Manufacturer Axis Communications
Product Model F1025
Product Name F1025 Sensor Unit
Product Series F
Brand Name AXIS
