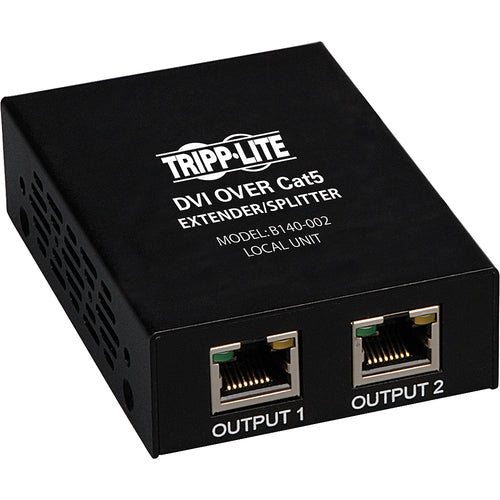

Tripp Lite DVI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit - 1 Input Device - 2 Output Device - 200 ft (60960 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
Tripp Lite DVI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit - 1 Input Device - 2 Output Device - 200 ft (60960 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
Tripp Lite DVI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit - 1 Input Device - 2 Output Device - 200 ft (60960 mm) Range - 2 x Network (RJ-45) - 1 x DVI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
The B140-002 transmits a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required. It also comes with mounting hardware that allows it to be wallmounted, rackmounted, or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Installation is simple. Connect the B140-002 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-002 using a single Cat5e/6 cable.
For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..
For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..
Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
- For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
| Limited Warranty | 1 Year |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| DVI In | Yes |
| Number of DVI Inputs | 1 |
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | B140-002 |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information |
The B140-002 transmits a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required. It also comes with mounting hardware that allows it to be wallmounted, rackmounted, or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
|
| Manufacturer | Tripp Lite by Eaton |
| Product Model | B140-002 |
| Product Name | DVI over Cat5 Extender/Splitter, 2-Port Local Transmitter Unit |
| Brand Name | Tripp Lite |
| Color | Black |
| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 2.50" (63.50 mm) |
| Transmitter Depth | 3.60" (91.44 mm) |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 1 |
| Package Contents |
|
| Certifications & Standards | TAA |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| TAA Compliant | Yes |
