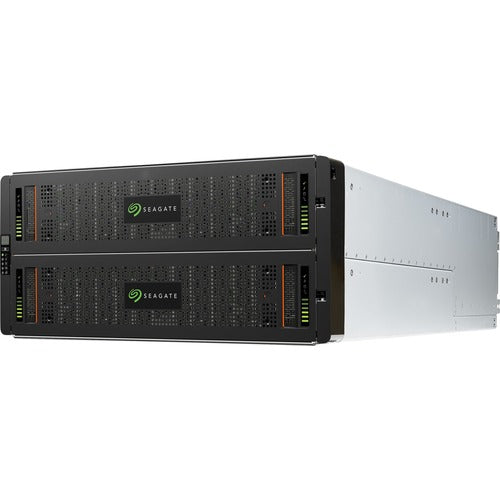

Seagate Exos X 5U84 SAN Storage System - 84 x HDD Supported - 1176 TB Supported HDD Capacity - 0 x HDD Installed - 84 x SSD Supported - 0 x SSD Installed - 32 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3,
Seagate Exos X 5U84 SAN Storage System - 84 x HDD Supported - 1176 TB Supported HDD Capacity - 0 x HDD Installed - 84 x SSD Supported - 0 x SSD Installed - 32 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3,
Seagate Exos X 5U84 SAN Storage System - 84 x HDD Supported - 1176 TB Supported HDD Capacity - 0 x HDD Installed - 84 x SSD Supported - 0 x SSD Installed - 32 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10, 50 - 84 x Total Bays - 84 x 3.5" Bay - 8 x Total Slot(s) - Gigabit Ethernet - SFTP, SNMP, SSL, SSH, SMTP, HTTPS - 5U - Rack-mountable
Integrated. Efficient. Intelligent. | Exos X 5U84Seagate® Exos? X 5U84 is the datasphere's ultra-dense, intelligent solution for maximum capacity and performance at an exceptionally low TCO.
Key Advantages
Maximum Capacity and Consistent High Performance. Up to 1.1PB of data in a single 5U enclosure with throughputs reaching 7GB/s sequential read, and 5.5GB/s sequential write and up to 99.999% high availability. Easily expand to accommodate data proliferation with three additional Exos X 5U84 systems for a total capacity of 2PB.
Cost-Optimized Architecture. This flexible solution is perfect for businesses with demanding streaming environments that require high read and write throughput, while still needing considerable storage space. Built to ensure all space is used to its maximum potential, application access to data is virtually instantaneous, ensuring IT and end users can work efficiently
Easy to Set Up, Maintain, and Expand. All system components-the enclosure, the controller, the firmware, and the drives-are developed and optimized by our engineers to work together seamlessly. This reduces support calls and eliminates technical learning curves. Modular architecture makes components interchangeable between systems, and upgrades are simple due to common FRUs, PCMs, controllers, and software.
Get Data to Applications Fast and Protect Valuable Assets. This system is full of features that enable applications to access data with up to a 99.999% availability design. Parallel architecture, multi-core processing, data replication, and fast streaming make access to data unfettered, while exclusive Seagate ADAPT data protection technology delivers fast drive rebuilds that virtually eliminate system downtime.
Build In Security at the Foundation of the Data Life Cycle. Protect the most valuable business assets with Seagate Secure? cybersecurity features and intelligent firmware -such as SFTP, SED support, and administrator access controls-that provide builtin security measures for reliable and safe file access, transfer, and management.
- Expand a data center seamlessly with single enclosures that host up to 1.1PB of data
- Efficiently manage hot and cold data with real-time data tiering option
- Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance
- Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
- Opt for replication and snapshot features to meet critical enterprise requirements
| Ethernet Technology | Gigabit Ethernet |
| Drive Interface | 12Gb/s SAS |
| Near Line SAS (NL-SAS) |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 2.20 kW |
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Bays | 84 |
| Number of 3.5" Bays | 84 |
| Number of Total Expansion Slots | 8 |
| RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Controller Type | 12Gb/s SAS |
| Near Line SAS (NL-SAS) | |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Protocols | SFTP |
| SMTP | |
| HTTPS | |
| SSH | |
| SSL | |
| SNMP |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| EU WEEE | |
| EU RoHS |
| Form Factor | Rack-mountable |
| Rack Height | 5U |
| Height | 8.75" (222.30 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 38.62" (981 mm) |
| Total Hard Drive Capacity Supported | 1176 TB |
| Number of Hard Drives Supported | 84 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 84 |
| Number of Solid State Drive Installed | 0 |
| Product Type | SAN Storage System |
| Manufacturer Part Number | D5565X000000DA |
| Manufacturer Website Address | http://www.seagate.com |
| Manufacturer | Seagate Technology |
| Product Name | Exos X 5U84 SAN Storage System |
| Product Line | Exos X |
| Product Series | 5U84 |
| Brand Name | Seagate |
