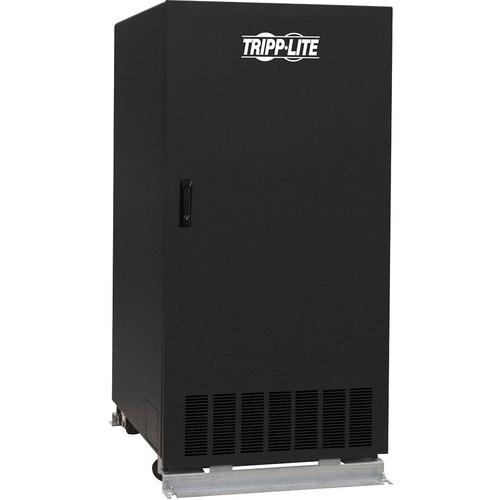

Tripp Lite EBP240V5001NB Power Array Cabinet - TAA Compliant

Tripp LiteSKU: PL5-EBP240V5001NB-781ZAO-0037332224569-EN
filler

Precio:
Precio de venta$21,713.99

Descripción

Tripp Lite EBP240V5001NB Power Array Cabinet - TAA Compliant

Add Batteries to Empty Cabinet to Extend Runtime of SV-Series UPS Systems

This external backup battery pack consists of one battery cabinet that requires 20 user-supplied CSB HRL12500W (or equivalent) sealed lead acid batteries to give your Tripp Lite SV-Series 3-phase UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. Multiple battery packs may be connected in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V5001NB is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.

Designed and Constructed to Ensure Consistent Power for a Long Time

This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinet from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinet through conduit knockouts built into the cabinet's exterior. Front and rear vents allow the free flow of warm air out of the cabinet to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position.

TAA-Compliant for GSA Schedule Purchases

The EBP240V5001NB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

  • Extend the runtime of your compatible Tripp Lite UPS system in a data center or telecom network
  • Connect multiple battery packs in parallel to further extend runtime for mission-critical equipment

System Requirements

  • Any Tripp Lite UPS model that begins with SV20, SV40, SV60, SV80, SV100, SV120 or SV140
  • 20 user-supplied CSB HRL12500W (or equivalent) sealed lead acid batteries
Features
  • Extends runtime of Tripp Lite SV-Series UPS systems using a +/-120VDC configuration
  • Requires 20 user-supplied CSB HRL12500W (or equivalent) sealed lead acid batteries
  • Hardwired installation with circuit breakers providing overcurrent protection
  • Multiple battery cabinets may be connected in parallel to increase runtime
  • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty
Output Voltage 120 V DC
Limited Warranty 1 Year
Package Contents
  • EBP240V5001NB Power Array Cabinet
  • Owner's Manual
Compatibility

    Tripp Lite SV-Series 3-phase UPS systems:

    • SV20
    • SV40
    • SV60
    • SV80
    • SV100
    • SV120
    • SV140
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Weight (Approximate) 206.38 kg
Form Factor Tower
Height 59" (1498.60 mm)
Width 29" (736.60 mm)
Depth 31.50" (800.10 mm)
Product Type Power Array Cabinet
Manufacturer Part Number EBP240V5001NB
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model EBP240V5001NB
Product Name EBP240V5001NB Power Array Cabinet
Brand Name Tripp Lite
