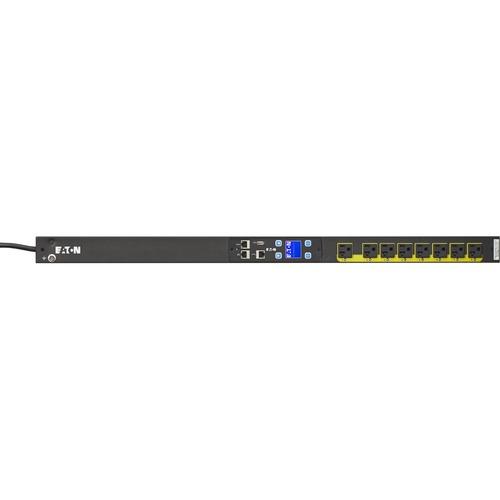

Eaton ePDU Managed 8-Outlet PDU - Switched - NEMA 5-20P, NEMA L5-20P - 8 x NEMA 5-20R - 120 V AC - 1.92 kW - Network (RJ-45) - 21U - Vertical

EatonSKU: PL5-EMA113-10-5413DC-0743172079176-EN
filler

Precio:
Precio de venta$1,660.99

Descripción

Eaton ePDU Managed 8-Outlet PDU - Switched - NEMA 5-20P, NEMA L5-20P - 8 x NEMA 5-20R - 120 V AC - 1.92 kW - Network (RJ-45) - 21U - Vertical

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Features
  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified
Network (RJ-45) Yes
Input Voltage 120 V AC
Input Current 16 A
Power Rating (Watt) 1.92 kW
Product Type PDU
Manufacturer Part Number EMA113-10
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer Eaton Corporation
Product Name ePDU Managed 8-Outlet PDU
Product Line ePDU
Product Series Managed
Brand Name Eaton
Rack Height 21U
Height 35.50" (901.70 mm)
Width 2.05" (52.07 mm)
Depth 2.56" (65.02 mm)
Mounting Orientation Vertical
Plug/Connector Type NEMA 5-20P
NEMA L5-20P
Receptacle Type NEMA 5-20R
PDU Type Switched
Receptacle Detail 8 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA 5-20P
1 x NEMA L5-20P
