Advantech IDP-31156W 15.6" Rugged LCD Touchscreen Monitor - 8 ms - 16" (406.40 mm) Class - Projected CapacitiveMulti-touch Screen - 1366 x 768 - WXGA - 16.7 Million Colors - 400 cd/m‚² - LED Backlight - DVI - VGA - Black, White - RoHS - 2 Year
Advantech IDP-31156W 15.6" Rugged LCD Touchscreen Monitor - 8 ms - 16" (406.40 mm) Class - Projected CapacitiveMulti-touch Screen - 1366 x 768 - WXGA - 16.7 Million Colors - 400 cd/m‚² - LED Backlight - DVI - VGA - Black, White - RoHS - 2 Year
Advantech IDP-31156W 15.6" Rugged LCD Touchscreen Monitor - 8 ms - 16" (406.40 mm) Class - Projected CapacitiveMulti-touch Screen - 1366 x 768 - WXGA - 16.7 Million Colors - 400 cd/m² - LED Backlight - DVI - VGA - Black, White - RoHS - 2 Year

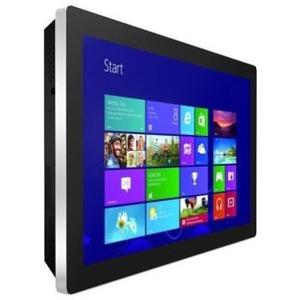

IDP-31156W
15.6" industrial ProFlat touch monitor. 100% flat projected capacitive touch with ultra-thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook.
- 15.6" wide LCD panel with LED backlight for long service life
- Operating temperature 0 to +40° C; Storage temperature -20 to +60° C
- Regular brightness 400 CD/m2
- Resolution 1366 x 768
- Contrast ratio 500 : 1
- 85°/85°/80°/80° wide view-angle for portrait and landscape mode
- 10 points projected capacitive touch overlay
- VGA & DVI I/O interface
- IP51 rating from the front and side
The IDP-31156W is a 15.6" industrial grade ProFlat touch monitor with stylish silver line bezel, that responds to requirements of being durable, robust and reliable.
This range of displays marks a significant departure from the traditional industrial unit. With the most obvious change being its contemporary look and feel, the unit also features intuitive 10 point multi-touch P-CAP technology and a fully flat surface that can be easily cleaned with a wet cloth or any suitable cleaning agent.
Designed to tackle a wide range of applications, this industrial grade display uses long life durable parts that make it robust enough for the more demanding requirements.
- 15.6" wide LCD panel with LED backlight for long service life
- Operating temperature 0 to +40° C; Storage temperature -20 to +60° C
- Regular brightness 400 CD/m2
- Resolution 1366 x 768
- Contrast ratio 500 : 1
- 85°/85°/80°/80° wide view-angle for portrait and landscape mode
- 10 points projected capacitive touch overlay
- VGA & DVI I/O interface
- IP51 rating from the front and side
Operating Power Consumption | 20 W |
Limited Warranty | 2 Year |
DVI | Yes |
VGA | Yes |
Touchscreen Type | Projected Capacitive |
Multi-touch Screen | Yes |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Brightness | 400 cd/m² |
Color Supported | 16.7 Million Colors |
Maximum Resolution | 1366 x 768 |
Native Contrast Ratio | 500:1 |
Product Type | LCD Touchscreen Monitor |
Manufacturer Part Number | IDP-31156WP40DVB1G |
Manufacturer Website Address | http://www.advantech.com |
Manufacturer | Advantech Co., Ltd |
Product Model | IDP-31156W |
Product Name | IDP-31156W TouchScreen LCD Monitor |
Product Series | IDP-31 |
Brand Name | Advantech |
Weight (Approximate) | 3.17 kg |
Color | White |
Black | |
Height | 9.59" (243.60 mm) |
Width | 15.57" (395.60 mm) |
Depth | 1.84" (46.80 mm) |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
Rugged | Yes |
Response Time | 8 ms |
Features | Wide Viewing Angle |
Landscape/Portrait Viewable | |
On-screen Display (OSD) | |
Anti-glare | |
Viewable Screen Size | 15.6" |
Screen Mode | WXGA |
Horizontal Viewing Angle | 170° |
Vertical Viewing Angle | 160° |
Backlight Technology | LED |
Screen Size Class | 16" (406.40 mm) |
