Super Micro Supermicro Server Board Server Motherboard - Intel Chipset - Socket H LGA-1156 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
Super Micro Supermicro Server Board Server Motherboard - Intel Chipset - Socket H LGA-1156 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
Supermicro Server Board Server Motherboard - Intel Chipset - Socket H LGA-1156 - Micro ATX - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

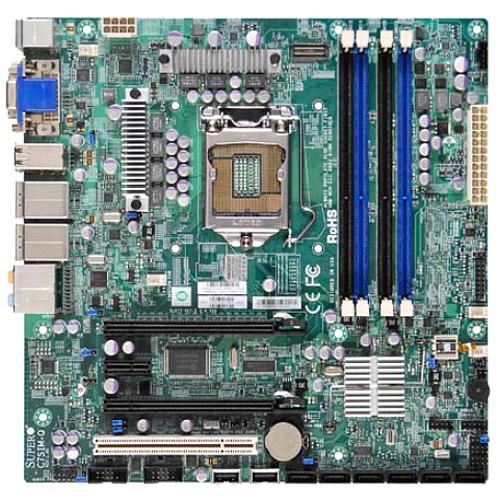

C7SIM-Q Server Board supports a single Intel Core i7, Core i5, Core i3 and Pentium processor series in an LGA1156 socket. Featuring the Intel Q57 Express, the C7SIM-Q also offers substantial enhancement in price/system performance ratio in a cost-effective, small form-factor package.
Onboard Video | On-board Video Chipset |
Fast Ethernet | Yes |
Gigabit Ethernet | Yes |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC889 |
Audio Channels | 7.1 |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Form Factor | Micro ATX |
Width | 9.60" (243.84 mm) |
Depth | 9.60" (243.84 mm) |
Number of SATA Interfaces | 6 |
Total Number of Onboard USB Ports | 2 |
Onboard LEDs Header | Yes |
Onboard S/PDIF Header | Yes |
RAID Levels | 0 |
1 | |
1+0 | |
5 | |
Controller Type | Serial ATA/300 |
RAID Supported | Yes |
DVI | Yes |
VGA | Yes |
Network (RJ-45) | Yes |
Audio Line In | Yes |
Audio Line Out | Yes |
Number of DVI Outputs | 1 |
Microphone Port | Yes |
Total Number of USB Ports | 8 |
Number of USB 2.0 Ports | 8 |
PS/2 Port | Yes |
Number of PS/2 Ports | 2 |
Number of PCI Slots | 1 |
Number of PCI Express x1 Slots | 1 |
Number of Total Expansion Slots | 4 |
Number of PCI Express x4 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Total Number of PCI Express Slots | 3 |
Product Type | Server Motherboard |
Manufacturer Part Number | MBD-C7SIM-Q-O |
Manufacturer Website Address | http://www.supermicro.com |
Manufacturer | Supermicro Computer, Inc |
Product Model | Server Board |
Product Name | C7SIM-Q Server Board |
Brand Name | Supermicro |
Maximum Memory Supported | 16 GB |
Memory Technology | DDR3 SDRAM |
Memory Standard | DDR3-1333/PC3-10600 |
DDR3-800/PC3-6400 | |
DDR3-1066/PC3-8500 | |
Number of Memory Slots | 4 |
Memory Speed Supported | 1333 MHz |
1066 MHz | |
800 MHz |
Processor Supported | Core i3 |
Core i5 | |
Core i7 | |
Pentium Dual-core | |
Total Processor Supported | 1 |
Processor Socket | Socket H LGA-1156 |
Processor Technology | Enhanced SpeedStep Technology |
64-bit Processing | Yes |
Chipset Manufacturer | Intel |
