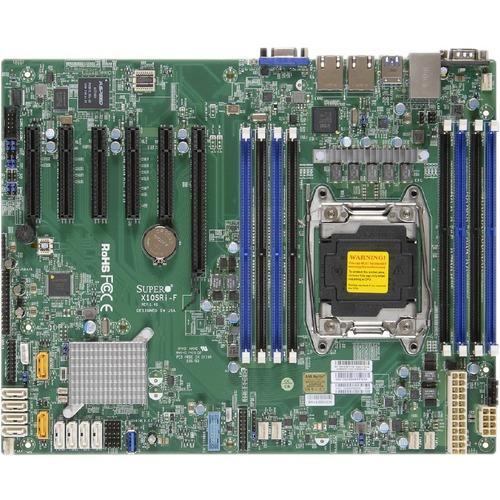

Super Micro Supermicro X10SRi-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Super MicroSKU: PL5-MBD-X10SRI-F-O-672NNL-EN
filler

Precio:
Precio de venta$425.99

Descripción

Supermicro X10SRi-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - ATX - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Xeon® E5 Family BOARDS / Socket R3 (LGA 2011)

Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
Gigabit Ethernet Yes
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Compatibility
    Supermicro SuperChassis

    1U Chassis:
    • CSE-813MFTQ-441CB
    • CSE-813MFTQ-R400CB
    2U Chassis:
    • CSE-213LT-600LPB
    • CSE-823TQ-653LPB
    • CSE-825TQ-563LPB
    • CSE-825TQ-R600LPB
    • CSE-826TQ-R500LPB
    3U Chassis:
    • CSE-833T-653B
    • CSE-836TQ-R500B
    Mid-Tower:
    • CSE-732D4F-903B
    • CSE-732i-500B
    Tower / 4U Rackmount:
    • CSE-743T-665B
    • CSE-842i-500B
    • CSE-842TQ-665B
    • CSE-842TQ-865B
Certifications & Standards ACPI 4.0
Environmentally Friendly Yes
Environmental Certification RoHS
RAID Levels 5
1
0
Controller Type Serial ATA/600
RAID Supported Yes
Processor Supported Xeon
Total Processor Supported 1
Processor Socket Socket LGA 2011-v3
64-bit Processing Yes
Chipset Manufacturer Intel
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2400
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
Onboard Video On-board Video Chipset
Product Type Server Motherboard
Manufacturer Part Number MBD-X10SRI-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X10SRi-F
Product Name X10SRi-F Server Motherboard
Package Type Retail
Brand Name Supermicro
Number of Total Expansion Slots 6
Number of PCI Express x8 Slots 5
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 6
Number of SATA Interfaces 10
Total Number of Onboard USB Ports 8
Number of Onboard USB 2.0 Ports 6
Number of Onboard USB 3.0 Ports 2
Onboard LEDs Header Yes
Onboard Serial Header Yes
VGA Yes
Number of Network (RJ-45) Ports 3
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 2
Maximum Memory Supported 512 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-1600/PC4-12800
DDR4-1866/PC4-14900
DDR4-2133/PC4-17000
Number of Memory Slots 8
Memory Form Factor RDIMM
LRDIMM
DIMM
Memory Speed Supported 2133 MHz
1866 MHz
1600 MHz
