Super Micro Supermicro X8DTE-F Server Motherboard - Intel Chipset - Socket B LGA-1366 - Extended ATX - 96 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 12 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Ahorrar 15%
Super MicroSKU: PL5-MBD-X8DTE-F-O-83434Z-EN
filler

Precio:
Precio de venta$562.99 Precio habitual$661.35

Descripción

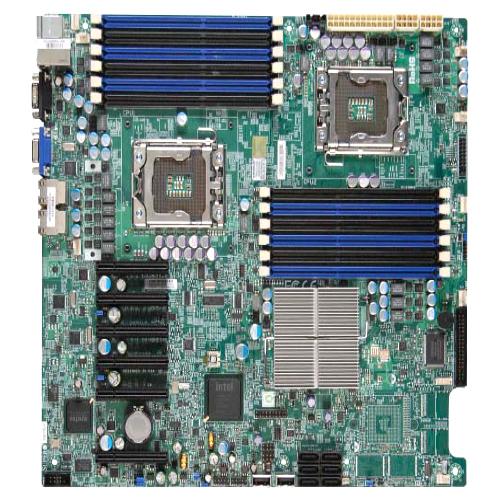

Supermicro X8DTE-F Server Motherboard - Intel Chipset - Socket B LGA-1366 - Extended ATX - 96 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 12 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

The Supermicro X8DT6/X8DT6-F/X8DTE/X8DTE-F supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel Quick-Path Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus. With the 5500 Series Processor platform built in, the X8DT6/X8DT6-F/X8DTE/X8DTE-F offers substantial enhancement in system performance with increased bandwidth and unprecedented scalability optimized for high-end servers, High Performance Computing (HPC) systems and intensive applications.

Gigabit Ethernet Yes
Limited Warranty 3 Year
Package Contents
  • X8DTE-F Server Motherboard
  • 9 x I/O Cable
  • 1 x Driver Disk
  • 1 x I/O Shield
  • 1 x Manual
Environmentally Friendly Yes
Environmental Certification RoHS
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 4
Onboard LEDs Header Yes
Number of Total Expansion Slots 7
Number of PCI Express x4 Slots 2
Number of PCI Express x8 Slots 4
Total Number of PCI Express Slots 6
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200eW
Graphics Controller Memory 16 MB
Onboard Video On-board Video Chipset
Weight (Approximate) 2.20 kg
Form Factor Extended ATX
Height 3.50" (88.90 mm)
Width 12" (304.80 mm)
Depth 13" (330.20 mm)
Maximum Memory Supported 96 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-800/PC3-6400
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
Number of Memory Slots 12
Memory Form Factor DIMM
Memory Speed Supported 1066 MHz
1333 MHz
800 MHz
RAID Levels 5
0
1
1+0
Controller Type Serial ATA/300
Floppy Controller
RAID Supported Yes
VGA Yes
Network (RJ-45) Yes
Serial Port Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 4
PS/2 Port Yes
Number of PS/2 Ports 2
Processor Supported Xeon Quad-core
Total Processor Supported 2
Processor Socket Socket B LGA-1366
Processor Technology Enhanced SpeedStep Technology
64-bit Processing Yes
Chipset Manufacturer Intel
QuickPath Interconnect 6.40 GT/s
Product Type Server Motherboard
Manufacturer Part Number MBD-X8DTE-F-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model X8DTE-F
Product Name X8DTE-F Server Motherboard
Package Type Retail
Brand Name Supermicro
