Super Micro Supermicro X9DRW-CTF31 Server Motherboard - Intel Chipset - Socket R LGA-2011 - Proprietary Form Factor - 1 TB DDR3 SDRAM Maximum RAM - DDR3-1866/PC3-15000, DDR3-1600/PC3-12800, DDR3-1333/PC3L-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DI

Ahorrar 17%
Super MicroSKU: PL5-MBD-X9DRW-CTF31-O-83375Z-EN
filler

Precio:
Precio de venta$1,241.99 Precio habitual$1,489.63

Descripción

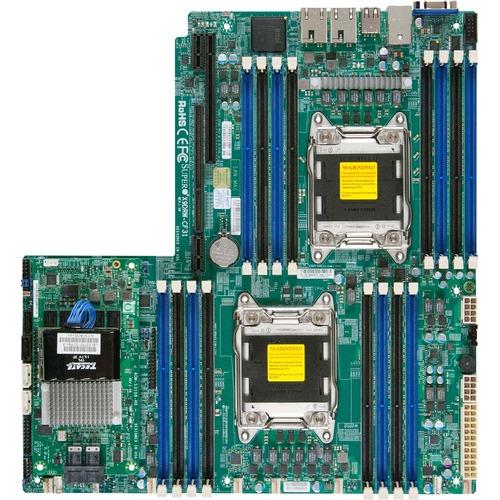

Supermicro X9DRW-CTF31 Server Motherboard - Intel Chipset - Socket R LGA-2011 - Proprietary Form Factor - 1 TB DDR3 SDRAM Maximum RAM - DDR3-1866/PC3-15000, DDR3-1600/PC3-12800, DDR3-1333/PC3L-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, RDIMM, UDIMM, LRDIMM - 16 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

Xeon® E5 Family BOARDS / Socket R (LGA 2011)

Supermicro's New Generation X9 Serverboards offer the highest levels of performance, efficiency and scalability in the industry. The Supermicro X9 Serverboards are available in a variety of architectures including Twin and new Fat Twin, GPU Supercomputer, Data Center Optimized, SuperServer® Advantage, I/O Optimized, SuperWorkstation, and SuperStorage Solutions. These Serverboards offers numerous advantages including up to 1.5TB DDR3 (up to 1866MHz) memory in 24 DIMM slots, SATA 3.0 and SAS 3.0 (12Gbps) HDD support, ConnectX FDR/QDR InfiniBand ports, dual 10 Gigabit Ethernet, Quad Ethernet LAN, PCI-E 3.0 technology, LSI® 2308 controller with software RAID and LSI® 2208 controller with hardware RAID, IPMI 2.0, and Intel® Xeon® processor E5-2600 or E5-2600 v2 family for highest performance. With this New Generation X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for Data Center, Enterprise IT, Cloud Computing, Graphics, Technical Computing, and HPC environments.
VGA Yes
Total Number of USB Ports 4
Gigabit Ethernet Yes
10Gigabit Ethernet Yes
Number of SATA Interfaces 4
Number of SAS Interfaces 8
Graphics Controller Model G200
Onboard Video On-board Video Chipset
Form Factor Proprietary Form Factor
Width 12.30" (312.42 mm)
Depth 13" (330.20 mm)
Maximum Memory Supported 1 TB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1333/PC3L-10600
DDR3-1600/PC3-12800
DDR3-1866/PC3-15000
DDR3-800/PC3-6400
DDR3-1066/PC3-8500
Number of Memory Slots 16
Memory Form Factor RDIMM
UDIMM
DIMM
LRDIMM
Memory Speed Supported 1066 MHz
1600 MHz
1866 MHz
800 MHz
1333 MHz
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 3
Number of PCI Express x32 Slots 1
Processor Supported Xeon
Total Processor Supported 2
Processor Socket Socket R LGA-2011
Chipset Manufacturer Intel
RAID Levels 0
5
10
1
Controller Type 12Gb/s SAS
Serial ATA/300
Serial ATA/600
RAID Supported Yes
Product Type Server Motherboard
Manufacturer Part Number MBD-X9DRW-CTF31-O
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X9DRW-CTF31
Product Name X9DRW-CTF31 Server Motherboard
Package Type Retail
Product Series X9
Brand Name Supermicro
