Cyber Power CyberPower MBP63A2 208 VAC 63A Maintenance Bypass UPS - 3 Outlets, 3.3 ft, Horizontal, 2U, 3YR Warranty

Cyber PowerSKU: PL5-MBP63A2-794NNK-0649532931385-EN
filler

Precio:
Precio de venta$1,328.99

Descripción

CyberPower MBP63A2 208 VAC 63A Maintenance Bypass UPS - 3 Outlets, 3.3 ft, Horizontal, 2U, 3YR Warranty

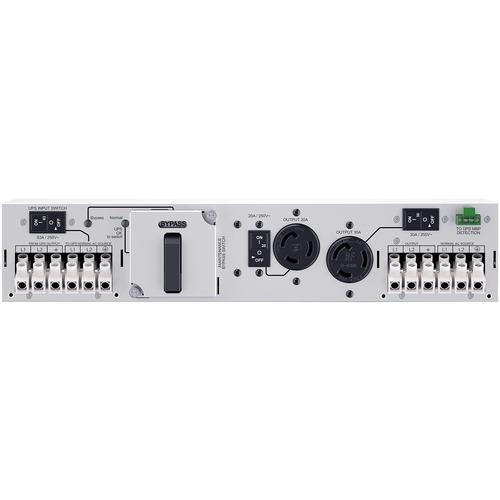

Designed for datacenters and other electrically demanding applications, the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU), allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R, (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle.

Depending on UPS model, either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged, industrial-grade metal housing protects the MBP63A2. With a 2U form factor, this PDU can be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU.

Features
  • Maintenance Bypass PDU: Normal mode, Bypass mode
  • Amps: 63A
  • Volts: 200 - 240 VAC
  • Input plugs: Terminal Blocks (utility, UPS output)
  • Total outlets: 1 NEMA L6-20R, 1 NEMA L6-30R, Terminal Block
  • Power cords: L6-30P power cord 3.3ft to UPS output and L6-30R power cord 3.3ft to UPS input, Conduits with internal wires for MBP63A2 to UPS input / output 3ft
  • LED indicators: Normal (Green), Bypass (Red)
  • Size: 2U Rack, Tower, Wall
  • Dimensions (in.): 17.0W x 3.4H x 4.9D
  • UPS mounting hardware: Yes
Limited Warranty 3 Year
Input Voltage 230 V AC
Output Voltage 208 V AC
Input Current 63 A
Input Voltage Range 200 V AC - 240 V AC
Additional Information
    • Inlet To UPS Input: (1) Terminal Block
    • Inlet To UPS Output: (1) Terminal Block
    • Inlet To Utility Power: (1) Terminal Block
    • Management Cable: MBP Detection Cable 3.3 ft.
    • Material of Construction: Metal
    • Operating Relative Humidity: 0 - 90 % (non-condensing)
    • Operating Temperature: 32 - 104 °F (0 - 40 °C)
Package Contents
  • MBP63A2 3-Outlet PDU
  • UPS Mounting Hardware
Compatibility

    CyberPower Smart App Online:

    • OL5KRTHD
    • OL6KRTHD
Certifications & Standards UL 1778
Environmentally Friendly Yes
Environmental Certification RoHS
Product Type PDU
Manufacturer Part Number MBP63A2
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model MBP63A2
Product Name MBP63A2 3-Outlet PDU
Brand Name CyberPower
Product Condition New
Weight (Approximate) 3.99 kg
Form Factor Rack/Tower
Rack Height 2U
Cord Length 3.3 ft
Height 3.40" (86.36 mm)
Width 17" (431.80 mm)
Depth 4.90" (124.46 mm)
Mounting Orientation Horizontal/Vertical
Plug/Connector Type Hardwire Terminal Block
Receptacle Type NEMA L6-30R
Hardwire Terminal Block
NEMA L6-20R
PDU Type Hot-swappable
Receptacle Detail 1 x NEMA L6-20R
1 x NEMA L6-30R
1 x Hardwire Terminal Block
Plug/Connector Detail 1 x Hardwire Terminal Block
