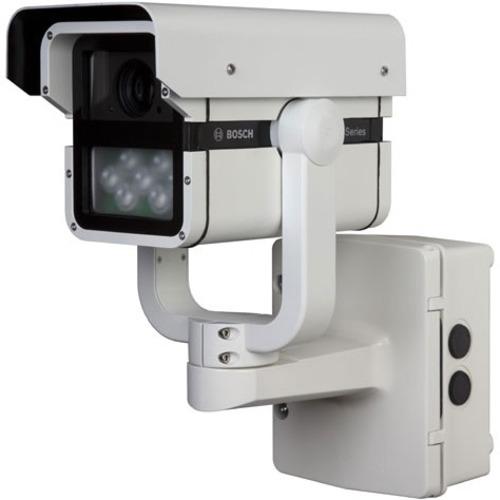

Bosch Dinion NAI-90022-AAA 2 Megapixel Network Camera - MJPEG, H.264 - 1920 x 1080 - 2.3x Optical - CMOS - Fast Ethernet - Corner Mount, Pole Mount
Bosch Dinion NAI-90022-AAA 2 Megapixel Network Camera - MJPEG, H.264 - 1920 x 1080 - 2.3x Optical - CMOS - Fast Ethernet - Corner Mount, Pole Mount
Bosch Dinion NAI-90022-AAA 2 Megapixel Network Camera - MJPEG, H.264 - 1920 x 1080 - 2.3x Optical - CMOS - Fast Ethernet - Corner Mount, Pole Mount
The DINION IP imager 9000 HD is a rugged, active infrared surveillance camera designed for fence line or perimeter surveillance and other outdoor low-light applications. The camera provides up to 120 meters (394 feet) of classification level imaging and 33 meters (108 feet) of recognition level imaging in darkness. The IP66 and IK10 ratings ensure water/dust and vandal resistance making it ideal for demanding applications.Audio Formats | AAC |
Maximum Power Consumption | 25.50 W |
Image Formats | JPEG |
Maximum Image Resolution | 1920 x 1080 |
Exposure Control | Auto |
Longest Shutter Speed | 1/30 Second |
Shortest Shutter Speed | 1/150000 Second |
Network (RJ-45) | Yes |
Audio Line In | Yes |
Audio Line Out | Yes |
Analog Video Out | Yes |
Lens Type | Zoom |
Optical Zoom | 2.3x |
Maximum Focal Length | 23 mm |
Minimum Focal Length | 10 mm |
Lens Included | Yes |
Protocols | ICMP |
TCP | |
DDNS | |
Telnet | |
UPnP (SSDP) | |
IPv4 | |
DHCP | |
ICMPv6 | |
Digest Authentication | |
SMTP | |
NTP | |
IGMP v2 | |
HTTP | |
SNMP (MIB-2) | |
RTSP | |
CHAP | |
iSCSI | |
IPv6 | |
FTP | |
DNSv6 | |
HTTPS | |
DNS | |
802.1X | |
SOAP | |
IGMP v3 | |
LLDP | |
ARP | |
RTP/RTCP | |
SNMP (v1/v2c/v3) | |
UDP | |
DiffServ (QoS) | |
Connectivity Technology | Wired |
Ethernet | Yes |
Ethernet Technology | Fast Ethernet |
Video Formats | MJPEG |
H.264 | |
Maximum Video Resolution | 1920 x 1080 |
Maximum Frame Rate | 30 fps |
Video Signal Format | NTSC |
Weight (Approximate) | 6.60 kg |
Color | White |
Mount Type | Pole Mount |
Corner Mount | |
Height | 15.83" (402 mm) |
Width | 7.60" (193 mm) |
Depth | 12.17" (309 mm) |
Product Type | Network Camera |
Manufacturer Part Number | NAI-90022-AAA |
Manufacturer Website Address | http://www.bosch.com |
Manufacturer | The Bosch Group |
Product Model | NAI-90022-AAA |
Product Name | NAI-90022-AAA HD IR Imager, 10-23mm AVF, 850nm |
Product Line | Dinion |
Brand Name | Bosch |
White Balance Modes | Indoor |
Manual | |
Outdoor | |
Color Supported | Color |
Monochrome | |
Viewing Angle | 8.3° to 18° |
Image Sensor Size | 1/2.7" |
Tilt | -48° to 44° |
Image Sensor Type | CMOS |
Effective Camera Resolution | 2 Megapixel |
Field of View | 8.3? to 18? |
Swivel | -90° to 90° |
Certifications & Standards |
|
Features | Audio Detection |
Weather Resistant | |
Weather Proof | |
Water Proof | |
Vandal Proof | |
Vandal Resistant | |
Motion Detection | |
SD Card Local Storage | |
Day/Night | |
Digital Noise Reduction | |
Dust Proof | |
Water Resistant | |
Security Features |
|
Country of Origin | Portugal |
Indoor/Outdoor | Indoor/Outdoor |
