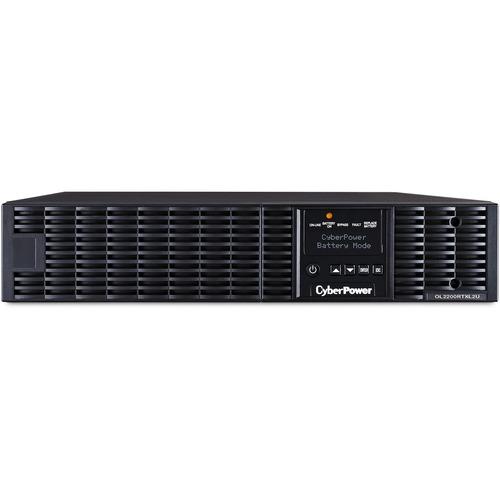

Cyber Power CyberPower UPS Systems OL2200RTXL2U Smart ApCyberPower OL2200RTXL2U Smart App Online UPS Systemsp Online - Capacity: 2200 VA / 1800 W - 100 - 125 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG,

Cyber PowerSKU: PL5-OL2200RTXL2U-79502S-0649532604883-EN
filler

Precio:
Precio de venta$2,202.99

Descripción

CyberPower UPS Systems OL2200RTXL2U Smart ApCyberPower OL2200RTXL2U Smart App Online UPS Systemsp Online - Capacity: 2200 VA / 1800 W - 100 - 125 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS? ECO Mode.

The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Features
  • Capacity: 2200 VA / 1800 W
  • Power Factor (PF): 0.82
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA 5-20P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-20R, 1 × L5-20R
  • Monitoring & Management: USB, Serial, Network, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition
Status Indicators
    • Power On (White)
    • Line Mode (Green)
    • Battery Mode (Yellow)
    • Bypass Mode (Yellow)
    • Fault (Red)
    • Replace Battery (Red)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 - Lifetime
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Network Management SNMP/HTTP Remote Monitoring
Alarm Low Battery
Battery Mode
Overload
UPS Fault
Thermal Dissipation 541 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Storage Relative Humidity 0% - 95%
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Weight (Approximate) 30.93 kg
Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 23.62" (599.95 mm)
Application/Usage Storage Device
Mission Critical Equipment
Server
PBX System
Network Device
VoIP Phone System
Bypass Switch Automatic
Manual
Dataline Protection RJ-45
RJ-11
Emergency Power OFF Yes
Overload Protection Yes
Plug/Connector Type NEMA 5-20P
Cord Length 10 ft
Receptacle Type NEMA 5-20R
NEMA L5-20R
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >95%
Transfer Time 0 ns
Receptacle Detail 1 x NEMA L5-20R
6 x NEMA 5-20R
Product Type Dual Conversion Online UPS
Manufacturer Part Number OL2200RTXL2U
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model OL2200RTXL2U
Product Name Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
Product Line Smart App Online
Brand Name CyberPower
Additional Information
    • Replacement Battery Cartridge Quantity: 1
    • Smart Battery Management (SBM) Mode: Yes
    • Circuit Breaker: 20A
    • Cold Start: Yes
    • Input Power Factor: 0.99
    • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
    • Crest Factor: 3:1
    • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
    • Harmonic Distortion: < 3% at Linear Load
    • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
    • Output Power Factor: 0.82
    • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
    • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
    • VA by Input Type: 2,200 (2.2 kVA) at 120, 125 V input
    • Watts by Input Type: 1,800 (1.8 kW) at 120, 125 V input
    • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
    • Dry Contacts: Yes
    • Expansion Slot: Yes - with optional RMCARD205 or RELAYIO500
    • LCD: Multifunction LCD
    • LED Indicators: Power On (White)
    • Management Cable: USB Cable
    • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
    • Rotatable LCD Control Panel Option: Yes
    • Serial Port: 1 Serial
    • Upgradeable firmware: Yes
    • Material of Construction: Metal
    • Mounting Hardware: Yes
    • ECO Mode Thermal Dissipation: 249 BTU/hr
    • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
    • Operating Relative Humidity: 0 - 90 % (non-condensing)
    • Operating Temperature: 32 - 104 °F (0 - 40 °C)
    • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
Package Contents
  • Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
  • User Manual
  • Registration card
  • 2 x Rackmount rails
  • 2 x Hanging brackets
  • 2 xRackmount ears
  • USB communication cable
  • Serial interface cable (RS-232)
  • 8 x M5X7L black flat head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 12 x Screw hole dust covers
  • 12 x Rubber pads
  • Software download card
Software Included PowerPanel® Business
Certifications & Standards
    • UL1778
    • CSA C22.2 NO.107.3-05
    • FCC DOC Class A
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Energy Star No
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Battery Capacity 9000 mAh
Number of Batteries 6
Backup/Run Time (Half Load) 20 Minute
Backup/Run Time (Full Load) 6.50 Minute
Battery Characteristics Maintenance-free, Sealed
Typical Battery Recharge Time 4 Hour
Input Voltage 120 V AC
Output Voltage 100 V AC
115 V AC
125 V AC
110 V AC
120 V AC
Load Capacity 2.20 kVA/1.80 kW
Surge Energy Rating 1335 J
Waveform Type Sine Wave
Input Voltage Range 100 V AC 125 V AC
Output Frequency 60 Hz
Input Frequency 70 Hz
