Tripp Lite PDU3EVN10l1530B 48-Outlet PDU - Monitored - NEMA L15-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDU3EVN10L1530B-2192FB-0037332209405-EN
filler

Precio:
Precio de venta$2,298.99

Descripción

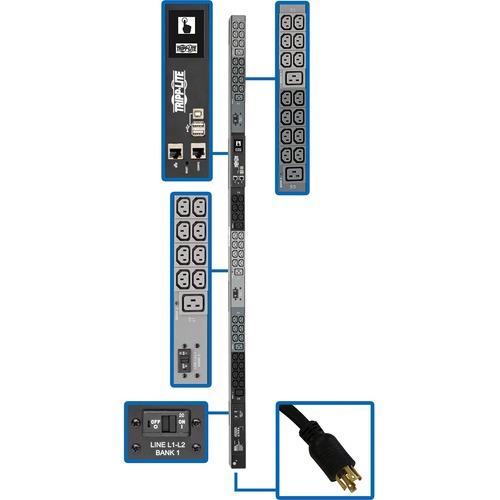

Tripp Lite PDU3EVN10l1530B 48-Outlet PDU - Monitored - NEMA L15-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

The PDU3EVN10L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.

Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Features
  • 10kW 200/208/240V 3-phase 0U monitored PDU
  • 48 outlets-42 C13, 6 C19-with plug-lock inserts
  • Built-in LX Platform interface for remote access 24/7
  • NEMA L15-30P input with 10 ft. AC power cord
  • Touchscreen LCD with mobile access option via QR code
Management
    Protocols:
    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDU3EVN10l1530B 48-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 48 x Plug-lock Insert Sleeves
  • Rack-mounting Hardware
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Product Type PDU
Manufacturer Part Number PDU3EVN10l1530B
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3EVN10l1530B
Product Name PDU3EVN10l1530B 48-Outlet PDU
Brand Name Tripp Lite
Weight (Approximate) 6.77 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.86" (72.64 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type NEMA L15-30P
Phase Three Phase
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Monitored
Receptacle Detail 6 x IEC 60320 C19
42 x IEC 60320 C13
Input Voltage 230 V AC
Output Voltage 240 V AC
200 V AC
200 V AC
240 V AC
240 V AC
208 V AC
208 V AC
208 V AC
200 V AC
Input Current 24 A
Power Rating (Watt) 10 kW
