Tripp Lite PDU3EVN6G30B 48-Outlet PDU - Monitored - IEC 60309 30A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

Ahorrar 14%
Tripp LiteSKU: PL5-PDU3EVN6G30B-2195FB-0037332195371-EN
filler

Precio:
Precio de venta$2,523.99 Precio habitual$2,947.17

Descripción

Tripp Lite PDU3EVN6G30B 48-Outlet PDU - Monitored - IEC 60309 30A BLUE (3P+E) - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

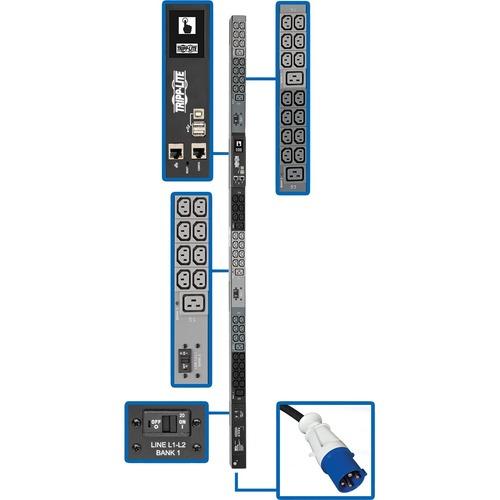

The PDU3EVN6G30B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 30A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
  • 10kW 200/208/240V 3-phase monitored 0U PDU
  • 48 outlets-42 C13, 6 C19-with plug-lock inserts
  • Built-in LX Platform interface for remote access 24/7
  • IEC 309 30A Blue (3P+E) input with 6 ft. AC power cord
  • Touchscreen LCD with mobile access option via QR code
Network (RJ-45) Yes
Management
    Protocols:
    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDU3EVN6G30B 48-Outlet PDU
  • Configuration Cable
  • 48 x Plug-lock Insert Sleeves
  • Rack-mounting Hardware
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Product Type PDU
Manufacturer Part Number PDU3EVN6G30B
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3EVN6G30B
Product Name PDU3EVN6G30B 48-Outlet PDU
Brand Name Tripp Lite
Weight (Approximate) 6.89 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.86" (72.64 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type IEC 60309 30A BLUE (3P+E)
Phase Three Phase
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Monitored
Receptacle Detail 6 x IEC 60320 C19
42 x IEC 60320 C13
Input Voltage 230 V AC
Output Voltage 240 V AC
208 V AC
200 V AC
240 V AC
240 V AC
208 V AC
208 V AC
200 V AC
200 V AC
Input Current 24 A
Power Rating (Watt) 10 kW
