Tripp Lite Metered PDU3MV6H50 45-Outlets PDU - Hubbell CS8365C - 9 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 12.60 kW - Vertical - Rack-mountable

Tripp LiteSKU: PL5-PDU3MV6H50-11925S-0037332163868-EN
filler

Precio:
Precio de venta$1,614.99

Descripción

Tripp Lite Metered PDU3MV6H50 45-Outlets PDU - Hubbell CS8365C - 9 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 12.60 kW - Vertical - Rack-mountable

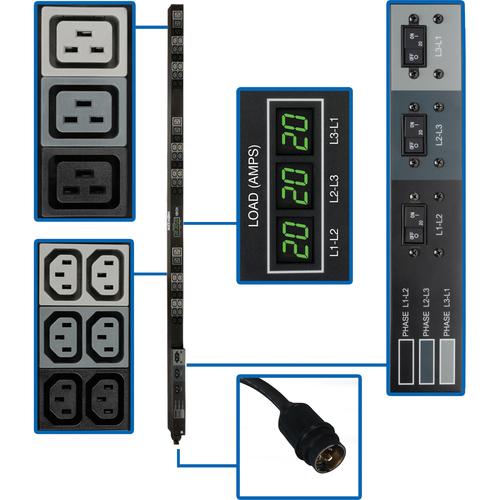

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Features
  • Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports load current per-phase via set of 3 built-in current meters
  • Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
  • 45 208V outlets total (36 C13, 9 C19)
  • Toolless button-mount installation; cord retention brackets included
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Limited Warranty 2 Year
Input Voltage 230 V AC
Output Voltage 208 V AC
Power Rating (Watt) 12.60 kW
Package Contents
  • Metered PDU3MV6H50 45-Outlets PDU
  • Cord Retention Brackets
  • Rack Mounting Brackets
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
Weight (Approximate) 6.58 kg
Mount Type Rack-mountable
Height 70" (1778 mm)
Width 2.65" (67.31 mm)
Depth 2.20" (55.88 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type Hubbell CS8365C
Receptacle Type IEC 60320 C13
IEC 60320 C19
Receptacle Detail 36 x IEC 60320 C13
9 x IEC 60320 C19
Product Type PDU
Manufacturer Part Number PDU3MV6H50
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3MV6H50
Product Name Metered PDU3MV6H50 45-Outlets PDU
Product Series Metered
Brand Name Tripp Lite
